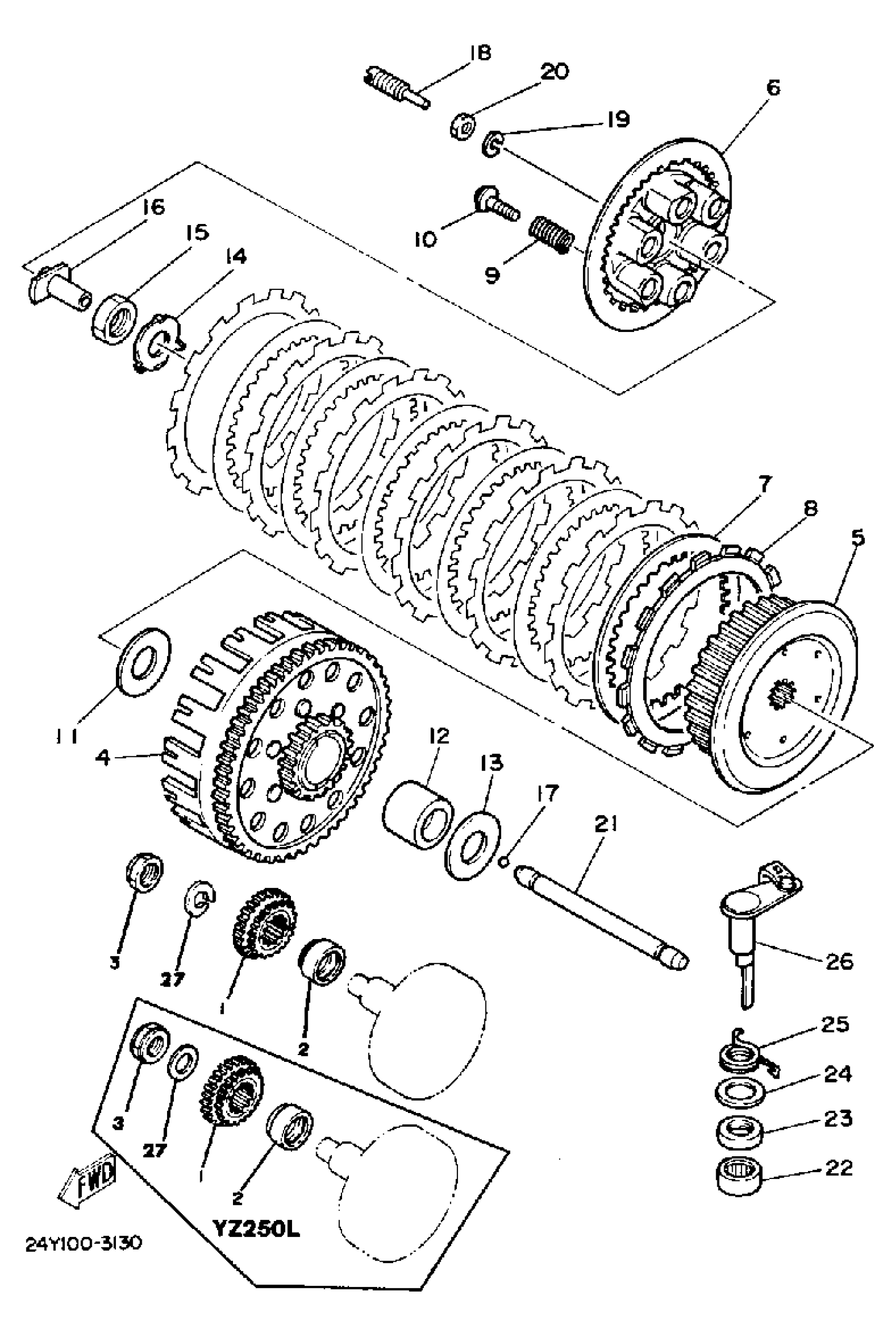

Yamaha YZ250K (YZ250K_L) 1983 CLUTCH YZ250K L Diagram

#

Description
Price

1

PRIMARY DRIVEN GEAR ASSEMBLY

24Y-16110-00-00

Unavailable

2

COLLAR

90387-252F6-00

Unavailable

3

NUT

90170-18089-00

Unavailable

3

NUT, SELF-LOCKING

90185-18126-00

Unavailable

4

PRIMARY DRIVEN GEAR COMP

39X-16150-00-00

Unavailable

5

BOSS, CLUTCH

23X-16371-00-00

Unavailable

6

PLATE, PRESSURE 1

23X-16351-00-00

Unavailable

7

PLATE, CLUTCH 2

168-16325-10-00

$14.49

8

PLATE, FRICTION

5X5-16321-00-00

$32.99

9

SPRING COMPRESSION168163330000

90501-23138-00

Unavailable

10

SCREW, WITH WASHER (1W4)

90159-06016-00

$8.49

11

PLATE, THRUST

2K7-16154-00-00

$20.99

12

SPACER 1

2K7-16181-00-00

Unavailable

13

PLATE, THRUST

2K7-16154-00-00

$20.99

14

WASHER, LOCK (26J)

90215-20212-00

Unavailable

15

NUT (3R4)

90170-20255-00

Unavailable

16

ROD, PUSH 1

23X-16356-00-00

Unavailable

17

BALL (1M1)

93515-32029-00

Unavailable

18

SCREW, SPECIAL SHAPE

90149-06178-00

Unavailable

19

WASHER, SPRING

92995-06100-00

Unavailable

20

NUT, HEXAGON

95380-06600-00

Unavailable

21

ROD, PUSH 2

2K7-16357-01-00

Unavailable

22

BRG,CYL-CAL ROLLER 12G KY

93315-21721-00

Unavailable

23

OIL SEAL (15A)

93102-17263-00

Unavailable

24

WASHER PLATE 168217580000

90201-18262-00

Unavailable

25

SPRING, TORSION

90508-14423-00

Unavailable

26

PUSH LEVER ASSEMBLY

4V4-16380-00-00

Unavailable

27

WASHER, PLATE(39X)

90201-186H3-00

Unavailable

27

WASHER(N15)

92907-18100-00

Unavailable
