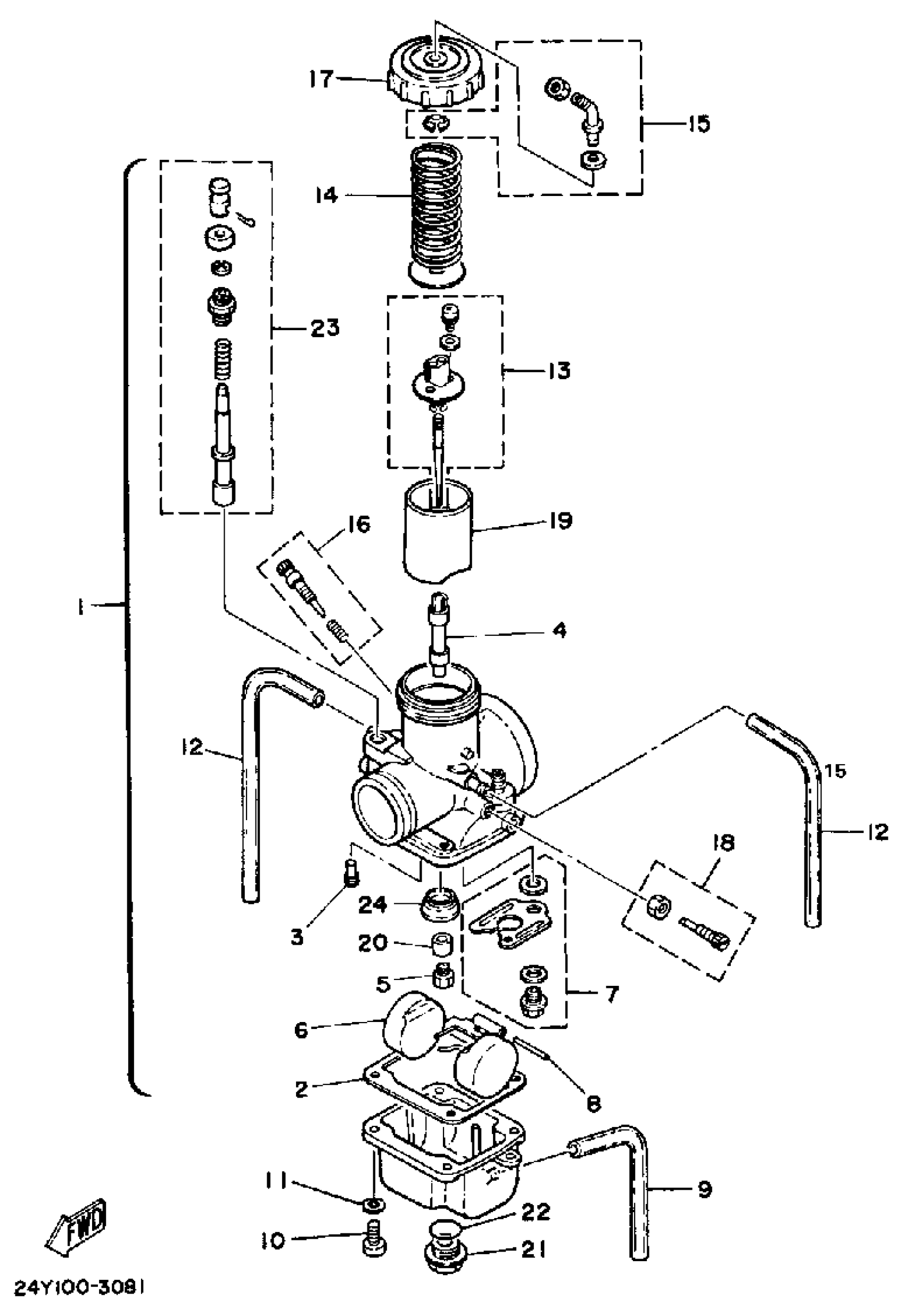

Yamaha YZ250K (YZ250K_L) 1983 CARBURETOR YZ250K L Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

(24Y-14101-00-00)

Unavailable

1

CARBURETOR ASSEMBLY 1

43N-14101-00-00

Unavailable

2

GASKET, FLOAT CHAMBER BODY

363-14184-00-00

$25.99

3

JET, PILOT (# 50)

193-14142-50-00

$8.99

3

. JET, PILOT #60

193-14142-60-00

Unavailable

4

. NOZZLE, MAIN

510-14141-46-00

Unavailable

5

JET, MAIN #260

137-14143-52-00

Unavailable

5

JET, MAIN #290

137-14143-58-A1

Unavailable

6

FLOAT

2N7-14185-00-00

$85.99

7

NEEDLE VALVE SET

23X-14107-35-00

$45.99

8

PIN, FLOAT

537-14186-00-00

$7.99

9

HOSE

88R-14987-00-00

Unavailable

10

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

11

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

12

HOSE

89A-14987-00-00

$16.49

13

. NEEDLE SET

24Y-1490J-00-00

Unavailable

14

. SPRING, THROTTLE VALVE

431-14131-00-00

Unavailable

15

. CABLE ADJUST SCREW SET

23X-14106-00-00

Unavailable

16

AIR SCREW SET

23X-14104-00-00

Unavailable

17

. TOP, MIXING CHAMBER

5Y9-14158-00-00

Unavailable

18

THROTTLE SCREW SET

23X-14103-00-00

Unavailable

19

. VALVE, THROTTLE 1

2X8-14112-30-00

Unavailable

20

. SETTER, NEEDLE JET

509-14145-00-00

Unavailable

21

. PLUG, SCREW

510-14115-00-00

Unavailable

22

O-RING (541)

558-14147-00-00

Unavailable

23

. STARTER SET

23X-1410A-00-00

Unavailable

23

. STARTER SET

24X-1410A-00-00

Unavailable

24

. WASHER, MAIN JET

5X5-14153-00-00

Unavailable
