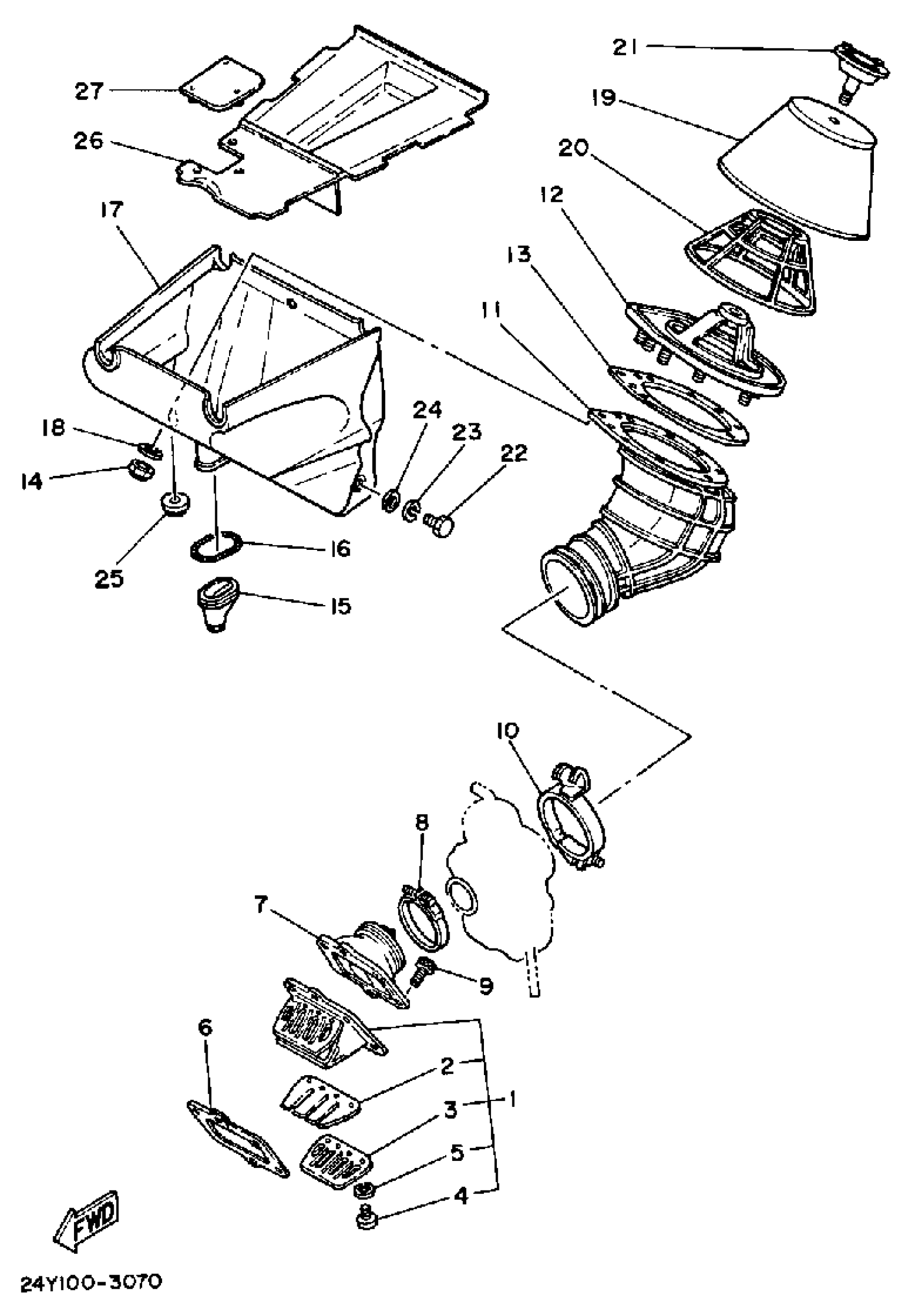

Yamaha YZ250K (YZ250K_L) 1983 AIR CLEANER YZ250K Diagram

#

Description
Price

1

REED VALVE ASSEMBLY

24Y-13610-00-00

Unavailable

2

. REED, VALVE

24Y-13613-00-00

Unavailable

3

STOPPER, REED VALVE

(24Y-13616-00-00)

Unavailable

4

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

5

WASHER, SPRING

92990-03100-00

$8.49

6

GASKET,VALVE SEAT

24Y-13621-01-00

Unavailable

7

JOINT, CARBURETOR

24Y-13565-00-00

Unavailable

8

CLAMP, HOSE

90460-51109-00

Unavailable

9

BOLT,SOCKET

91317-06020-00

Unavailable

10

CLAMP, HOSE

90460-68231-00

Unavailable

11

JOINT, AIR CLNR 1

(24Y-14453-00-00)

Unavailable

12

HOLDER, GUIDE

23X-14459-01-00

Unavailable

13

SEAL

23X-14462-00-00

Unavailable

14

NUT, U

95617-05100-00

$9.49

15

SEAL

22W-14457-00-00

Unavailable

16

SPRING, COMPRESSION

90504-03033-00

Unavailable

17

CASE, AIR CLEANER 1

23X-14411-00-00

Unavailable

18

. WASHER, PLAIN

92990-05200-00

Unavailable

19

ELEMENT, AIR CLEANER

23X-W1442-00-00

Unavailable

20

GUIDE, ELEMENT

23X-14458-00-00

Unavailable

21

PLATE, ELEMENT FTTTING (4V2-14468-01)

4V2-14468-02-00

Unavailable

22

BOLT (661)

97013-06012-00

Unavailable

23

WASHER, SPRING

92995-06100-00

Unavailable

24

WASHER, PLAIN (646)

92990-06600-00

Unavailable

25

GROMMET

90480-13014-00

Unavailable

26

CAP, CLEANER CASE 1

23X-14412-00-00

Unavailable

27

GROMMET

23X-14435-00-00

Unavailable
