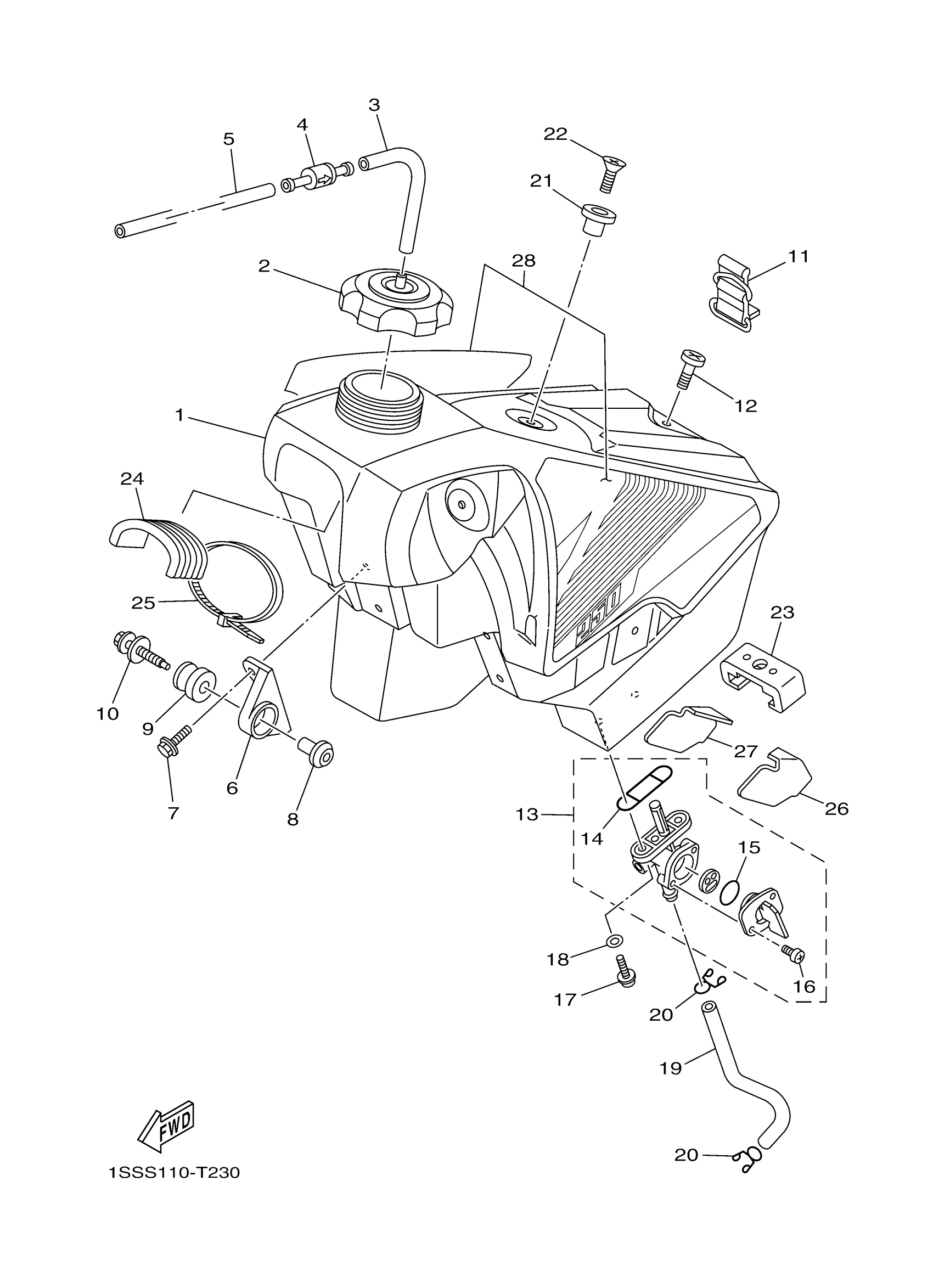

Yamaha YZ250J2 (YZ250) 1SSS 2018 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

1C3-24110-90-00

$691.99

2

CAP ASSY

5NY-24610-10-00

$61.99

3

PIPE 5

5RB-24315-00-00

$7.99

4

PIPE JOINT ASSY

3XJ-24380-00-00

$36.99

5

HOSE (L420)

90445-092K1-00

$12.49

6

HOLDER, DAMPER

5XE-24144-00-00

$23.99

7

BOLT, FLANGE

90105-06107-00

$8.49

8

WASHER, SPECIAL

5NY-24186-00-00

$20.99

9

GROMMET(4AA)

90480-18549-00

$10.49

10

BOLT 1

5XE-24176-10-00

$6.99

11

BAND, TANK FITTING 1

3SP-24173-00-00

$22.99

12

SCREW, BINDING

98907-06025-00

$8.49

13

FUEL COCK ASSY 1

3JD-24500-20-00

$56.99

14

O-RING

4X8-24512-10-00

$14.49

15

SEAL, COCK

3AJ-24534-10-00

$7.99

16

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

17

SCREW

90149-06108-00

Unavailable

18

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

19

HOSE (L210)

90445-110F5-00

Unavailable

20

CLIP

90467-100A1-00

Unavailable

21

BRACKET, SEAT

4EW-2412F-00-00

Unavailable

22

SCREW, FLAT HEAD

98702-06025-00

Unavailable

23

DAMPER, LOCATING 1

1C3-24181-00-00

Unavailable

24

DAMPER, LOCATING 2

1P8-24182-00-00

Unavailable

25

CLAMP(MF1)

90464-15152-00

Unavailable

26

DAMPER, LOCATING 3

1C3-24183-00-00

Unavailable

27

DAMPER, LOCATING 4

1C3-24184-00-00

Unavailable

28

GRAPHIC SET

1SS-24240-30-00

Unavailable
