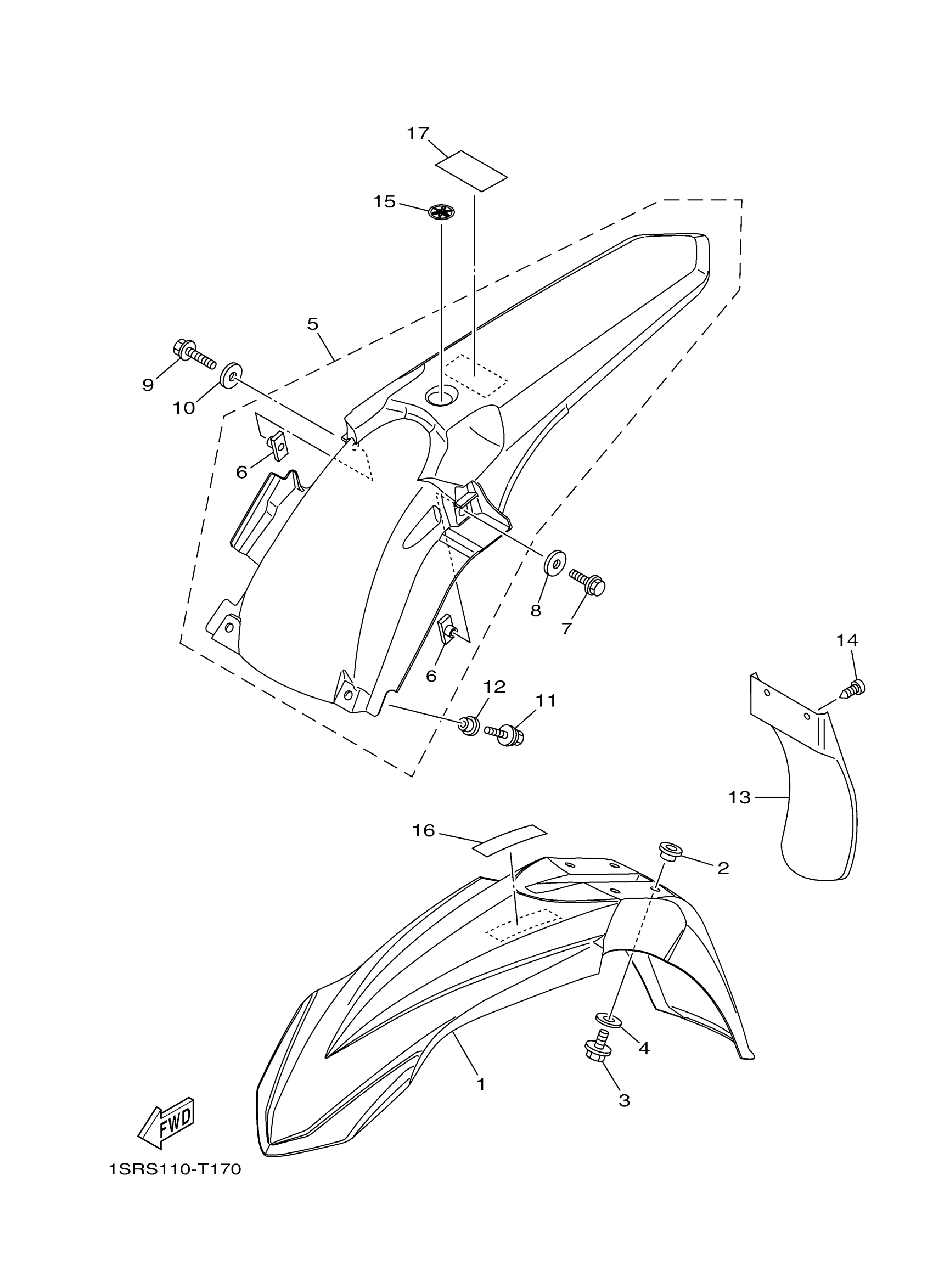

Yamaha YZ250J2 (YZ250) 1SSS 2018 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

17D-21511-50-00

$26.59

2

COLLAR

90387-06259-00

$5.76

3

BOLT, FLANGE

90105-06127-00

$5.75

4

WASHER, PLATE

90201-06108-00

Unavailable

5

REAR FENDER COMP.

1SS-21610-00-00

$32.67

6

NUT, REAR FENDER

5XE-21635-10-00

$11.84

7

BOLT, FLANGE

90105-06100-00

$5.20

8

WASHER, PLATE

90201-06032-00

$5.76

9

BOLT, FLANGE

90105-06102-00

$3.05

10

WASHER, PLATE

90201-06033-00

$2.56

11

BOLT, WITH WASHER

90119-06149-00

$5.75

12

COLLAR

90387-06009-00

$7.37

13

GUARD, FLAP

5TA-21642-00-00

$33.43

14

SCREW, TAPPING

97702-60016-00

$1.15

15

TUNING FORK MARK

5FK-2175C-31-00

$3.38

16

LABEL, CAUTION

3XJ-2415E-A1-00

Unavailable

17

LABEL, CAUTION

5PA-2118K-01-00

Unavailable
