1997 Yamaha Competition (YZ250J1) Starter Diagram

← All diagrams

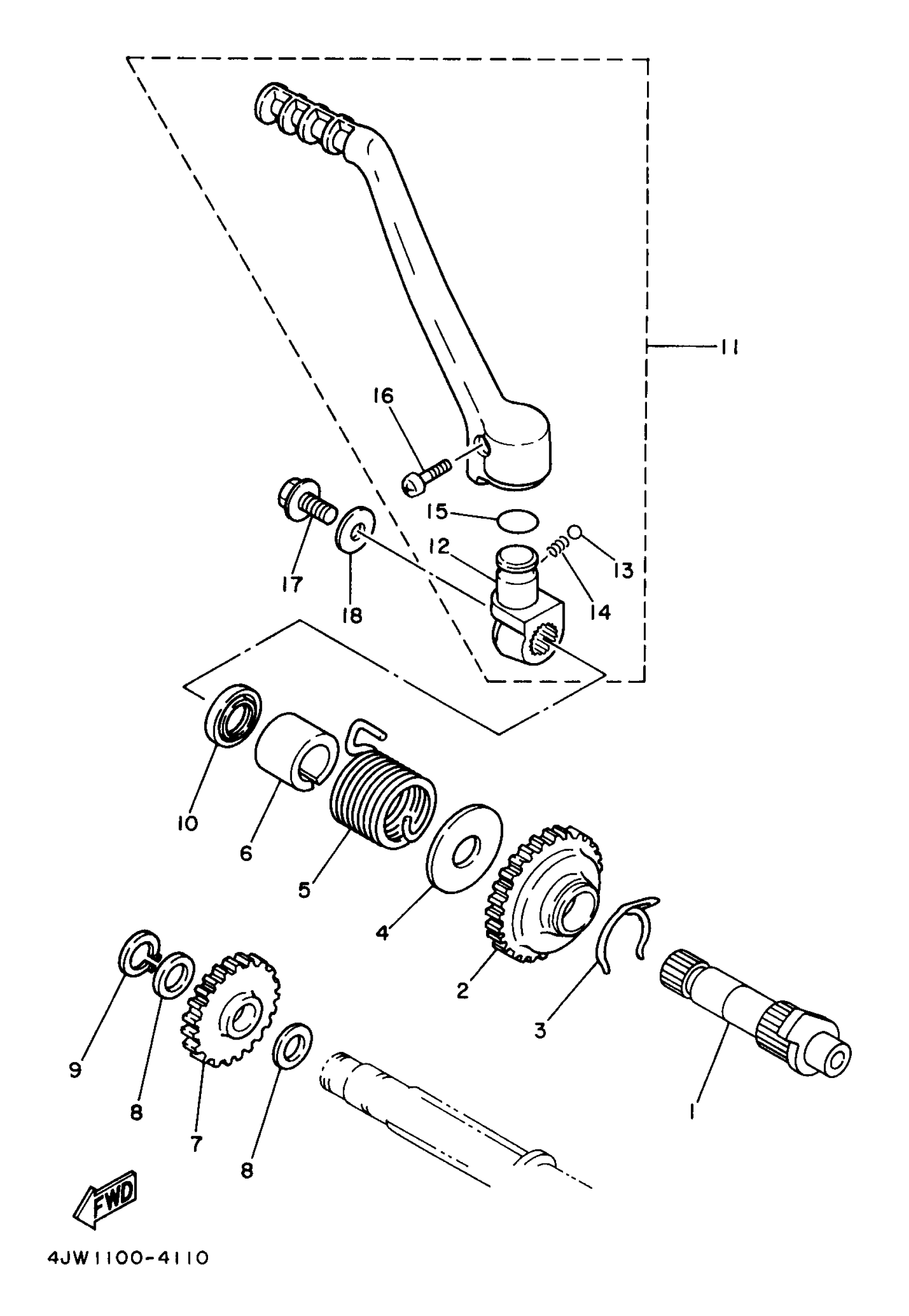

Find the part on the Starter diagram for your 1997 Yamaha Competition (YZ250J1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Yamaha Competition (YZ250J1) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK AXLE ASY

4JW-15660-00-00

1
Out of stock

2

GEAR, KICK

3R4-15641-00-00

1
Out of stock

3

CLIP 315156870000

90468-26048-00

1
Out of stock

4

WASHER, PLATE

90201-20358-00

1
Out of stock

5

SPRING, TORSION(2VM)

90508-30743-00

1

$16.62

In stock

6

GUIDE, SPRING

2VM-15664-00-00

1
Out of stock

7

GEAR, KICK IDLE (23T)

38V-15651-00-00

1
Out of stock

8

WASHER, PLATE (525)

90201-17545-00

1

$6.68

In stock

9

CIRCLIP(1EY)

99009-17400-00

1
Out of stock

10

OIL SEAL,SD-TYPE

93102-20309-00

1

$8.77

In stock

11

KICK CRANK ASSY

4JW-15620-00-00

1

$228.69

In stock

12

BOSS,KICK CRANK

3SP-15621-02-00

1
Out of stock

13

BALL

93501-04011-00

1
Out of stock

14

SPRING, COMPRESSION (23X)

90501-13720-00

1

$6.68

In stock

15

O-RING

93210-19216-00

—
Out of stock

16

SCREW, COUNTERSUNK (5Y1)

90152-06010-00

—
Out of stock

17

BOLT, WASHER BASED(3JP)

90105-081A1-00

—

$6.89

In stock

18

WASHER, PLATE (8L8)

90201-087A9-00

—

$3.74

In stock
