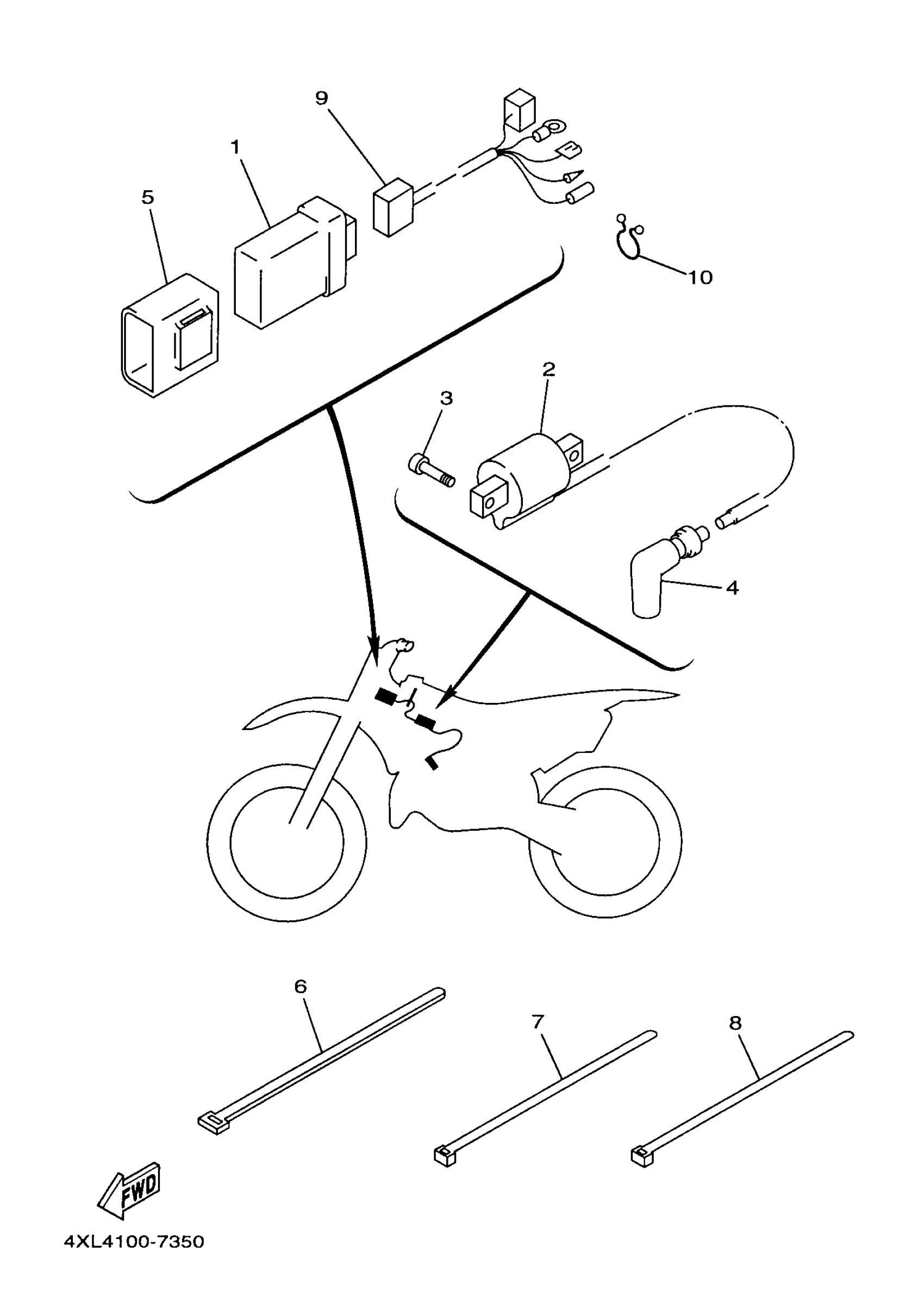

Find the part on the Electrical 1 diagram for your 1997 Yamaha Competition (YZ250J1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Yamaha Competition (YZ250J1) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

C.D.I. UNIT ASSEMBLY

4XL-85540-00-00

1
Out of stock

2

IGNITION COIL ASSY

4MX-82310-02-00

—
Out of stock

3

BOLT,SOCKET

91317-06016-00

1

$1.16

In stock

4

PLUG CAP ASSY

8DG-82370-00-00

1
Out of stock

5

BAND

4SS-85546-01-00

1
Out of stock

6

BAND, SWITCH CORD

25G-83936-01-00

1

$4.12

In stock

7

BAND

1UA-82591-00-00

1
Out of stock

8

CLAMP(MF1)

90464-15152-00

1

$4.37

In stock

9

WIRE, SUB LEAD

4SS-82509-00-00

—

$78.02

In stock

10

CLAMP (3Y2)

90464-16039-00

1
Out of stock
