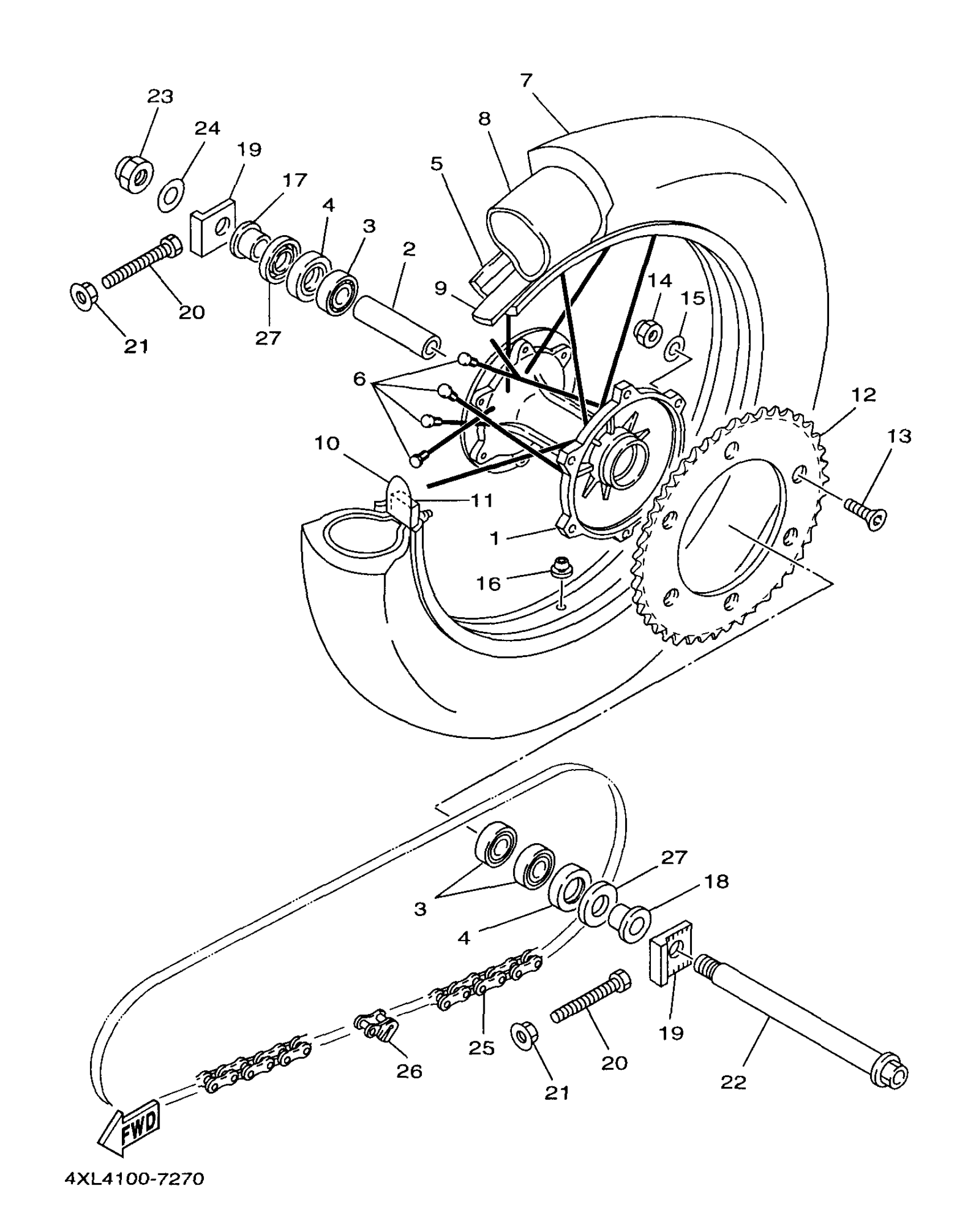

Yamaha YZ250J1 (COMPETITION) 1997 REAR WHEEL Diagram

#

Description
Price

1

HUB,REAR

4EW-25311-00-00

Unavailable

2

SPACER(1LX)

90560-20278-00

$29.99

3

BEARING(8AB)

93306-00444-00

$41.99

4

OIL SEAL(39X)

93106-28023-00

$12.49

5

RIM (2.15-19)

94421-19538-00

Unavailable

6

SPOKE SET, REAR

4XM-25304-00-00

Unavailable

7

TIRE

94111-19011-00

Unavailable

8

TUBE(3JE)

94211-19273-00

$59.99

8

TUBE(3JE)

94211-19274-00

Unavailable

9

BAND, RIM(25-19)

94311-19155-00

$16.99

9

BAND, RIM (2.15-19)

94321-19157-00

Unavailable

10

SPACER, BEAD

3JE-25394-00-00

$37.99

11

DAMPER

4XM-25364-00-00

$7.99

12

SPROCKET, DRIVEN (47T)

4SS-25447-00-00

Unavailable

12

SPROCKET, DRIVEN (48T)

4SS-25448-00-00

Unavailable

12

SPROCKET, DRIVEN (49T)

4SS-25449-00-00

Unavailable

12

SPROCKET, DRIVEN (50T)

4SS-25450-00-00

Unavailable

12

SPROCKET, DRIVEN (51T)

4SS-25451-00-00

Unavailable

12

SPROCKET, DRIVEN (52T)

4SS-25452-00-00

Unavailable

13

BOLT(3RB)

90109-081G1-00

Unavailable

14

NUT, SELF-LOCKING

90185-08169-00

Unavailable

15

WASHER (853)

90201-08326-00

Unavailable

16

GROMMET (397)

90480-10068-00

Unavailable

17

COLLAR

90387-2000B-00

Unavailable

18

COLLAR

90387-2000C-00

Unavailable

19

PULLER, CHAIN 1

3SP-25388-00-00

Unavailable

20

BOLT(4SR)

90101-08777-00

Unavailable

21

NUT, FLANGE(JN5)

95707-08500-00

Unavailable

22

AXLE, WHEEL

3JD-25381-01-00

Unavailable

23

NUT, SELF-LOCKING

90185-18009-00

Unavailable

24

WASHER(4PE)

92907-18600-00

Unavailable

25

CHAIN

9Y581-92113-00

Unavailable

26

JOINT, CHAIN

94681-68001-00

Unavailable

27

COVER, HUB DUST

4V4-25367-00-00

Unavailable
