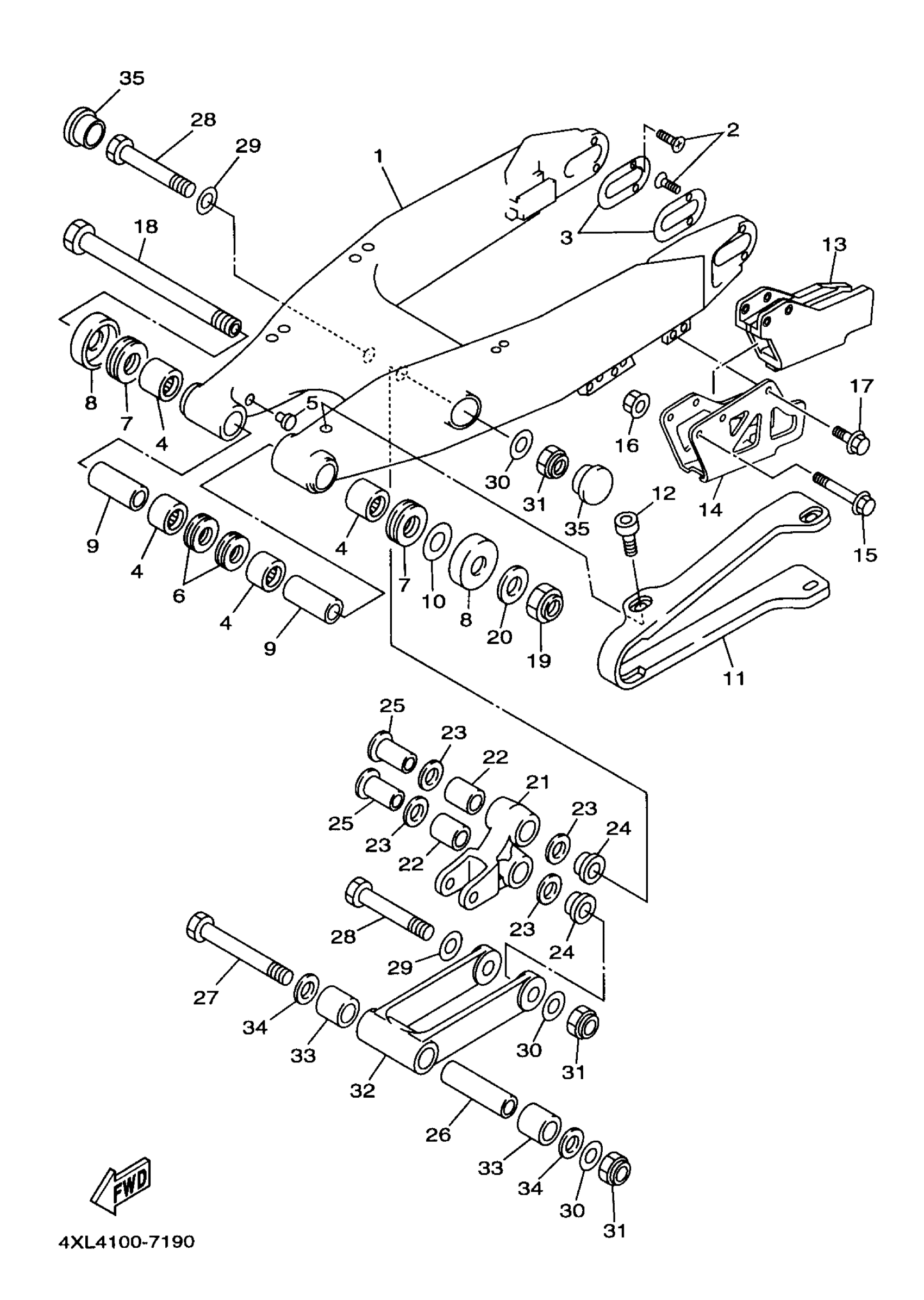

Yamaha YZ250J1 (COMPETITION) 1997 REAR ARM Diagram

#

Description
Price

1

REAR ARM COMP.

5BE-22110-00-00

Unavailable

2

SCREW, FLAT

98707-04010-00

$8.49

3

PATCH

4SS-22355-00-00

Unavailable

4

BEARING, CYLINDRICAL(2VM)

93317-22262-00

$38.99

5

PLUG(55K)

90338-16148-00

$11.49

6

OIL SEAL (23X)

93106-22019-00

$11.49

7

BEARING, THRUST(4EW)

93342-22215-00

$39.99

8

COVER, THRUST 2

4EW-22129-00-00

$27.99

9

BUSH, SOLID(1LV)

90380-16158-00

$31.99

10

SHIM,REAR ARM

240-22127-00-00

$6.99

11

SEAL, GUARD

4EW-22151-20-00

$95.99

12

BOLT,HEX. SOCKET BUTTON

90111-05059-00

$2.12

13

SUPPORT, CHAIN

4XM-22199-00-00

$99.99

14

COVER, THRUST 1

4XM-22128-00-00

Unavailable

15

BOLT, WASHER BASED(4KG)

90105-06798-00

$7.49

16

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

17

BOLT, FLANGE(4MY)

95027-06010-00

Unavailable

18

SHAFT, PIVOT

1LX-22141-00-00

Unavailable

19

NUT, SELF-LOCKING

90185-16002-00

Unavailable

20

WASHER, PLATE(33Y)

90201-164H4-00

Unavailable

21

ARM, RELAY

4SS-2217A-00-00

Unavailable

22

BEARING, CYLINDRICAL(4BF)

93315-32056-00

Unavailable

23

OIL SEAL

93109-20076-00

Unavailable

24

COLLAR(1LV)

90387-164N2-00

Unavailable

25

COLLAR

90387-164N3-00

Unavailable

26

COLLAR

90387-167Y9-00

Unavailable

27

BOLT

90109-147F2-00

Unavailable

28

BOLT

90109-142F4-00

Unavailable

29

WASHER, PLATE(33Y)

90201-164H4-00

Unavailable

30

WASHER PLATE (3L6)

90201-14740-00

Unavailable

31

NUT, SELF-LOCKING (1J7)

90185-14070-00

Unavailable

32

ROD, CONNECTING 1

4SS-2217F-00-00

Unavailable

33

BEARING, CYLINDRICAL(4BF)

93315-32056-00

Unavailable

34

OIL SEAL

93109-20076-00

Unavailable

35

COVER

1HX-2135F-10-00

Unavailable
