1997 Yamaha Competition (YZ250J1) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1997 Yamaha Competition (YZ250J1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

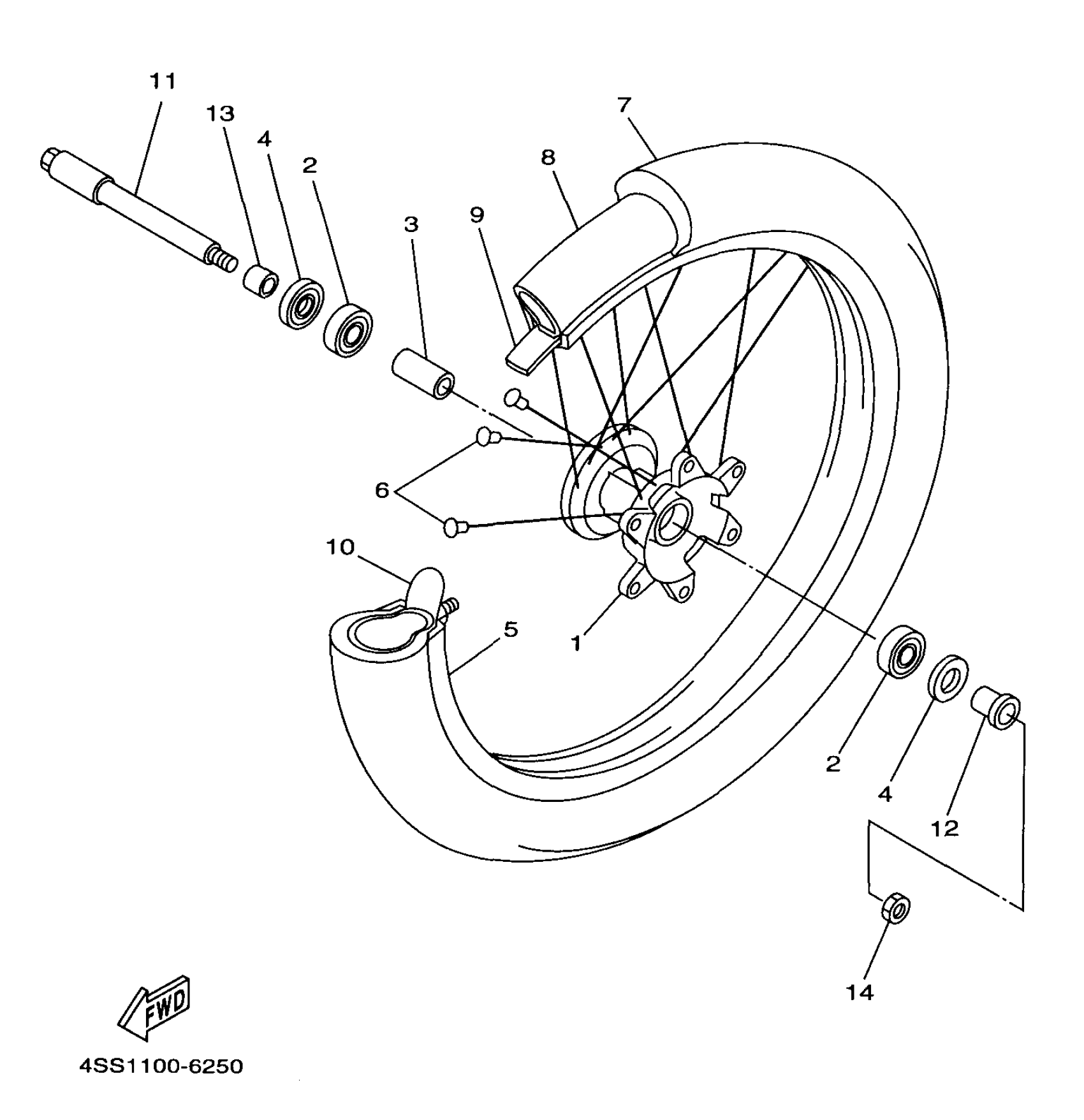

1997 Yamaha Competition (YZ250J1) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

4SS-25111-01-00

1
Out of stock

2

BEARING(2JN)

93306-90403-00

1

$38.65

In stock

3

COLLAR

90387-2007U-00

1
Out of stock

4

OIL SEAL(7EG)

93102-25360-00

—

$12.20

In stock

5

RIM (1.60-21)

94416-21509-00

1
Out of stock

6

SPOKE SET, FRONT

4DA-25104-00-00

1
Out of stock

7

TIRE

94108-21012-00

1

$206.83

In stock

8

TUBE 90190-21

94209-21229-00

—

$34.40

In stock

8

TUBE, FRONT (2A6)

94227-21123-00

1

$43.59

In stock

9

BAND, RIM (2A6)

94330-21084-00

1

$13.89

In stock

9

BAND, RIM (2A6)

94330-21084-00

1

$13.89

In stock

10

SPACER, BEAD

5X2-25394-00-00

1

$42.62

In stock

11

AXLE, WHEEL

4SS-25181-00-00

1
Out of stock

12

COLLAR

90387-2007T-00

1
Out of stock

13

. COLLAR

90387-2007S-00

1
Out of stock

14

NUT(4SR)

90179-16672-00

—
Out of stock
