1997 Yamaha Competition (YZ250J1) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1997 Yamaha Competition (YZ250J1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

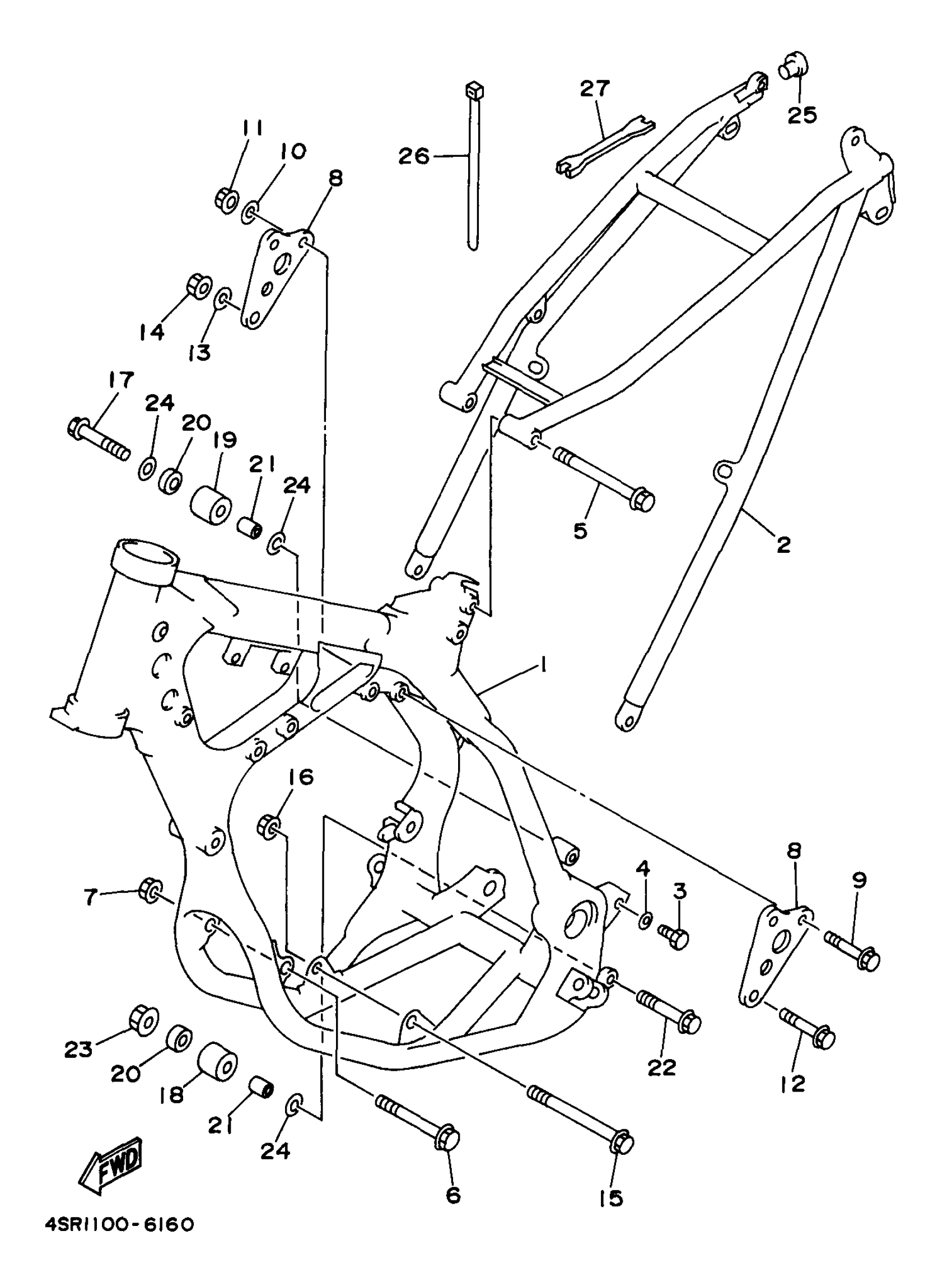

1997 Yamaha Competition (YZ250J1) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FRAME COMP.

4XL-21101-00-2F

1
Out of stock

2

FRAME,REAR

4XM-21190-00-2F

1
Out of stock

3

BOLT(4EW)

90106-08051-00

—

$19.88

In stock

4

WASHER, PLATE (7R4)

90201-080E2-00

1

$2.89

In stock

5

BOLT (1W1)

90105-08099-00

1

$5.34

In stock

6

BOLT, FLANGE(4MY)

95817-10100-00

1
Out of stock

7

NUT, SELF-LOCKING(JN5)

95607-10200-00

1

$3.32

In stock

8

BRACKET, REAR UPPER 1

4XL-21425-00-00

1
Out of stock

9

BOLT, FLANGE

95817-08050-00

1

$3.15

In stock

10

WASHER, PLATE (12X)

90201-087F0-00

1

$3.71

In stock

11

NUT, SELF-LOCKING

90185-08169-00

1

$7.09

In stock

12

BOLT, FLANGE(8AB)

95817-10050-00

1

$5.03

In stock

13

WASHER, PLAIN(3BM)

92907-10200-00

1
Out of stock

14

NUT, SELF-LOCKING(JN5)

95607-10200-00

1

$3.32

In stock

15

BOLT, WASHER BASED(3RB)

90105-10733-00

1
Out of stock

16

NUT, SELF-LOCKING(JN5)

95607-10200-00

1

$3.32

In stock

17

BOLT, FLANGE(4MY)

95027-08040-00

—
Out of stock

18

TENSIONER

3JD-22178-20-00

—

$37.74

In stock

19

TENSIONER

4EW-22178-01-00

—
Out of stock

20

BEARING (3X3)

93300-60804-00

—

$11.18

In stock

21

COLLAR(1NL)

90387-086N4-00

—

$8.31

In stock

22

BOLT, FLANGE

95027-08065-00

—
Out of stock

23

NUT, FLANGE(JN5)

95707-08500-00

—

$1.49

In stock

24

WASHER, PLATE(3XP)

90201-086P8-00

—

$4.35

In stock

25

PLUG(55K)

90338-16148-00

—

$9.89

In stock

26

CLAMP(MF1)

90464-15152-00

—

$4.37

In stock

27

WRENCH, HEXAGON

56A-28166-00-00

1
Out of stock
