Description

Price

1

PISTON (STD)

4SR-11631-00-A0

Unavailable

1

PISTON, (STD)

4SR-11631-00-B0

Unavailable

1

PISTON (STD)

4SR-11631-00-C0

Unavailable

1

PISTON (STD)

4SR-11631-00-D0

Unavailable

2

PISTON RING SET (STD)

4JX-11603-00-00

$83.99

3

PIN, PISTON

2VM-11633-01-00

Unavailable

4

CIRCLIP (2F1)

93450-19052-00

$7.49

5

BEARING,CON-ROD SMALLEND(2X5)

93310-418E9-00

$48.99

6

CRANKSHAFT ASSY

5DJ-11400-00-00

$619.99

7

CRANKSHAFT

4SR-11410-10-00

Unavailable

8

. CRANKSHAFT

4SR-11420-00-00

Unavailable

9

PIN, CRANK 1

4SR-11681-00-00

Unavailable

10

ROD, CONNECTING

5X5-11651-03-00

Unavailable

11

BEARING, CYLINDRICAL(4JW)

93310-425P2-00

Unavailable

12

WASHER 275116850000

90209-25085-00

$12.49

13

BEARING(4GY)

93306-37804-00

Unavailable

14

OIL SEAL(1LX)

93102-22363-00

Unavailable

15

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable

16

BEARING(4GY)

93306-37804-00

Unavailable

17

OIL SEAL (434)

93103-40091-00

Unavailable

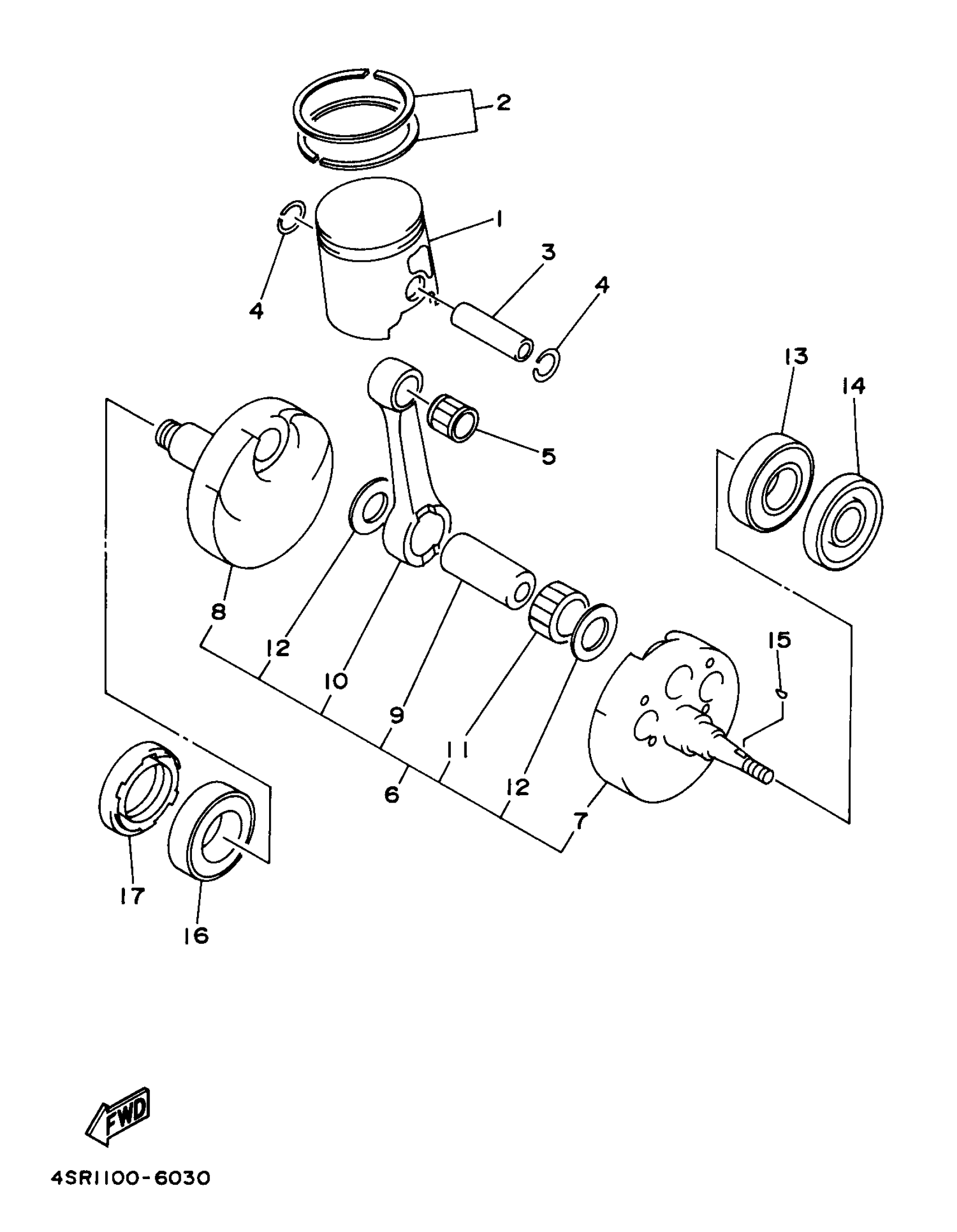

Yamaha YZ250J1 (COMPETITION) 1997 CRANKSHAFT - PISTON Diagram

PISTON (STD)

PISTON, (STD)

PISTON (STD)

PISTON (STD)

PISTON RING SET (STD)

PIN, PISTON

CIRCLIP (2F1)

BEARING,CON-ROD SMALLEND(2X5)

CRANKSHAFT ASSY

CRANKSHAFT

. CRANKSHAFT

PIN, CRANK 1

ROD, CONNECTING

BEARING, CYLINDRICAL(4JW)

WASHER 275116850000

BEARING(4GY)

OIL SEAL(1LX)

KEY WOODRUFF 146115450000

BEARING(4GY)

OIL SEAL (434)
