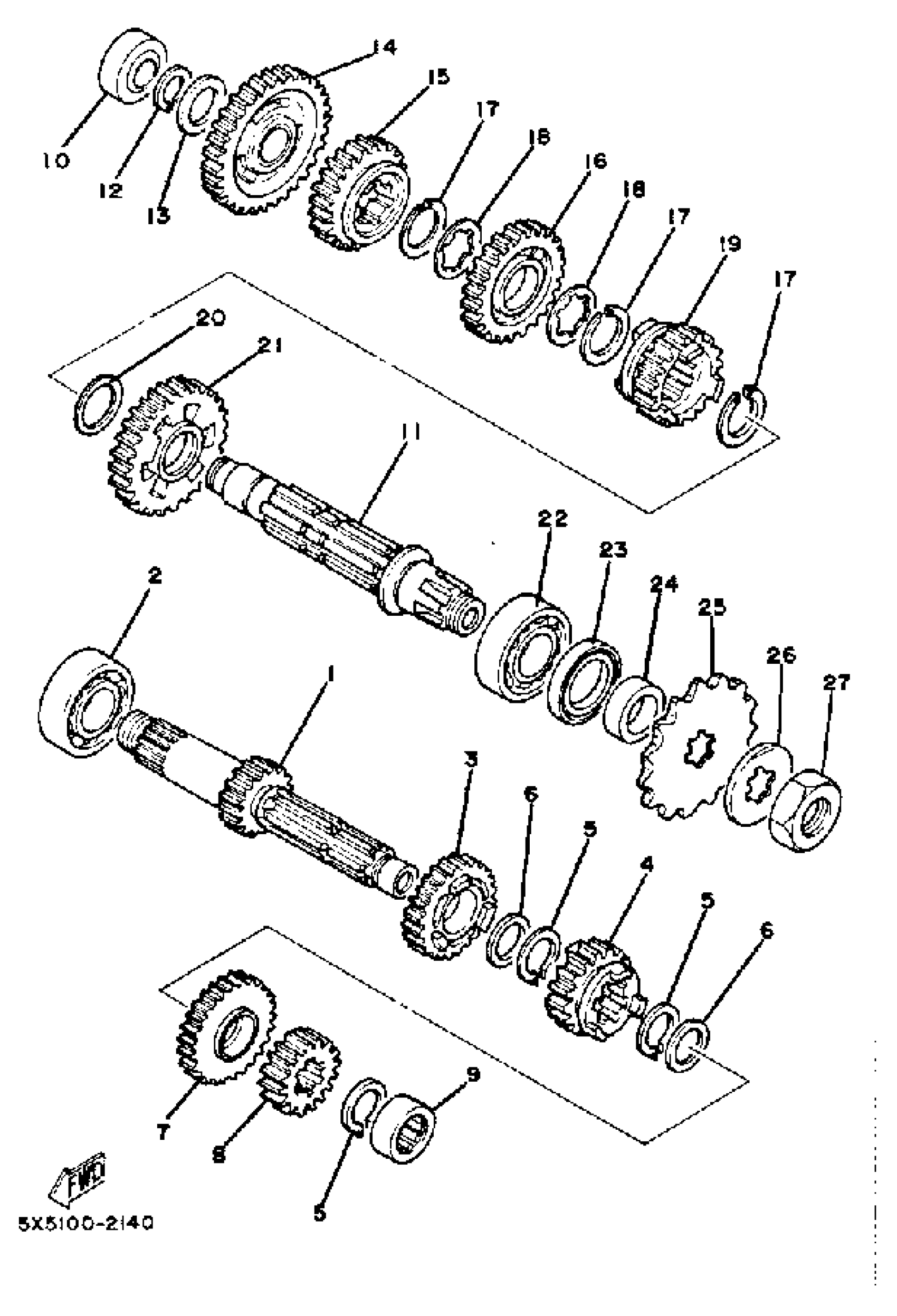

Yamaha YZ250J (YZ250J) 1982 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN (14T)

5X5-17411-00-00

Unavailable

2

BEARING (3R5)

93306-20540-00

$57.99

3

GEAR, 4TH PINION

5X5-17141-00-00

Unavailable

4

GEAR,3RD PINION

2HH-17131-00-00

Unavailable

5

CIRCLIP (537)

93410-22039-00

$8.49

6

WASHER, PLATE (537)

90201-22555-00

$8.49

7

GEAR, 5TH PINION

5X5-17151-00-00

Unavailable

8

GEAR, 2ND PINION (16T)

5X5-17121-00-00

Unavailable

9

BRG,CYL-CAL ROLLER 41.5G KY

93311-41734-00

$73.99

10

BEARING (2X7)

93311-62035-00

$57.99

11

AXLE, DRIVE

5X5-17421-00-00

Unavailable

12

CIRCLIP (525)

93410-20038-00

$3.76

13

WASHER PLATE 168171160000

90201-20278-00

$10.49

14

GEAR, 1ST WHEEL (30T)

5X5-17211-00-00

Unavailable

15

GEAR, 4TH WHEEL

5X5-17241-00-00

Unavailable

16

GEAR,3RD WHEEL

5X5-17231-01-00

Unavailable

17

CIRCLIP (4L0)

93440-25084-00

Unavailable

18

WASHER 434172160000

90209-22082-00

Unavailable

19

GEAR, 5TH WHEEL

5X5-17251-00-00

Unavailable

20

WASHER, PLATE(59W)

90201-253K0-00

Unavailable

21

GEAR, 2ND WHEEL (29T)

5X5-17221-00-00

Unavailable

22

BRG,R-B 6205C4 52MM 130G KY

93306-20529-00

Unavailable

23

OIL SEAL (697)

93102-32M07-00

Unavailable

24

COLLAR (2K7)

90387-25663-00

Unavailable

25

SPROCKET, DRIVE (13T)(4RF)

93834-13206-00

Unavailable

25

SPROCKET, DRIVE

93834-14051-00

Unavailable

25

SPROCKET,DRIVE 15T(3Y11746150)

93834-15078-00

Unavailable

26

WASHER, LOCK (23X)

90215-21239-00

Unavailable

27

NUT (2K7)

90179-20255-00

Unavailable
