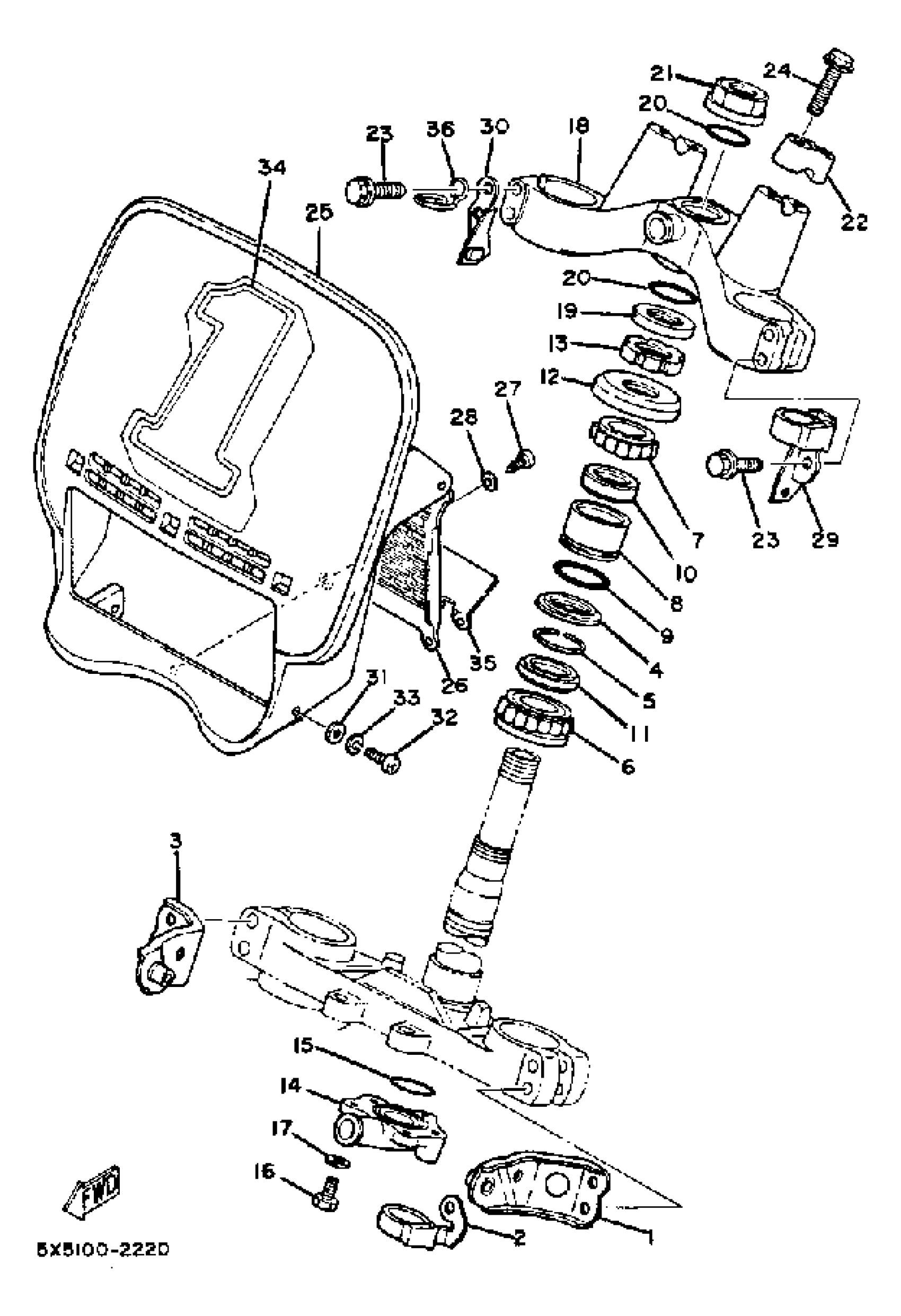

Yamaha YZ250J (YZ250J) 1982 STEERING Diagram
#
1
STAY
5X5-2317E-00-00
Unavailable
2
GUIDE, CABLE
(5X5-23389-01-00)
Unavailable
3
STAY 2
5X5-2317F-00-00
Unavailable
4
SEAL, STEERING
5X4-23462-00-00
Unavailable
5
CIRCLIP, OUTER
93440-28099-00
Unavailable
8
CYLINDER
5X4-23499-00-00
Unavailable
10
OIL SEAL, SD-TYPE
93102-28234-00
Unavailable
11
OIL SEAL, OS-TYPE
93107-30009-00
Unavailable
12
COVER, BALL RACE 2
1W1-23416-00-00
Unavailable
14
JOINT
(4V2-23491-00-00)
Unavailable
15
O-RING
93210-37M67-00
Unavailable
16
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
17
WASHER, PLAIN (646)
92990-06600-00
Unavailable
18
CROWN, HANDLE
(5X5-23435-00-98)
Unavailable
19
WASHER, PLATE
90201-237E8-00
Unavailable
20
O-RING
93210-23505-00
Unavailable
21
NUT
90179-22330-00
Unavailable
22
HOLDER, HANDLE UPPER
1E6-23441-00-00
Unavailable
23
BOLT, FLANGE
95817-08035-00
Unavailable
24
BOLT, FLANGE
95814-08040-00
Unavailable
25
PLATE, NUMBER
5X4-23485-00-00
Unavailable
26
PROTECTOR
5X4-23472-01-00
Unavailable
27
SCREW, PANHEAD TAPPING (682)
97780-50514-00
Unavailable
28
. WASHER, PLAIN
92990-05200-00
Unavailable
29
STAY, PLATE
5X5-23486-00-00
Unavailable
30
STAY, PLATE
5X5-23487-00-00
Unavailable
31
WASHER, PLATE (583 REAR FENDER
90201-06571-00
Unavailable
32
SCREW, PAN
98507-06014-00
Unavailable
33
WASHER, SPRING
92995-06100-00
Unavailable
34
EMBLEM
5X4-23395-00-00
Unavailable
35
PLATE
5X4-23774-00-00
Unavailable
36
HOLDER, CABLE
4H7-23317-00-00
Unavailable
