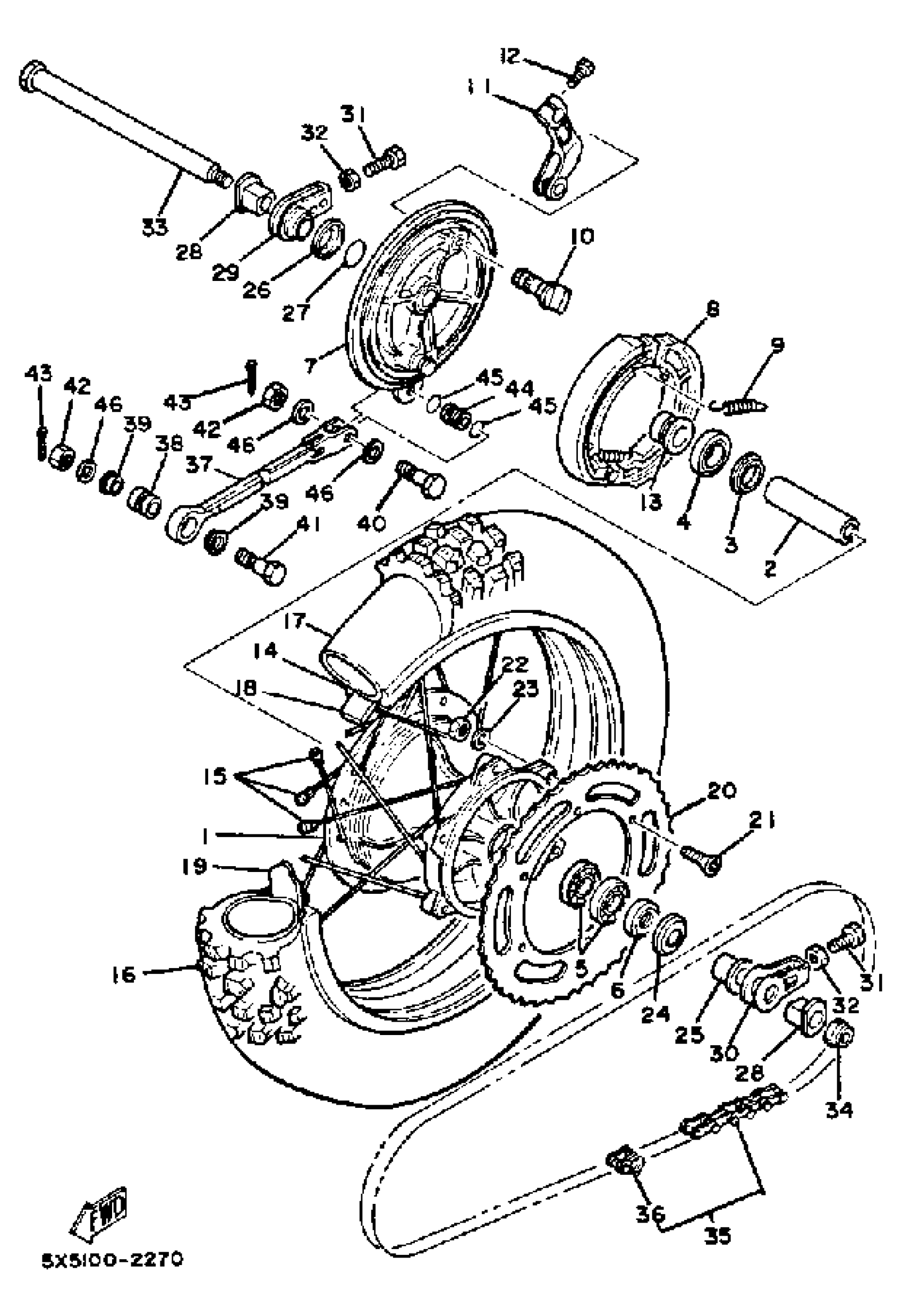

Yamaha YZ250J (YZ250J) 1982 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

5X5-25311-00-98

Unavailable

2

SPACER, BEARING

90560-20310-00

Unavailable

3

FLANGE, SPACER

4V4-25315-00-00

Unavailable

4

BEARING(8AB)

93306-00444-00

$41.99

5

BEARING(3BN)

93306-00438-00

$37.99

6

OIL SEAL (28X47X7-102)

93102-28022-00

$14.99

7

PLATE, BRAKE SHOE

5X5-25321-00-98

Unavailable

8

BRAKE SHOE SET-2PCS

437-W2536-00-00

Unavailable

9

SPRING (5T9)

90506-17328-00

Unavailable

10

CAMSHAFT

26A-25351-00-00

Unavailable

11

LEVER, CAMSHAFT

5X4-25355-00-00

Unavailable

12

BOLT, HEXAGON (462)

90101-06291-00

$8.49

13

COLLAR

(90387-204F5-00)

Unavailable

14

RIM 2.15X18 (2.15-18)

94421-18319-00

Unavailable

15

SPOKE SET, REAR

5X5-25304-00-00

Unavailable

16

150/80-18 M2A (TT) (94151-18684) (4.50-18-4PR)

94115-186A2-00

Unavailable

17

TUBE

94245-18125-00

Unavailable

18

BAND, RIM (2J4)

94340-18086-00

Unavailable

19

SPACER, BEAD

2X5-25394-00-00

Unavailable

20

SPROCKET, DRIVEN (45T) (39W-25445-01-00)

3R4-25445-01-XX

Unavailable

20

SPROCKET, DRIVEN 48T

3R4-25448-01-XX

Unavailable

20

SPROCKET, DRIVEN 50T

3R4-25450-01-XX

Unavailable

20

SPROCKET, DRIVEN 52T

3R4-25452-01-XX

Unavailable

21

BOLT, HEX SKT HEAD

90110-08038-00

Unavailable

22

NUT, SELF-LOCKING (3Y2)

90185-08089-00

Unavailable

23

WASHER, PLATE(3XP)

90201-086P8-00

Unavailable

24

COVER, HUB DUST

4V4-25367-00-00

Unavailable

25

COLLAR

90387-206F6-00

Unavailable

26

COVER, PLATE

5X5-25327-00-00

Unavailable

27

O-RING

93210-31MJ5-00

Unavailable

28

BUSH, SOLID

90381-20039-00

Unavailable

29

PULLER, CHAIN 2

5X5-25389-00-00

Unavailable

30

PULLER, CHAIN 1

5X6-25388-00-00

Unavailable

31

BOLT

90101-08060-00

Unavailable

32

. NUT

95380-08700-00

Unavailable

33

AXLE, WHEEL

4V4-25381-01-00

Unavailable

34

NUT, SELF-LOCKING

90185-18009-00

Unavailable

35

520 DS 110L

94585-20110-00

Unavailable

36

JOINT, CHAIN

94681-68001-00

Unavailable

37

BAR, TENSION

5X5-25371-00-00

Unavailable

38

BEARING, SPECIAL

93399-99906-00

Unavailable

39

OIL SEAL, OSO-TYPE

93108-23009-00

Unavailable

40

BOLT

90109-08370-00

Unavailable

41

BOLT, WITH HOLE

90102-08034-00

Unavailable

42

NUT, U

95617-08100-00

Unavailable

43

PIN, COTTER

91490-20025-00

Unavailable

44

COLLAR

90387-083F0-00

Unavailable

45

O-RING (648)

93210-14167-00

Unavailable

46

.. WASHER, PLATE

92990-08600-00

Unavailable
