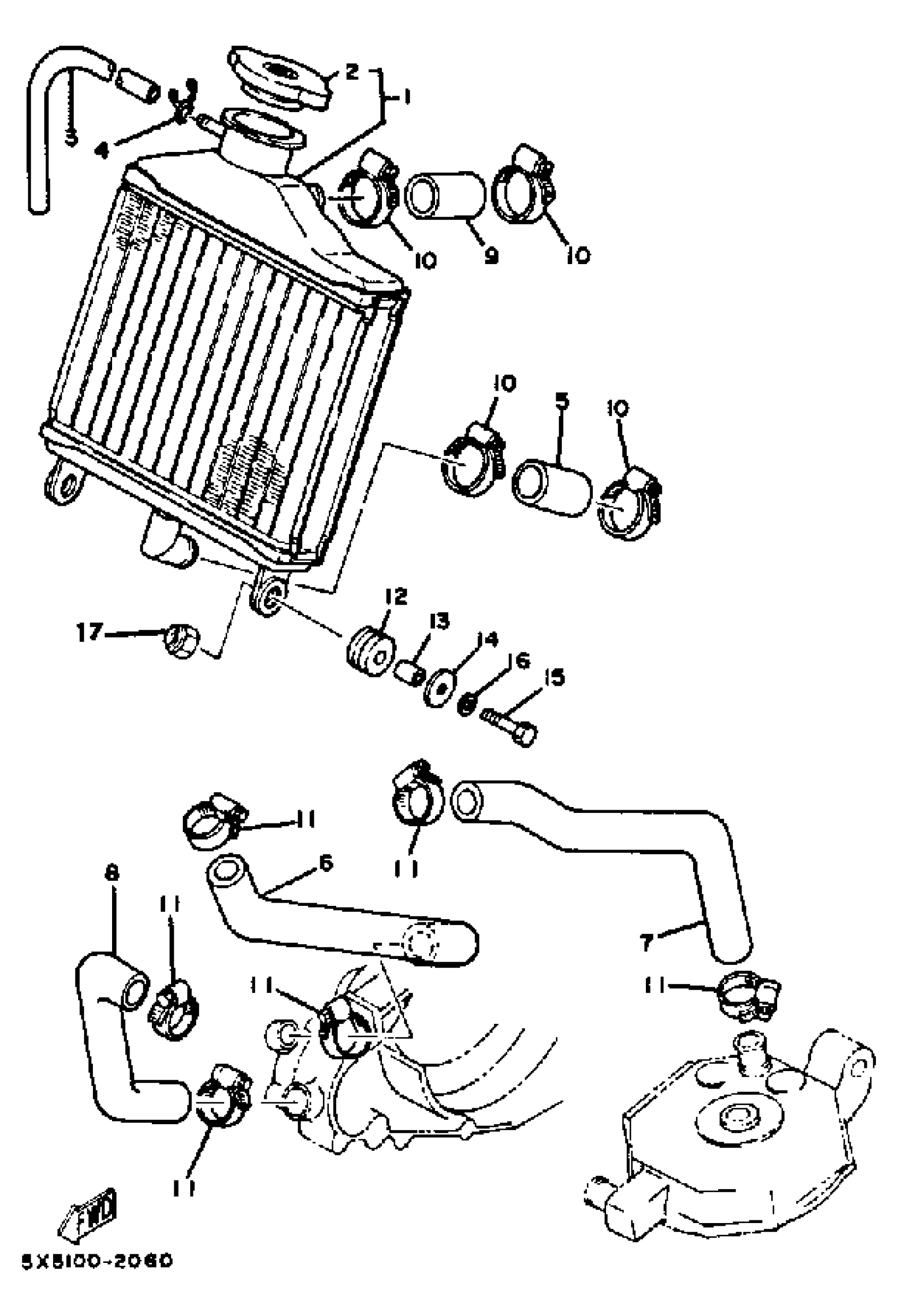

Yamaha YZ250J (YZ250J) 1982 RADIATOR - HOSE Diagram

#

Description
Price

1

RADIATOR ASSEMBLY

5X5-12460-00-00

Unavailable

2

CAP, RADIATOR

11H-12462-00-00

$101.62

3

HOSE

90446-09181-00

Unavailable

4

CLIP

90467-100A1-00

$5.96

5

PIPE 1

4V2-12481-00-00

Unavailable

6

PIPE 2

5X5-12482-00-00

Unavailable

7

PIPE 3

(5X5-12483-00-00)

Unavailable

8

PIPE 4

5X5-12484-00-00

Unavailable

9

PIPE 4

4V2-12484-00-00

Unavailable

10

CLAMP

90460-20190-00

Unavailable

11

HOSE CLAMP ASSY(4JT)

90450-28073-00

$11.02

12

GROMMET(663)

90480-15064-00

$6.39

13

COLLAR(2UJ)

90387-061V1-00

$6.03

14

WASHER, PLATE (583 FUEL TANK)

90201-06570-00

$6.62

15

BOLT, HEXAGON

97017-06030-00

$2.80

16

WASHER, PLAIN (646)

92990-06600-00

Unavailable

17

NUT, U FLANGE

95604-06200-00

Unavailable
