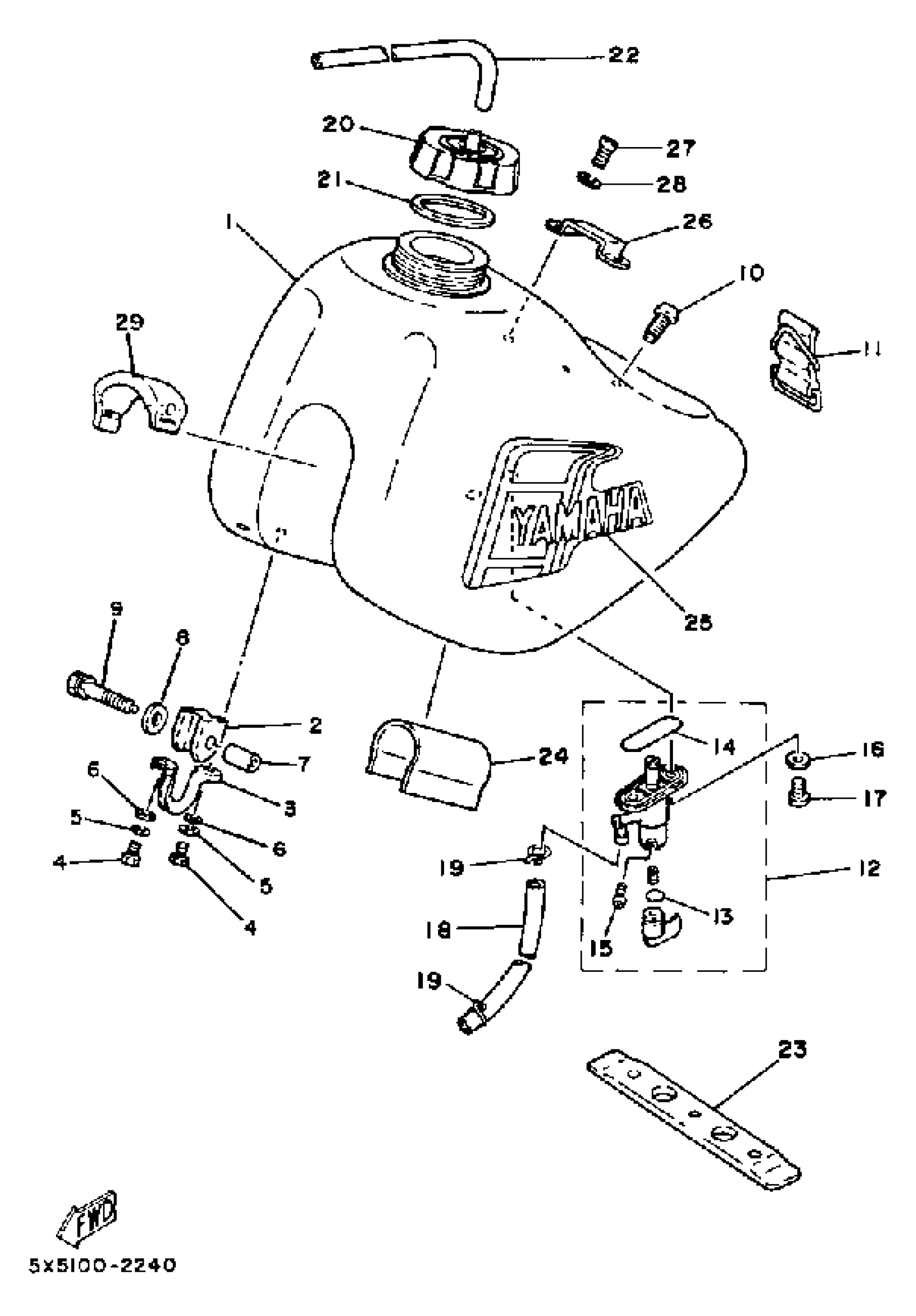

Yamaha YZ250J (YZ250J) 1982 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

(5X5-24110-00-00)

Unavailable

2

DAMPER, TANK LOCATING 2

1W1-24182-01-00

$32.99

3

HOLDER, DAMPER

1W1-24144-01-00

Unavailable

4

BOLT (661)

97013-06012-00

$5.60

5

WASHER, SPRING

92995-06100-00

Unavailable

6

WASHER, PLAIN (646)

92990-06600-00

$2.80

7

COLLAR, LEVER 1

36Y-83913-01-00

$9.99

8

WASHER, PLATE

90201-06747-00

$8.49

9

BOLT, WITH WASHER

90119-06022-00

Unavailable

10

SCREW(3JM)

90149-06306-00

$8.49

11

BAND, TNK FITTING 1

5X6-24173-00-00

Unavailable

12

FUEL COCK ASSY

2K5-24500-00-00

$86.99

13

GASKET, BODY

214-24512-00-00

$30.99

14

O-RING

1A0-24512-00-00

Unavailable

15

. SCREW, LEVER FITTING

619-24535-00-00

Unavailable

16

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

17

SCREW 256241430000

90149-06011-00

Unavailable

18

HOSE

(90445-11656-00)

Unavailable

19

CLIP

90467-100A1-00

Unavailable

20

BODY, CAP

5X7-24611-01-00

Unavailable

21

PACKING, CAP

5X7-24612-00-00

Unavailable

22

HOSE (L590)

90445-10020-00

Unavailable

23

DAMPER, LOCATING 1

3R4-24181-00-00

Unavailable

24

DAMPER, LOCATING 3

(5X4-24183-00-00)

Unavailable

25

GRAPHIC SET

(5X6-24240-09-00)

Unavailable

26

BRACKET, SEAT

5X6-2412F-00-00

Unavailable

27

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

28

WASHER, SPRING

92995-06100-00

Unavailable

29

DAMPER, LOCATING 4

(5X5-24184-00-00)

Unavailable
