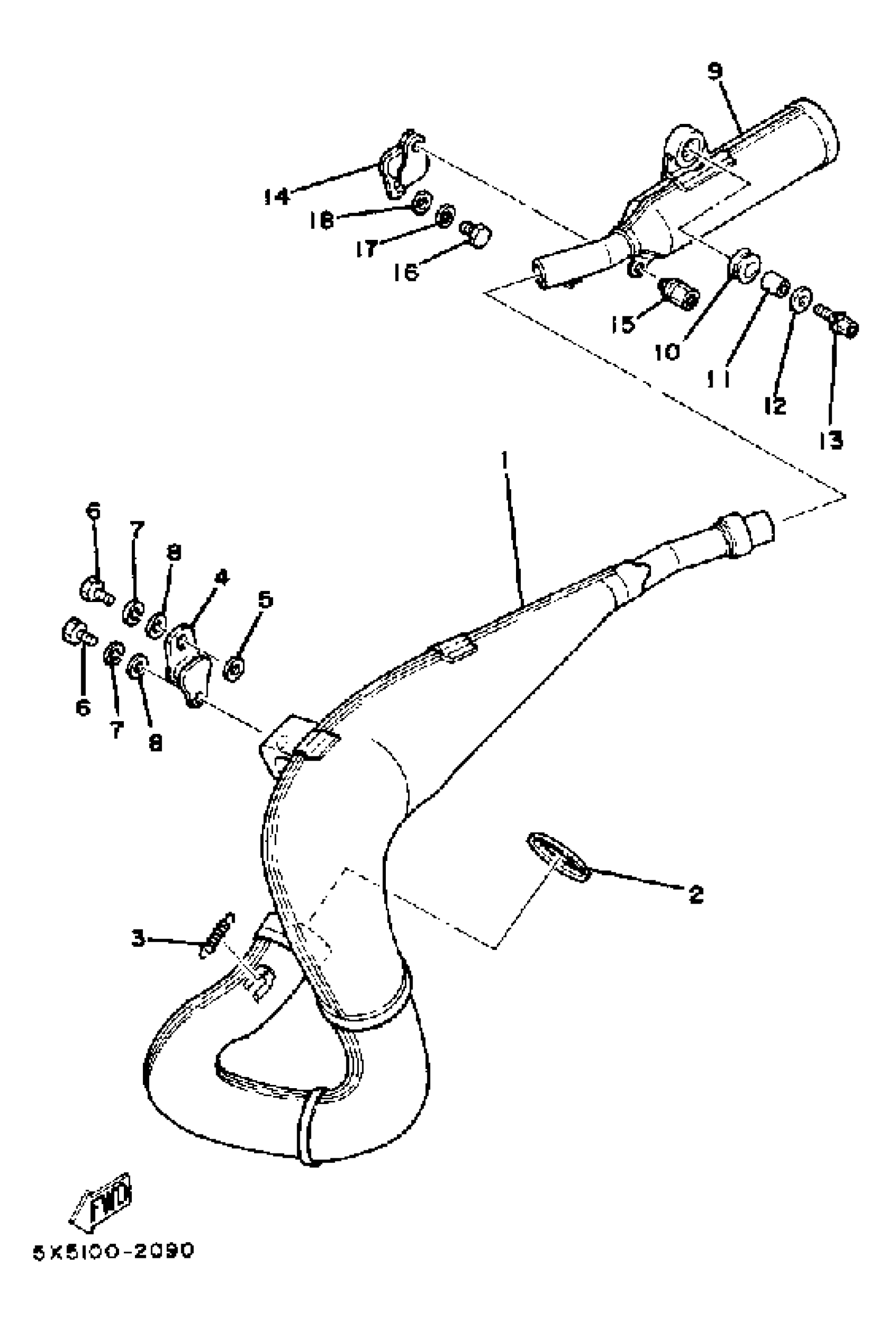

Yamaha YZ250J (YZ250J) 1982 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSEMBLY L

5X5-14610-00-00

Unavailable

2

GASKET, EXHAUST

3R4-14613-00-00

$25.62

3

SPRING, TENSION (1W4)

90507-20030-00

$11.73

4

STAY, MUFFLER 2

3R4-14781-04-00

Unavailable

5

WASHER, PLAIN

92990-08200-00

$2.36

6

BOLT(JA9)

90101-08691-00

$4.65

7

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

8

.. WASHER, PLATE

92990-08600-00

$2.17

9

SILENCER, EXHAUST

5X5-14753-10-00

Unavailable

10

DAMPER

565-14747-00-00

Unavailable

11

COLLAR (437)

90387-08258-00

$8.55

12

WASHER, PLATE (5J0)

90201-085E6-00

$5.77

13

BOLT, HEXAGON (2X4)

90109-08512-00

$8.37

14

STAY, MUFFLER 1

565-14771-01-00

$15.57

15

BOLT (3R4)

90109-06551-00

$17.03

16

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

17

WASHER, SPRING

92995-06100-00

$2.95

18

WASHER, PLAIN (646)

92990-06600-00

Unavailable
