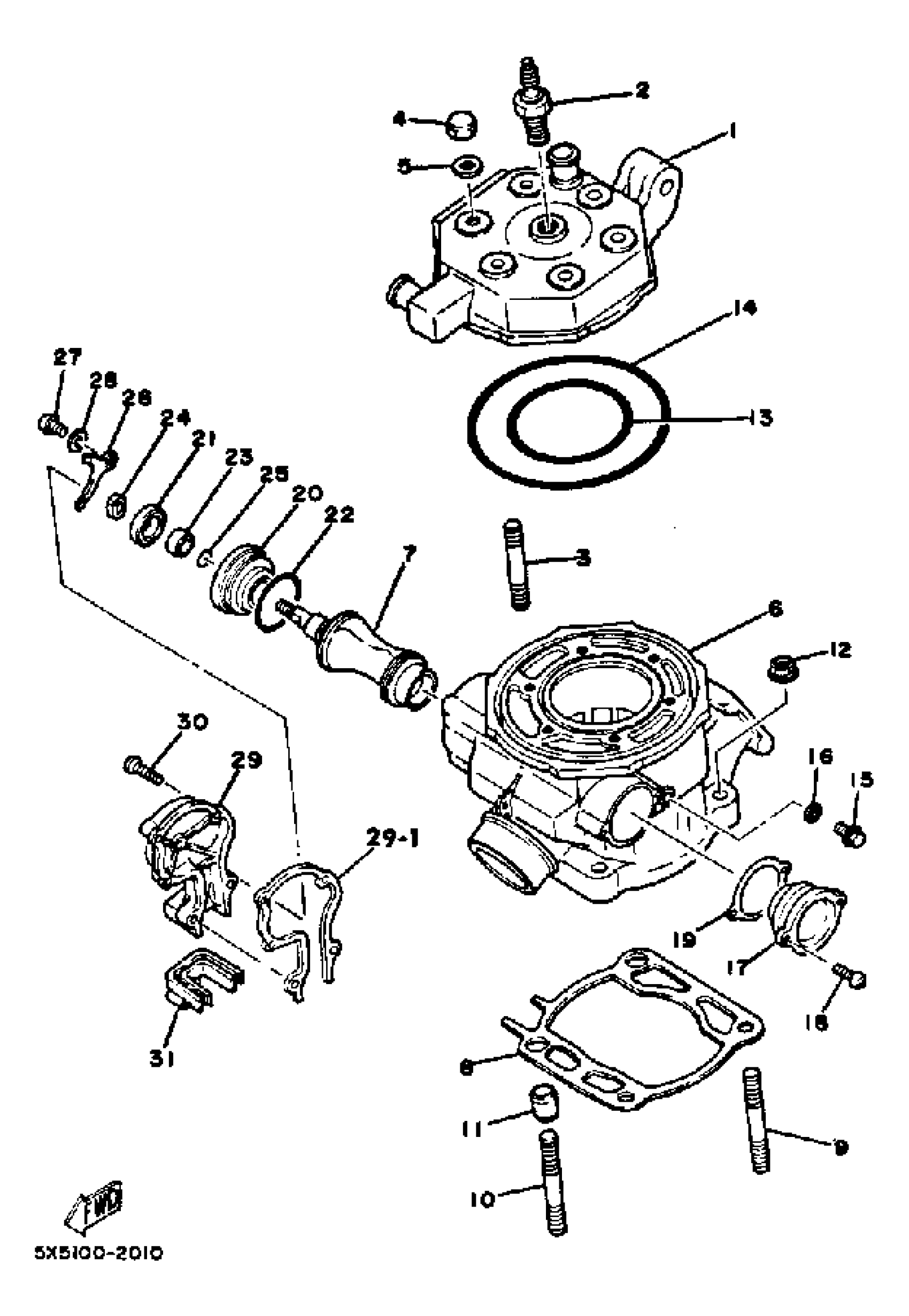

Yamaha YZ250J (YZ250J) 1982 CYLINDER Diagram
#
Description
Price
1
HEAD, CYLINDER 1
5X5-11111-00-00
Unavailable
1
GASKET,YPVS HOUSIN
5X5-11993-10-00
Unavailable
2
B8EG NGK SPLUG 4PK
B8E-G0000-00-00
Unavailable
3
BOLT, STUD
90116-08391-00
Unavailable
6
CYLINDER 1
5X5-11311-00-00
Unavailable
7
VALVE 1
5X5-1131A-00-00
Unavailable
8
GASKET, CYLINDER
39X-11351-02-00
Unavailable
9
BOLT, STUD
90116-10313-00
Unavailable
14
O-RING
93211-31513-00
Unavailable
15
BOLT, FLANGE
95817-06012-00
Unavailable
16
GASKET (4V2)
90430-06166-00
Unavailable
17
HOLDER 1
5X5-W1132-00-00
Unavailable
18
SCREW, PAN
98517-05012-00
Unavailable
19
GASKET, HOLDER
5X5-1131N-01-00
Unavailable
20
HOLDER 2
5X5-W1133-00-00
Unavailable
21
OIL SEAL (5X4)
93104-16074-00
Unavailable
22
O-RING (5X4)
93210-35512-00
Unavailable
23
COLLAR(3JE)
90387-102W0-00
Unavailable
24
BOSS, COLLAR
5X5-11937-00-00
Unavailable
25
O-RING (341)
93210-09192-00
Unavailable
26
PLATE, THRUST 1
56A-11915-00-00
Unavailable
27
SCREW,PAN HEAD (646)
98580-05012-00
Unavailable
28
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
29
HOUSING 2
5X5-11992-00-00
Unavailable
30
SCREW, PAN HEAD
98517-05020-00
Unavailable
31
SEAL, HOUSING
5X5-11995-00-00
Unavailable
