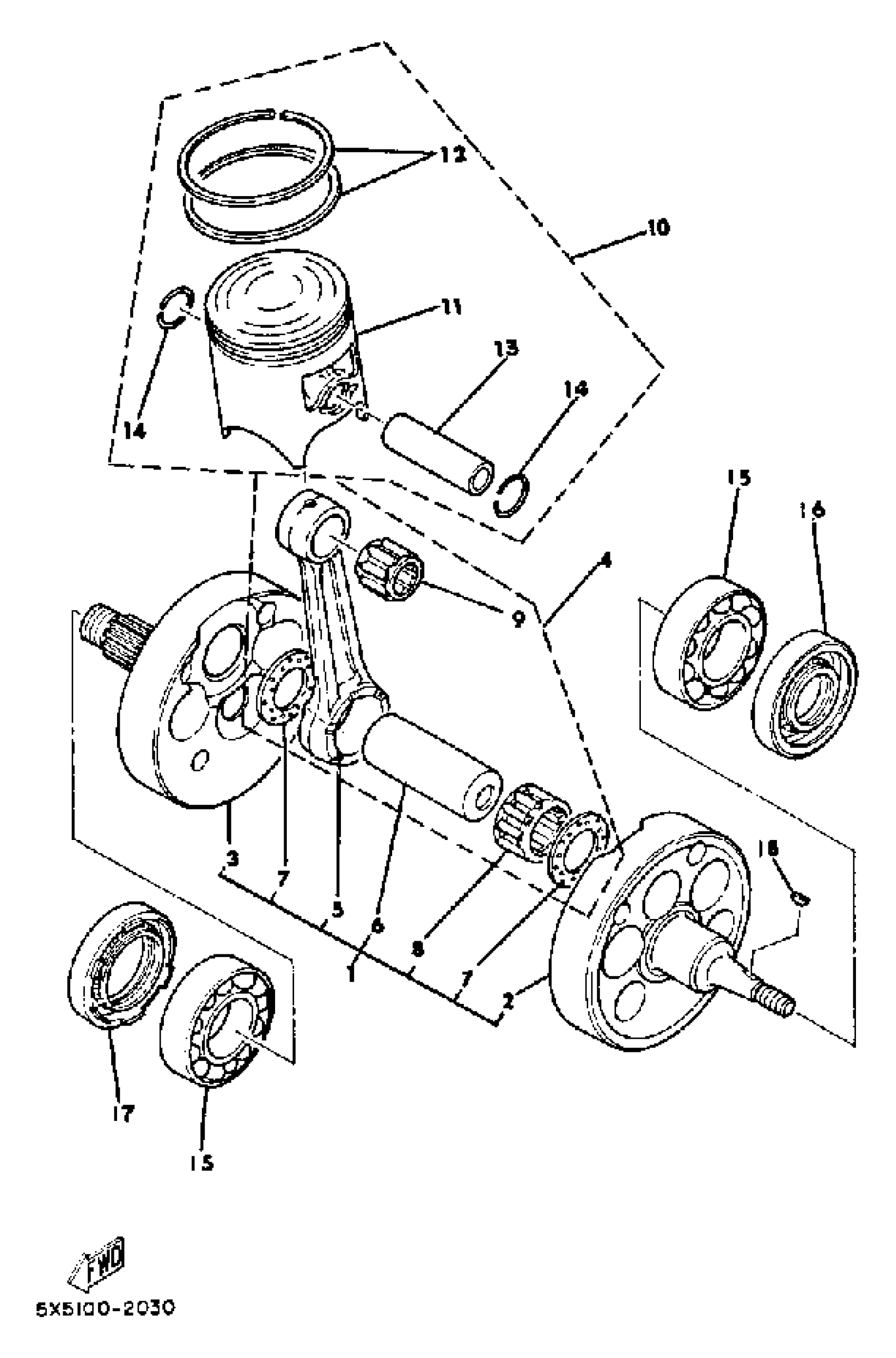

Yamaha YZ250J (YZ250J) 1982 CRANKSHAFT - PISTON Diagram

CRANKSHAFT ASSEMBLY

(5X5-11400-00-00)

Unavailable

. CRANK 1

3R4-11412-00-00

Unavailable

CRANK 2

(5X5-11422-00-00)

Unavailable

CONNECTING ROD ASSY

5X5-11650-00-00

Unavailable

ROD, CONNECTING

5X5-11651-03-00

Unavailable

PIN, CRANK

2X4-11681-00-00

$81.99

WASHER 275116850000

90209-25085-00

$12.49

BEARING, CYLINDRICAL(4JW)

93310-425P2-00

Unavailable

BEARING,CON-ROD SMALLEND(2X5)

93310-418E9-00

$48.99

PISTON KIT STD (STD)

5X5-11630-00-00

Unavailable

. PISTON STD (STD)

5X5-11631-00-94

Unavailable

. PISTON RINGSET STD (STD)

5X5-11601-00-00

Unavailable

PIN, PISTON

214-11633-00-00

Unavailable

CIRCLIP (2F1)

93450-19052-00

$7.49

BEARING (5X5)

93306-20627-00

$75.99

OIL SEAL(38V)

93103-30150-00

Unavailable

OIL SEAL (434)

93103-40091-00

Unavailable

PISTON RINGSET 1ST (1ST O/S)

5X5-11601-10-00

Unavailable

PISTON RINGSET 2ND (2ND O/S)

5X5-11601-20-00

Unavailable

PISTON RINGSET 3RD (3RD O/S)

5X5-11601-30-00

Unavailable

PISTON RINGSET 4TH (4TH O/S)

5X5-11601-40-00

Unavailable

PISTON KIT 1ST (1ST O/S)

5X5-11630-10-00

Unavailable

PISTON KIT 2ND (2ND O/S)

5X5-11630-20-00

Unavailable

PISTON KIT 3RD (3RD O/S)

5X5-11630-30-00

Unavailable

PISTON 1 O/S 0.25 (1ST O/S 0.25MM)

5X5-11635-00-00

Unavailable

PISTON 2 O/S 0.50 (2ND O/S 0.50MM)

5X5-11636-00-00

Unavailable

PISTON 3 O/S 0.75 (3RD O/S 0.75MM)

5X5-11637-00-00

Unavailable

PISTON 4 O/S 1.00 (4TH O/S 1.00MM)

5X5-11638-00-00

Unavailable

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable
