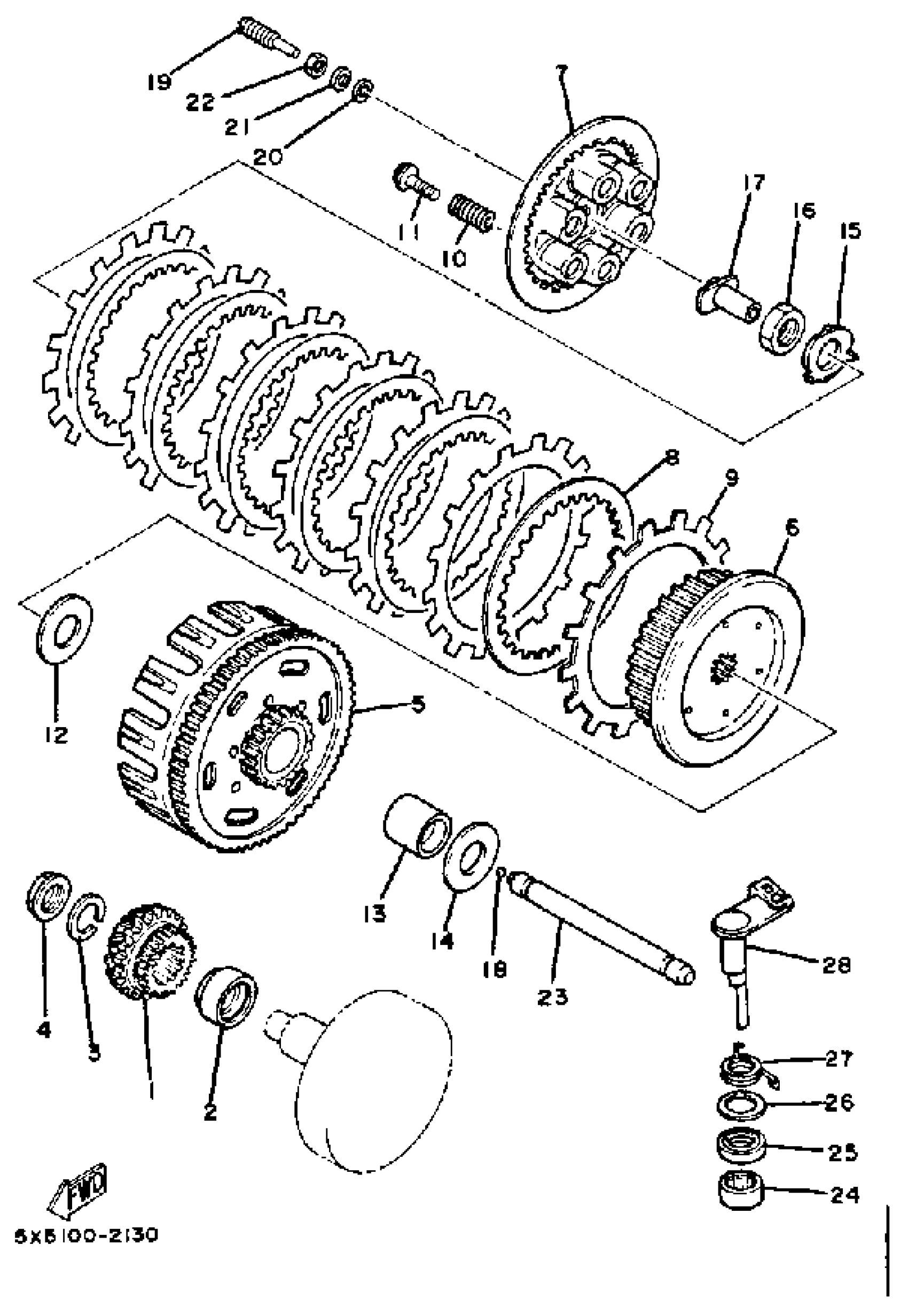

Yamaha YZ250J (YZ250J) 1982 CLUTCH Diagram
#
Description
Price
1
PRI DRV GEAR ASSEMBLY (24T, 29T)
5X5-16110-00-00
Unavailable
2
COLLAR
90387-252F6-00
Unavailable
4
NUT
90170-18089-00
Unavailable
5
PRI DRVN GEAR
5X5-16150-00-00
Unavailable
6
BOSS, CLUTCH
3R4-16371-01-00
Unavailable
7
. PLATE, PRESSURE 1
1M1-16351-00-00
Unavailable
8
PLATE, CLUTCH 2
5X5-16325-00-00
Unavailable
10
SPRING COMPRESSION168163330000
90501-23138-00
Unavailable
13
SPACER 1
2K7-16181-00-00
Unavailable
15
WASHER, LOCK (3Y1)
90215-20159-00
Unavailable
16
NUT (3R4)
90170-20255-00
Unavailable
17
ROD, PUSH 1
3R4-16356-00-00
Unavailable
18
BALL (1M1)
93515-32029-00
Unavailable
19
SCREW, SPEC''L SHAPE
90149-08169-00
Unavailable
20
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
21
WASHER, PLATE(49E)
90201-087H6-00
Unavailable
22
NUT, HEXAGON SMALL
95317-08700-00
Unavailable
23
ROD, PUSH 2
2K7-16357-01-00
Unavailable
24
BRG,CYL-CAL ROLLER 12G KY
93315-21721-00
Unavailable
25
OIL SEAL (17X28X6-101)
93102-17004-00
Unavailable
26
WASHER PLATE 168217580000
90201-18262-00
Unavailable
27
SPRING, TORSION
90508-14423-00
Unavailable
28
PUSH LEVER ASSEMBLY
4V4-16380-00-00
Unavailable
