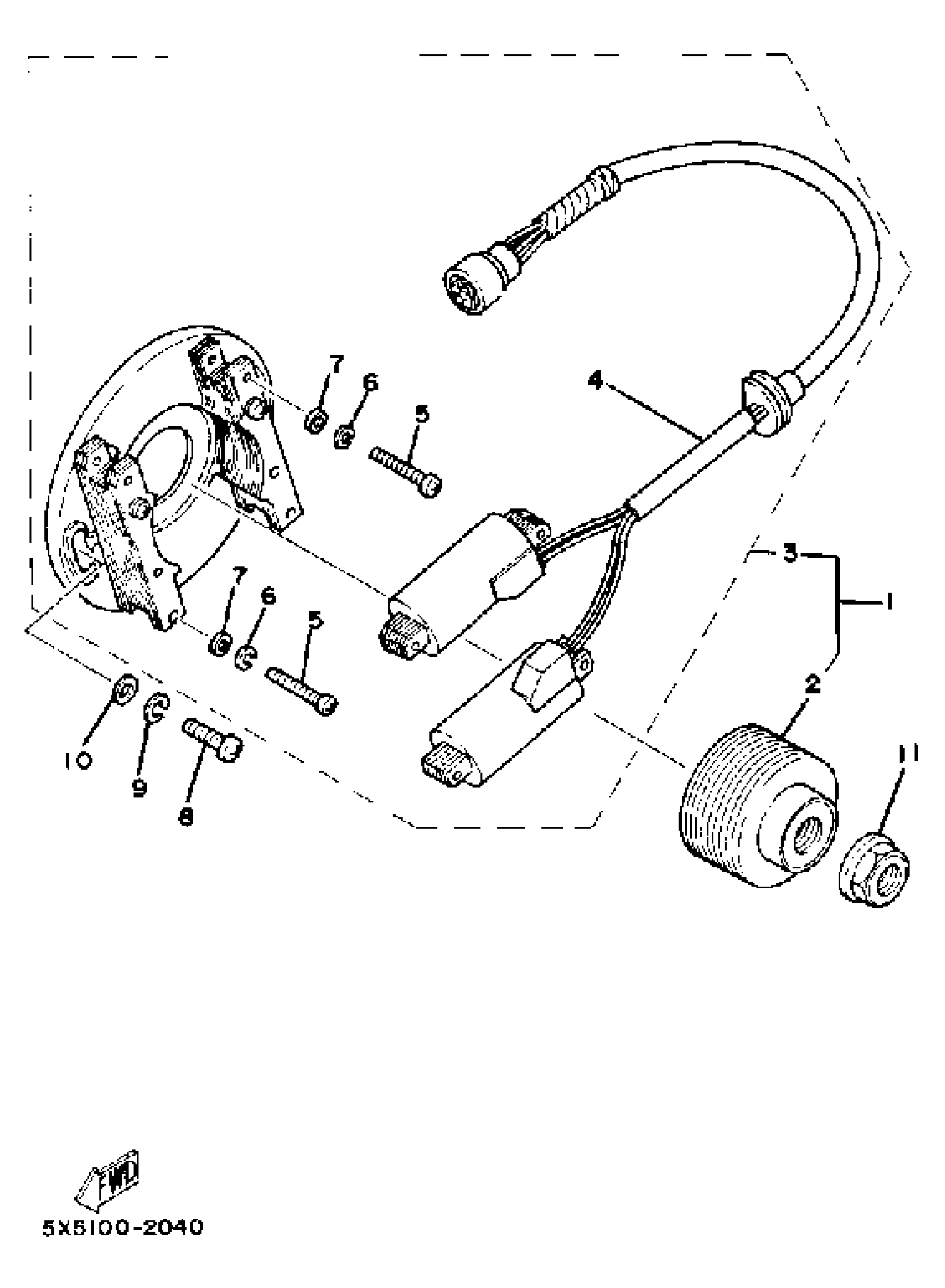

Yamaha YZ250J (YZ250J) 1982 C - D - I - MAGNETO Diagram

#

Description

Price

1

CDI MAGNETO ASSEMBLY

5X5-85500-10-00

Unavailable

2

ROTOR ASSEMBLY

(5X5-85550-10-00)

Unavailable

3

. STATOR ASSEMBLY

5X5-85510-10-00

Unavailable

4

COIL, CHARGE

(5X5-85520-10-00)

Unavailable

5

SCREW, PAN HEAD

98580-05020-00

Unavailable

6

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

7

WASHER, PLAIN (646)

92990-05600-00

$0.80

8

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

9

WASHER, SPRING

92995-06100-00

Unavailable

10

WASHER, PLAIN (646)

92990-06600-00

$2.80

11

NUT, SPECIAL SHAPE

90179-10257-00

Unavailable
