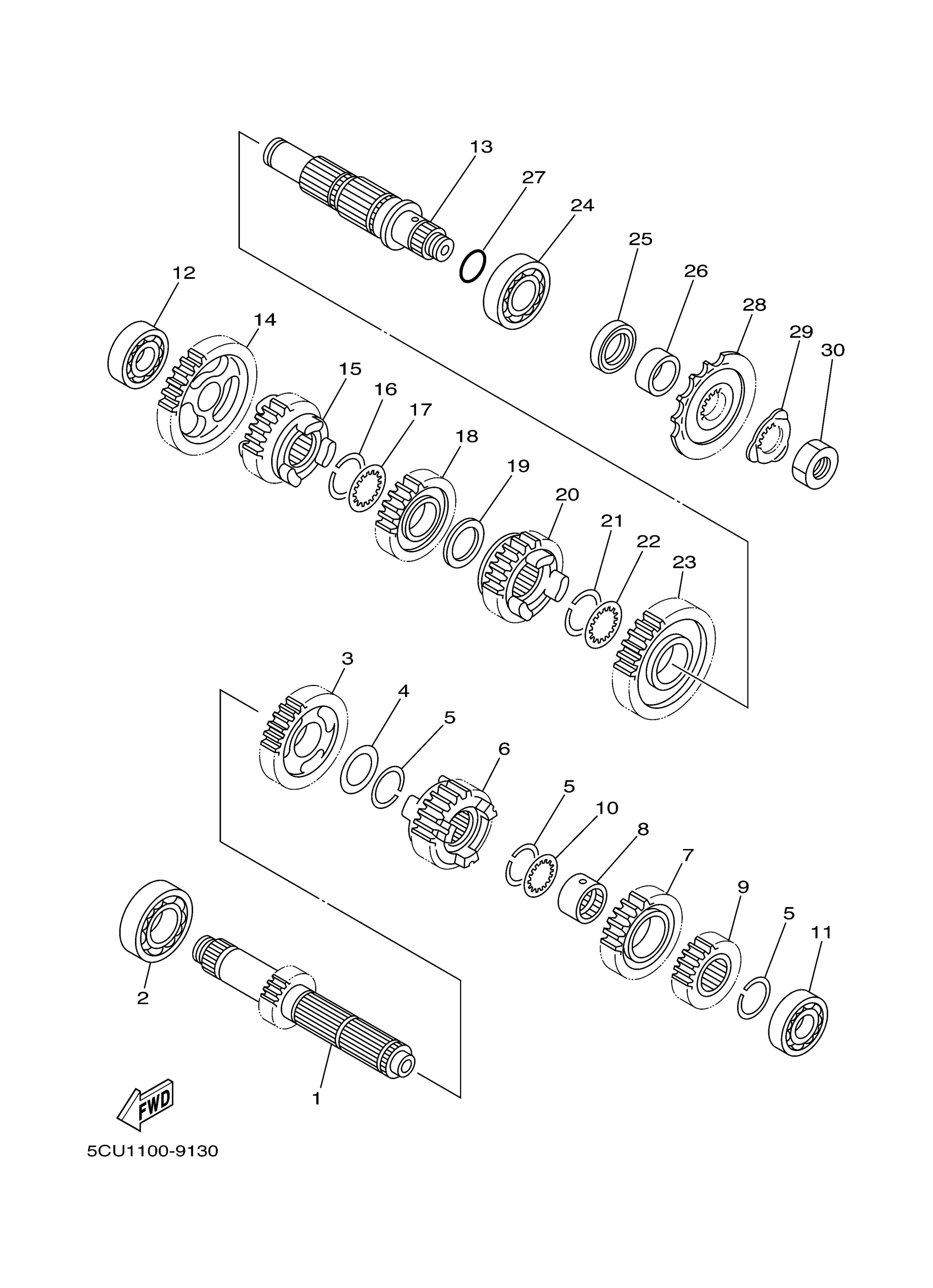

Yamaha YZ250H2 (YZ250) 1SSM 2017 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

5BE-17411-00-00

$126.85

2

BEARING (3R5)

93306-20540-00

$46.51

3

GEAR, 5TH PINION

5BE-17151-00-00

$68.90

4

WASHER, PLATE(59W)

90201-253K0-00

$5.76

5

CIRCLIP (4L0)

93440-25084-00

$3.81

6

GEAR, 3RD PINION

5CU-17131-01-00

$126.15

7

GEAR, 4TH PINION

5BE-17141-30-00

$114.75

8

COLLAR

90387-2113G-00

$34.58

9

GEAR, 2ND PINION

5JG-17121-10-00

$69.33

10

WASHER(3VD)

90209-21332-00

$6.29

11

BEARING(3XV)

93306-00442-00

$32.82

12

BEARING (5Y1)

93306-00426-00

$34.16

13

DRIVE AXLE ASSY

5BE-17402-00-00

$134.51

14

GEAR, 1ST WHEEL

5BE-17211-00-00

$105.95

15

GEAR, 5TH WHEEL

5BE-17251-10-00

$114.75

16

CIRCLIP (4L0)

93440-25084-00

$3.81

17

WASHER(3VD)

90209-21332-00

$6.29

18

GEAR, 3RD WHEEL

5BE-17231-00-00

Unavailable

19

WASHER, PLATE(59W)

90201-253K0-00

$5.76

20

GEAR, 4TH WHEEL

5JG-17241-00-00

Unavailable

21

CIRCLIP (2H7)

93440-28062-00

Unavailable

22

WASHER

90209-26348-00

Unavailable

23

GEAR, 2ND WHEEL

5JG-17221-10-00

Unavailable

24

BEARING(43G)

93306-20562-00

Unavailable

25

OIL SEAL (697)

93102-32M07-00

Unavailable

26

COLLAR

90387-2515B-00

Unavailable

27

O-RING

93210-22298-00

Unavailable

28

SPROCKET, DRIVE (13T)

9383E-13216-00

Unavailable

28

SPROCKET, DRIVE (14T)

9383E-14215-00

Unavailable

29

WASHER, LOCK(1KT)

90215-21256-00

Unavailable

30

NUT (2K7)

90179-20255-00

Unavailable
