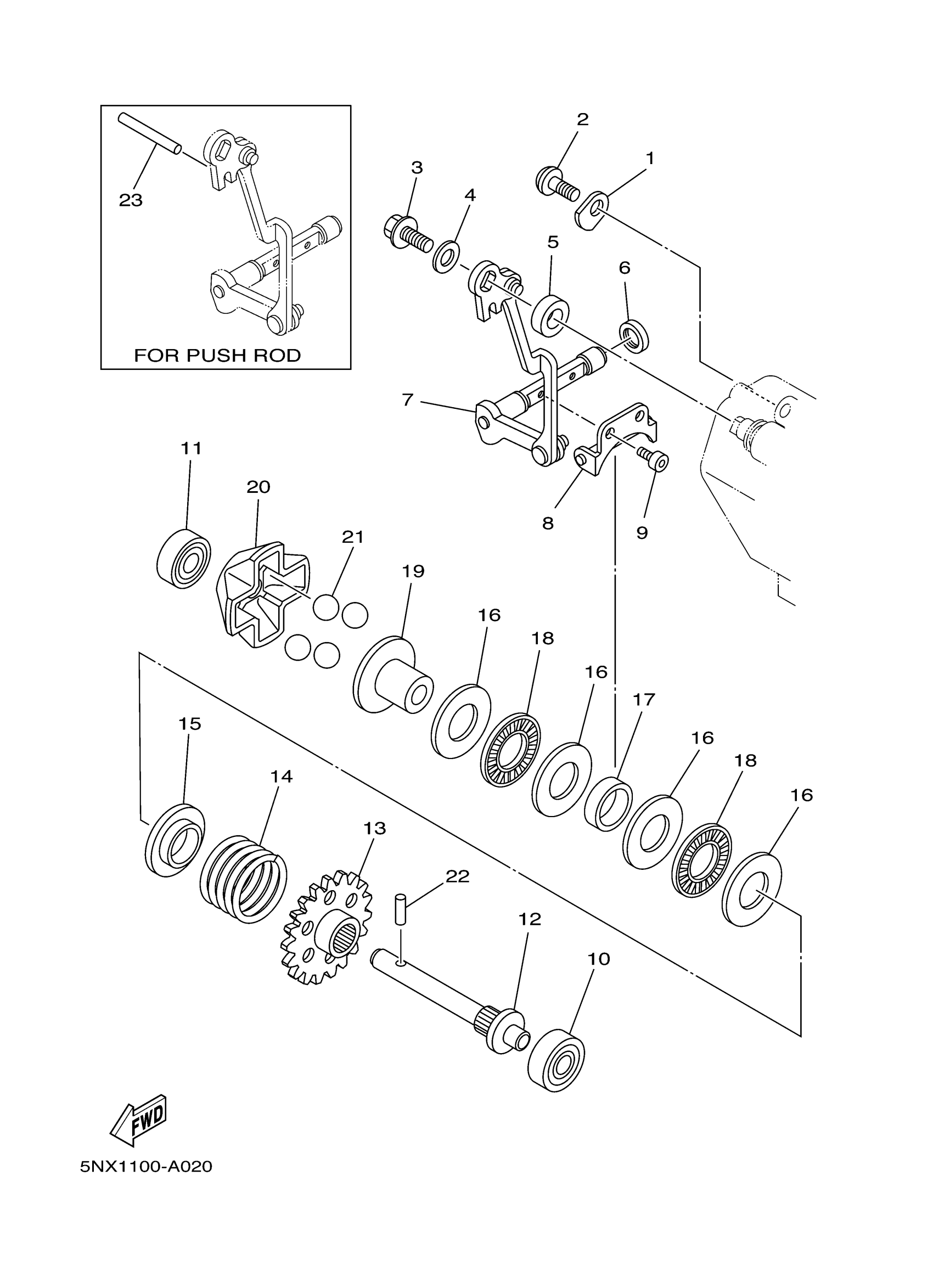

Yamaha YZ250H2 (YZ250) 1SSM 2017 GOVERNOR Diagram

#

Description
Price

1

PLATE, THRUST 1

4JY-11915-10-00

$7.99

2

SCREW, BIND(3XC)

98904-05012-00

$1.71

3

BOLT, FLANGE

90105-05014-00

$2.71

4

WASHER, PLATE

90201-05021-00

$1.96

5

COLLAR (7R4)

90387-085E1-00

$7.49

6

OIL SEAL (8X12X3-371)

93104-08040-00

$14.99

7

PUSH ROD ASSY

5CU-11990-10-00

$169.99

8

FORK, GOVERNOR

3JE-11922-01-00

$43.99

9

BOLT

91312-04006-00

$2.97

10

BEARING

93300-60801-00

$21.99

11

BEARING

93300-60801-00

$21.99

12

SHAFT, GOVERNOR

5X4-11921-02-00

$56.99

13

GEAR, GOVERNOR

5NY-11953-00-00

$57.99

14

SPRING, COMPRESSION

90501-256L2-00

$7.49

15

PLATE

5CU-11952-00-00

$17.49

16

WASHER, PLATE(3GD)

90201-150U6-00

Unavailable

17

COLLAR (5X4)

90387-152F2-00

Unavailable

18

BEARING, THRUST (713)

93340-21505-00

Unavailable

19

RETAINER, WEIGHT

5CU-11912-00-00

Unavailable

20

RETAINER

5CU-11911-00-00

Unavailable

21

BALL(71F)

93507-16020-00

Unavailable

22

PIN, DOWEL(3HN)

93603-14240-00

Unavailable

23

PIN, DOWEL

93604-29184-00

Unavailable
