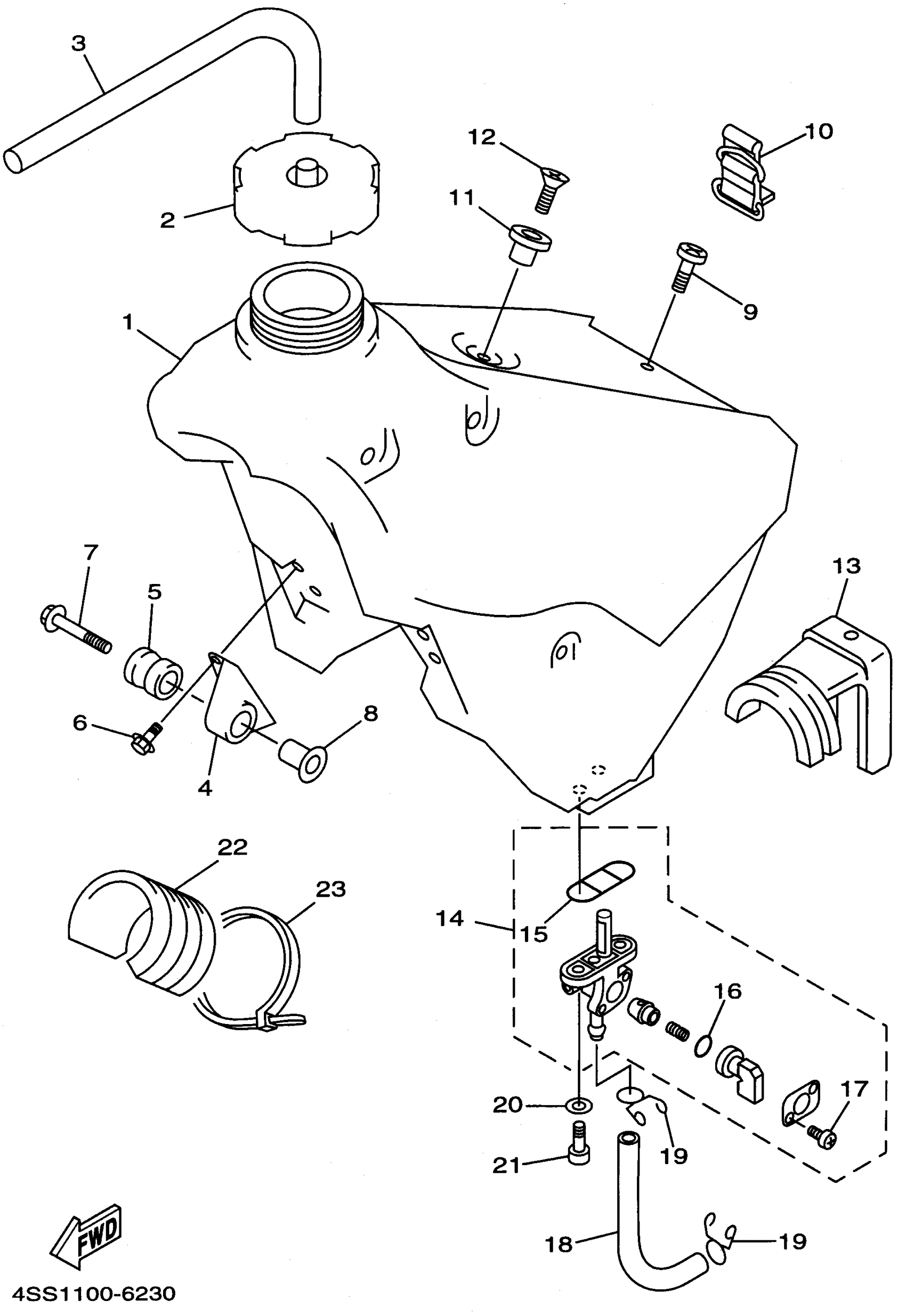

Yamaha YZ250H1 (YZ250H1) 1996 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

5MV-24110-01-00

$640.99

2

CAP ASSY

5MV-24610-00-00

$58.99

3

HOSE (L420)

90445-092K1-00

$12.49

4

HOLDER, DAMPER

5XE-24144-00-00

$23.99

5

GROMMET(4AA)

90480-18549-00

$10.49

6

BOLT, WASHER BASED(JA9)

90105-06696-00

$9.49

7

BOLT, WITH WASHER(3XP)

90119-06214-00

$8.49

8

WASHER, SPECIAL

3JD-24186-00-00

$13.49

9

SCREW, BINDING

98907-06020-00

$8.49

10

BAND, TANK FITTING 1

3SP-24173-00-00

$22.99

11

BRACKET, SEAT

4EW-2412F-00-00

$14.49

12

SCREW, FLAT

98707-06025-00

$8.49

13

DAMPER, LOCATING 1

4SS-24181-00-00

Unavailable

14

FUEL COCK ASSY 1

3JD-24500-20-00

$56.99

15

O-RING

4X8-24512-00-00

$8.99

16

SEAL, COCK

3AJ-24534-01-00

Unavailable

17

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

18

HOSE (L210)

90445-110F5-00

Unavailable

19

CLIP

90467-100A1-00

Unavailable

20

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

21

SCREW 256241430000

90149-06011-00

Unavailable

22

DAMPER, LOCATING 2

4SS-24182-00-00

Unavailable

23

CLAMP(MF1)

90464-15152-00

Unavailable
