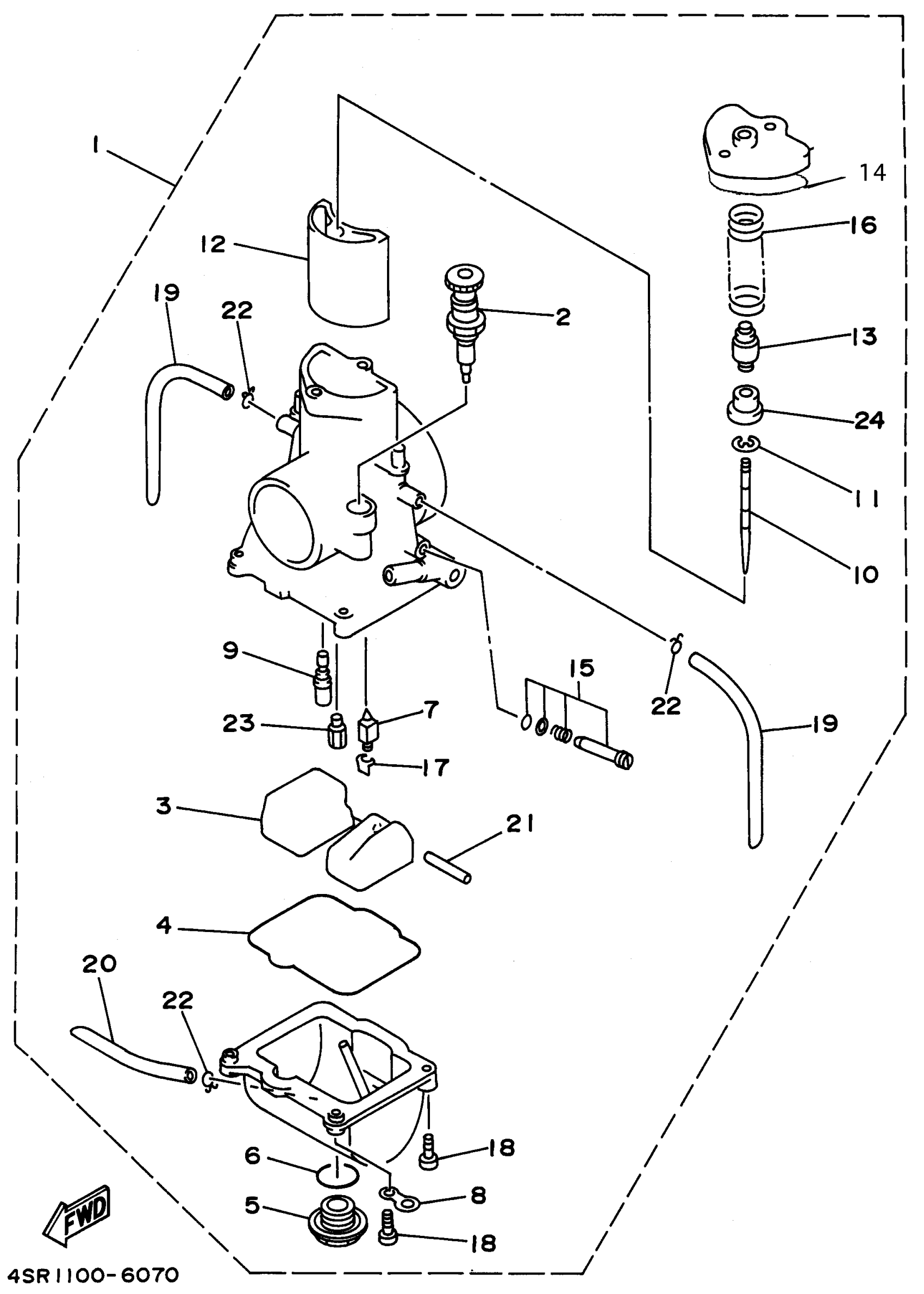

Yamaha YZ250H1 (YZ250H1) 1996 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

4SR-14101-00-00

Unavailable

2

PLUNGER, STARTER

4SR-14171-00-00

Unavailable

3

FLOAT

4SR-14985-00-00

$67.99

4

GASKET, FLOAT CHAMBER

4MX-14984-00-00

$24.99

5

PLUG, SCREW

4MX-14115-00-00

$32.99

6

O-RING

4MX-14561-00-00

$6.99

7

VALVE, NEEDLE

4MX-14392-00-00

$43.99

8

. PLATE

4MX-14146-00-00

Unavailable

9

JET, PILOT (#42)

4MX-14948-04-00

$9.99

9

JET, PILOT (#45)

4MX-14948-05-00

$9.99

9

JET, PILOT (#48)

4MX-14948-06-00

$9.99

9

JET, PILOT (#50)

4MX-14948-07-00

$9.99

9

JET, PILOT (#52)

4MX-14948-08-00

$9.99

9

JET, PILOT (#55)

4MX-14948-09-00

$9.99

9

JET, SLOW (#38)

4MX-14948-02-00

$16.49

9

JET (#40)

4MX-14948-03-00

Unavailable

10

. NEEDLE (N3CC)

4SR-14916-CC-00

Unavailable

10

. NEEDLE (N3CD)

4SR-14916-CD-00

Unavailable

10

. NEEDLE (N3CE)

4SR-14916-CE-00

Unavailable

10

. NEEDLE (N3EC)

4SR-14916-EC-00

Unavailable

10

. NEEDLE (N3ED)

4SR-14916-ED-00

Unavailable

10

. NEEDLE (N3EE)

4SR-14916-EE-00

Unavailable

11

CLIP

4MX-14919-00-00

Unavailable

12

. VALVE ASSEMBLY

4SR-14340-A6-00

Unavailable

13

. HOLDER

4SR-14261-00-00

Unavailable

14

. GASKET

4SR-14126-00-00

Unavailable

15

PILOT SCREW SET

4SR-14105-01-00

Unavailable

16

. SPRING, THROTTLE VALVE

4MX-14131-00-00

Unavailable

17

CLIP

633-14159-00-00

Unavailable

18

SCREW, PAN HEAD(N15)

98507-04014-00

Unavailable

19

. PIPE

4MX-14197-00-00

Unavailable

20

. PIPE

4MX-14196-00-00

Unavailable

21

. PIN, FLOAT ARM

663-14548-00-00

Unavailable

22

CLIP

3TJ-14137-40-00

Unavailable

23

JET, MAIN (#165)

4MX-14943-40-00

Unavailable

23

JET, MAIN (#170)

4MX-14943-41-00

Unavailable

23

JET, MAIN (#175)

4MX-14943-42-00

Unavailable

23

JET, MAIN (#180)

4MX-14943-43-00

Unavailable

23

JET, MAIN (#185)

4MX-14943-44-00

Unavailable

23

JET, MAIN (#190)

4MX-14943-45-00

Unavailable

23

JET, MAIN (#168)

4MX-14943-91-00

Unavailable

23

JET, MAIN (#172)

4MX-14943-92-00

Unavailable

23

JET, MAIN (#178)

4MX-14943-93-00

Unavailable

23

JET, MAIN (#182)

4MX-14943-94-00

Unavailable

23

JET, MAIN (#188)

4MX-14943-95-00

Unavailable

23

JET, MAIN (#162)

4MX-14943-90-00

Unavailable

24

RING

4MX-14194-00-00

Unavailable
