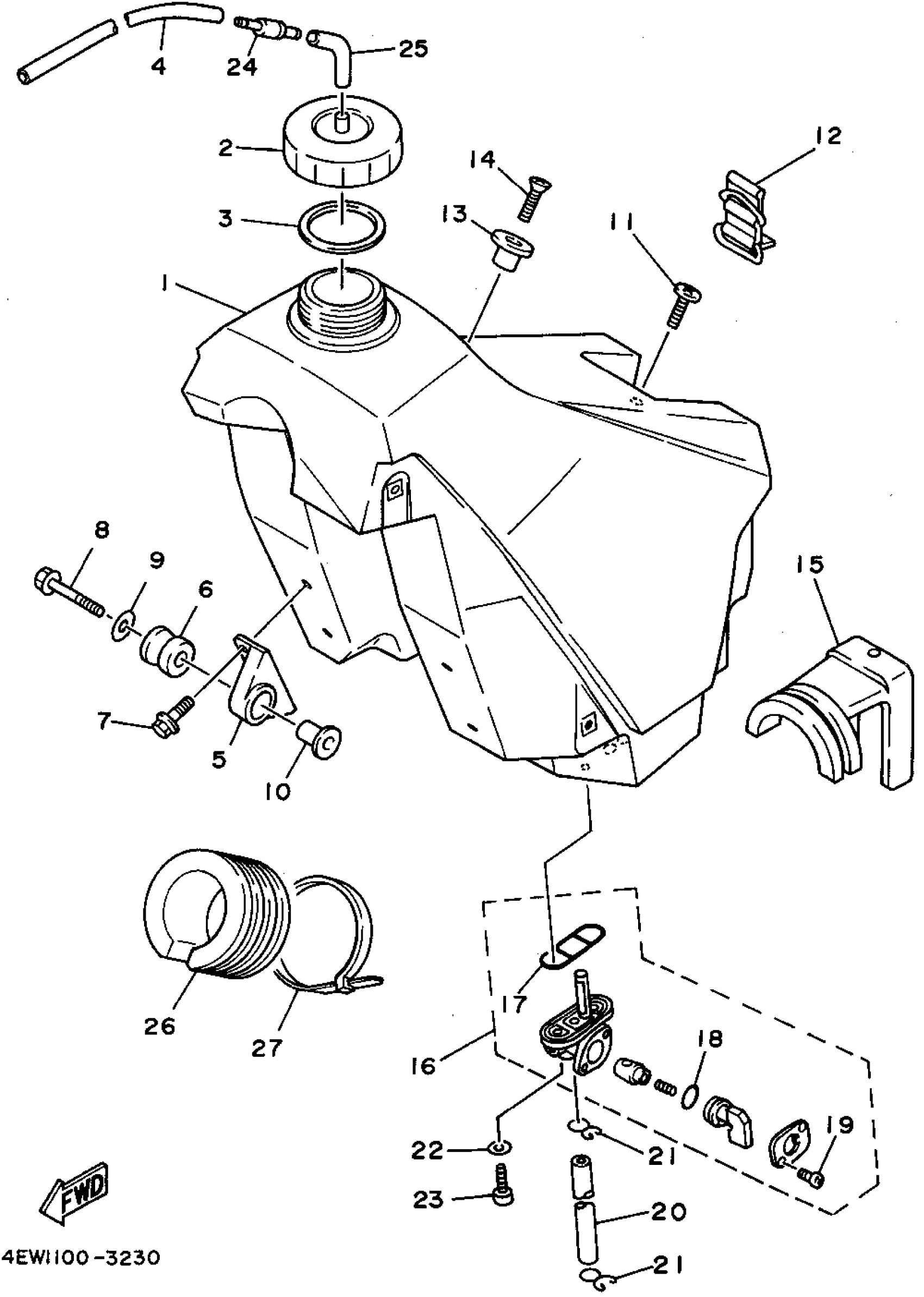

Yamaha YZ250G1 (YZ250G1) 1995 FUEL TANK Diagram

FUEL TANK COMP.

4EW-24110-01-00

Unavailable

BODY, CAP

5X7-24611-01-00

Unavailable

PACKING, CAP

5X7-24612-00-00

Unavailable

HOSE (L420)

90445-092K1-00

$12.49

HOLDER, DAMPER

5XE-24144-00-00

$23.99

GROMMET(4AA)

90480-18549-00

$10.49

BOLT, WASHER BASED(JA9)

90105-06696-00

$9.49

BOLT, SMALL FLANGE

95027-06035-00

$2.22

WASHER, PLATE (J10)

90201-06697-00

$8.49

WASHER, SPECIAL

3JD-24186-00-00

$13.49

SCREW, BINDING

98907-06020-00

$8.49

BAND, TANK FITTING 1

3SP-24173-00-00

$22.99

BRACKET, SEAT

4EW-2412F-00-00

$14.49

SCREW, FLAT

98707-06025-00

$8.49

DAMPER, LOCATING 1

4EW-24181-00-00

Unavailable

FUEL COCK ASSY 1

3JD-24500-20-00

Unavailable

O-RING

4X8-24512-00-00

Unavailable

SEAL, COCK

3AJ-24534-01-00

Unavailable

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

HOSE (L210)

90445-110F5-00

Unavailable

CLIP

90467-100A1-00

Unavailable

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

SCREW 256241430000

90149-06011-00

Unavailable

PIPE JOINT ASSY

3XJ-24380-00-00

Unavailable

HOSE (L420)

90445-092K1-00

$12.49

DAMPER, LOCATING 2

4EW-24182-00-00

Unavailable

CLAMP(MF1)

90464-15152-00

Unavailable
