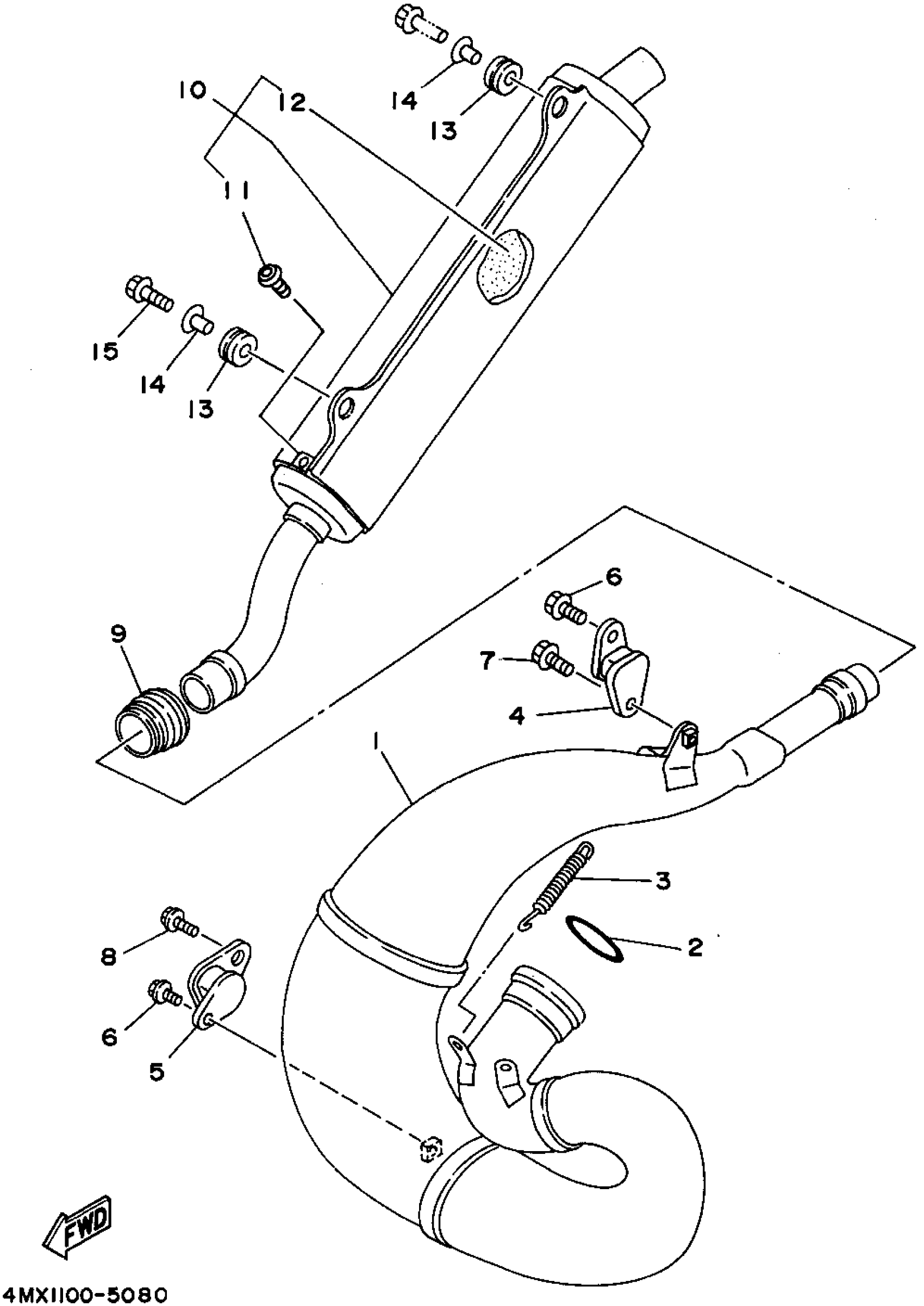

Yamaha YZ250G1 (YZ250G1) 1995 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSEMBLY 1

4MX-14610-00-00

Unavailable

2

O-RING(4MX)

93210-472A9-00

$12.96

3

SPRING, TENSION(3FV)

90507-20052-00

$3.92

4

STAY, MUFFLER 1

565-14771-01-00

$15.57

5

STAY, MUFFLER 2

483-14781-03-00

Unavailable

6

BOLT, FLANGE(4MY)

95027-06012-00

$3.05

7

BOLT, WITH WASHER(3JD)

90119-06185-00

$7.00

8

BOLT, SMALL FLANGE

95027-08012-00

$6.43

9

JOINT, EXHAUST 1

3JE-14615-01-00

$45.52

10

SILENCER,EXHAUST

4EW-14753-02-00

Unavailable

11

BOLT, BUTTON HEAD

92017-06010-00

$2.86

12

. FIBER

4EW-1469A-01-00

Unavailable

13

GROMMET(4EW)

90480-16561-00

$13.70

14

COLLAR(52E)

90387-063G3-00

$5.86

15

BOLT, SMALL FLANGE

95027-06025-00

$2.95
