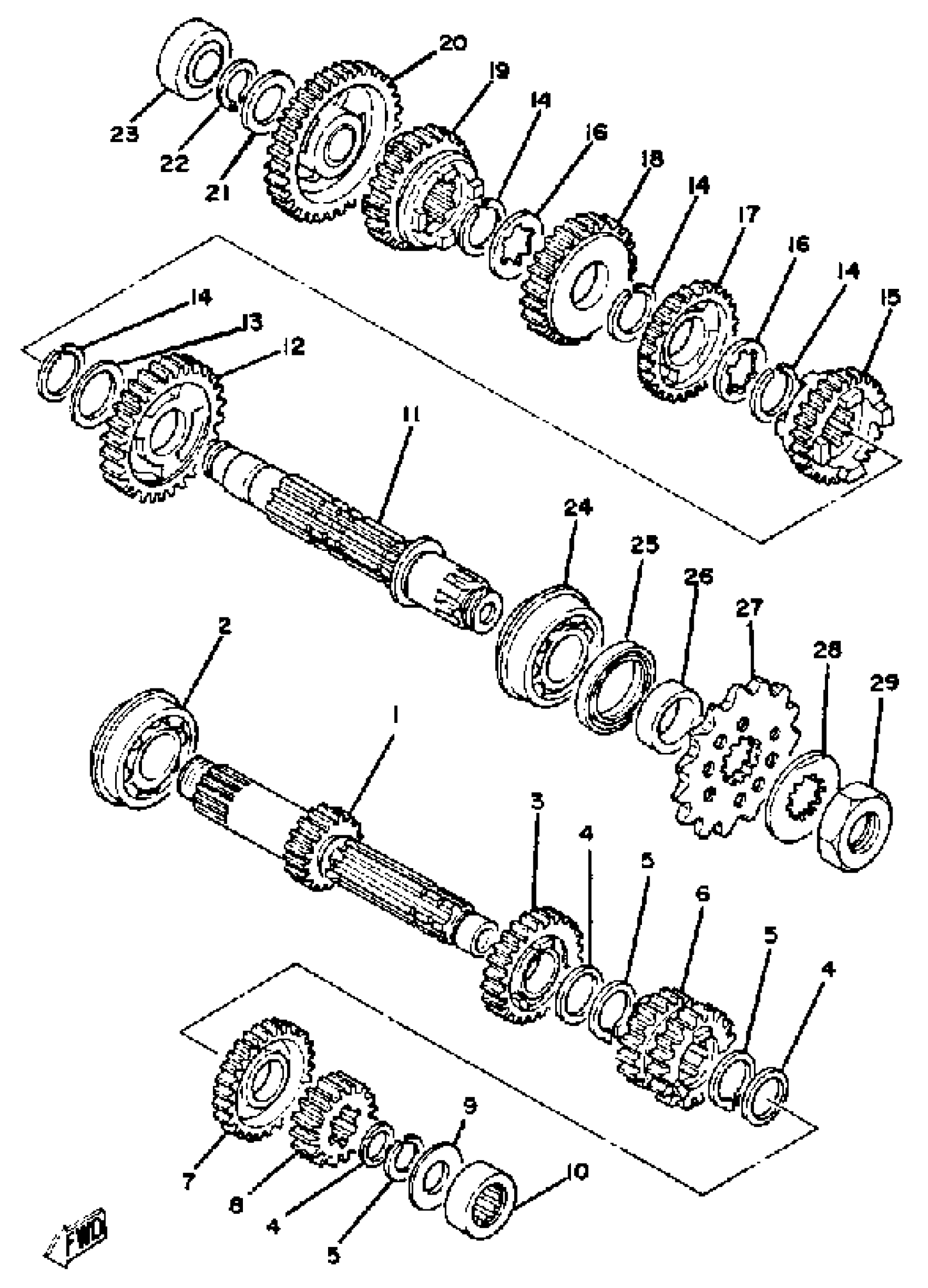

Yamaha YZ250G (YZ250G_H) 1980 TRANSMISSION YZ250G Diagram

#

Description
Price

1

AXLE, MAIN (14T)

3R4-17411-00-00

Unavailable

2

BEARING (3R5)

93306-20540-00

$57.99

3

GEAR, 5TH PINION (23T) (3R4-17151-01)

3R4-17151-02-00

Unavailable

4

WASHER, PLATE (537)

90201-22555-00

$8.49

5

CIRCLIP (537)

93410-22039-00

$8.49

6

GEAR, 3RD PINION (17T, 21T) (3R4-17131-01)

3R4-17131-02-00

Unavailable

7

GEAR, 6TH PINION (24T) (3R4-17121-00)

3R4-17161-03-00

Unavailable

8

GEAR, 2ND PINION (16T) (3R4-17121-00)

3R4-17121-01-00

Unavailable

9

WASHER, PLATE (30X)

90201-177G4-00

$9.49

10

BRG,CYL-CAL ROLLER 41.5G KY

93311-41734-00

$73.99

11

AXLE, DRIVE

3R4-17421-00-00

Unavailable

12

GEAR, 2ND WHEEL (29T) (3R4-17221-01)

3R4-17221-02-00

Unavailable

13

WASHER, PLATE(59W)

90201-253K0-00

$8.49

14

CIRCLIP (4L0)

93440-25084-00

$5.60

15

GEAR, 6TH WHEEL (21T) (3R4-17261-01)

3R4-17261-02-00

Unavailable

16

WASHER 434172160000

90209-22082-00

Unavailable

17

GEAR, 4TH WHEEL (24T) (3R4-17241-00)

3R4-17241-01-00

Unavailable

18

GEAR, 3RD WHEEL (24T) (3R4-17231-00)

3R4-17231-01-00

Unavailable

19

GEAR, 5TH WHEEL (22T) (3R4-17251-00)

3R4-17251-01-00

Unavailable

20

GEAR, 1ST WHEEL (2X4-17211-00)

2X4-17211-01-00

Unavailable

21

WASHER PLATE 168171160000

90201-20278-00

Unavailable

22

CIRCLIP (525)

93410-20038-00

Unavailable

23

BEARING (2X7)

93311-62035-00

Unavailable

24

BRG,R-B 6205C4 52MM 130G KY

93306-20529-00

Unavailable

25

OIL SEAL (697)

93102-32M07-00

Unavailable

26

COLLAR (2K7)

90387-25663-00

Unavailable

27

SPROCKET, DRIVE (13T)(4RF)

93834-13206-00

Unavailable

27

SPROCKET, DRIVE

93834-14051-00

Unavailable

27

SPROCKET,DRIVE 15T(3Y11746150)

93834-15078-00

Unavailable

28

WASHER, LOCK (23X)

90215-21239-00

Unavailable

29

NUT (2K7)

90179-20255-00

Unavailable
