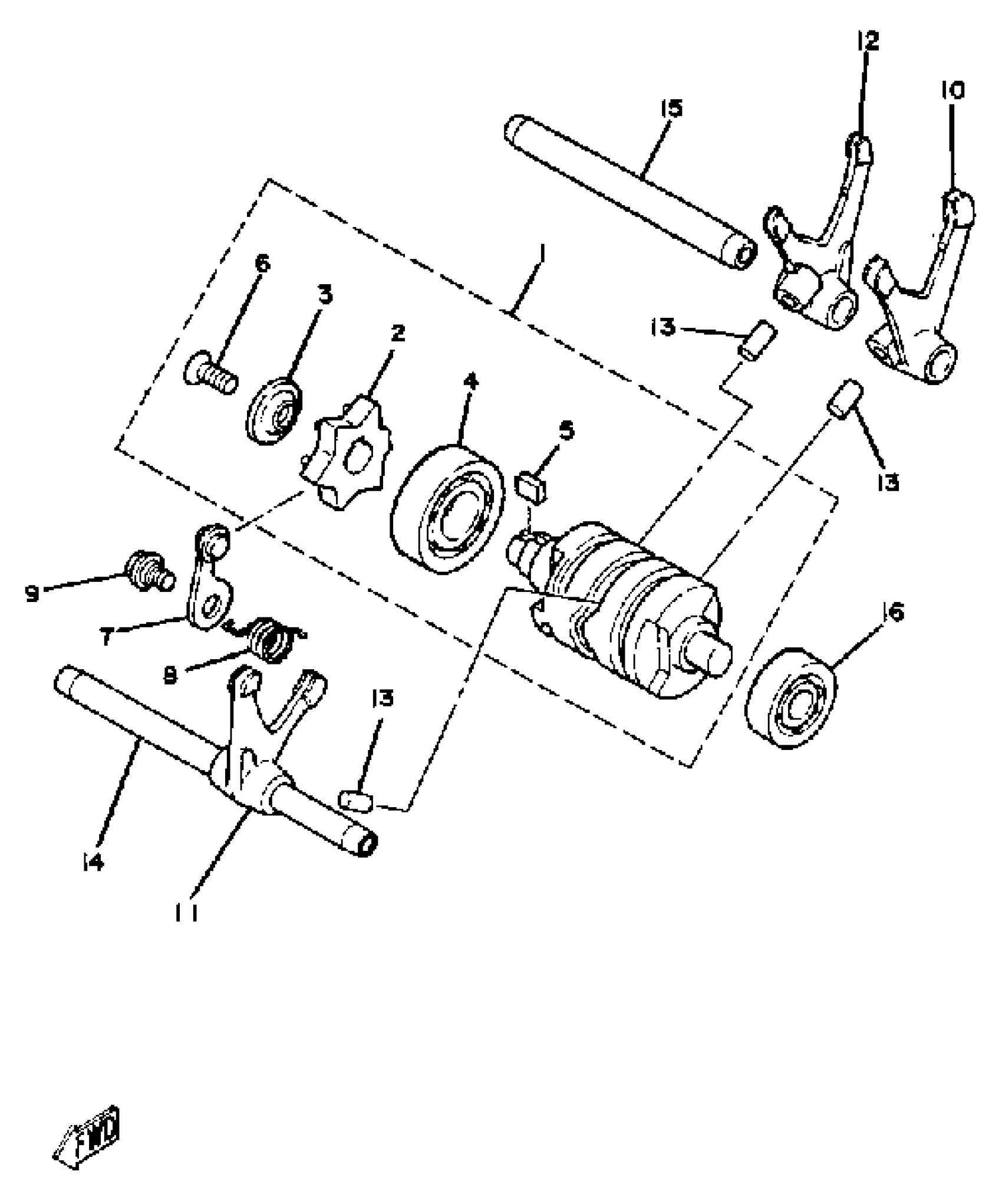

Yamaha YZ250G (YZ250G_H) 1980 SHIFT CAM FORK YZ250G H Diagram

#

Description
Price

1

SHIFT CAM ASSEMBLY

24Y-18540-00-00

Unavailable

1

SHIFT CAM ASSEMBLY

25Y-18540-00-00

Unavailable

2

SEGMENT

3R4-18185-00-00

$22.99

3

PLATE, SIDE 1

3R4-18561-00-00

$7.99

4

BEARING(3BN)

93306-00438-00

$37.99

4

BEARING (7K2)

93306-00423-00

$37.99

5

KEY, STRAIGHT (3R4)

90282-04036-00

$8.49

6

SCREW, FLAT

98707-05016-00

$7.99

7

STOPPER LEVER ASSEMBLY

3R4-18140-00-00

Unavailable

8

SPRING, TORSION

90508-26421-00

Unavailable

9

BOLT

90109-06190-00

$4.72

10

FORK, SHIFT 1

3R4-18511-01-00

Unavailable

10

FORK, SHIFT 1 (250H)

3R5-18511-00-00

Unavailable

11

FORK, SHIFT 2

3R4-18512-01-00

Unavailable

11

FORK, SHIFT 2

4V3-18512-00-00

Unavailable

12

FORK, SHIFT 3 (250G)

3R4-18513-01-00

Unavailable

12

FORK, SHIFT 3 (250G)

3R5-18513-00-00

Unavailable

13

PIN, DOWEL (3R4)

93606-14154-00

Unavailable

14

BAR, SHIF FRK GDE 1

(4V4-18531-00-00)

Unavailable

14

BAR, SHIFT FORK GUIDE 1

4BA-18531-00-00

Unavailable

15

BAR, SHIF FRK GDE 2 (250H)

4V4-18535-00-00

Unavailable

15

BAR, SHIFT FORK GUIDE 2

5X5-18535-01-00

Unavailable

16

BEARING(3WF)

93306-20119-00

Unavailable
