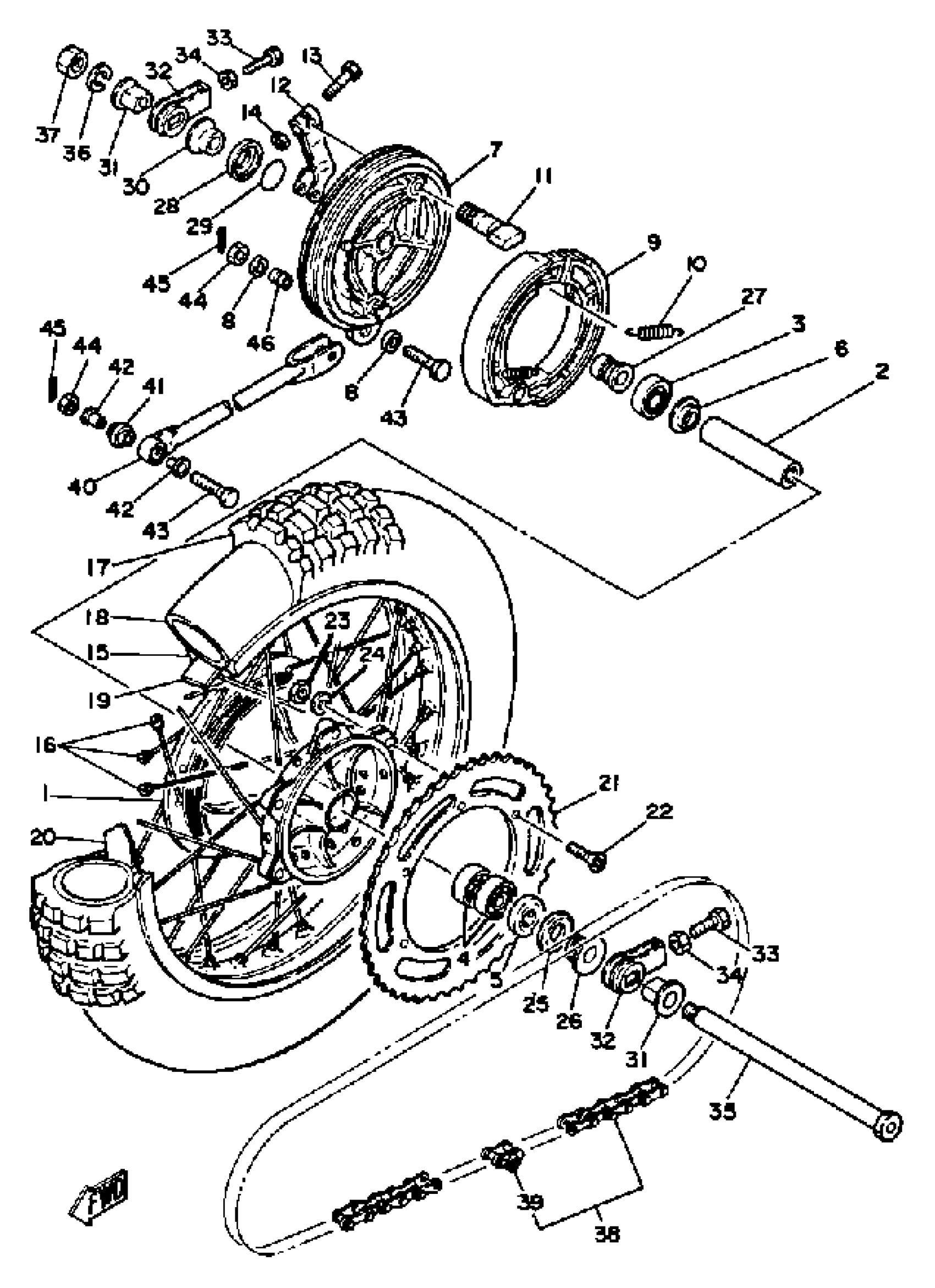

Yamaha YZ250G (YZ250G_H) 1980 REAR WHEEL YZ250G Diagram

#

Description
Price

1

HUB, REAR (3R4-25311-00-98)

3R4-25311-01-98

Unavailable

2

SPACER, BEARING

(3R4-25317-00-00)

Unavailable

3

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

4

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

5

OIL SEAL (25X47X7-801)

93102-25044-00

$14.99

6

FLANGE, SPACER

146-25315-00-00

$7.99

7

PLATE BRAKE SHOE

3R4-25321-01-98

Unavailable

8

OIL SEAL

93104-12003-00

$8.49

9

BRAKE SHOE SET-2PCS

437-W2536-00-00

Unavailable

10

SPRING (5T9)

90506-17328-00

Unavailable

11

CAMSHAFT

26A-25351-00-00

Unavailable

12

LEVER, CAMSHAFT (2X3-25355-00)

2X3-25355-01-00

Unavailable

13

BOLT, HEXAGON (538)

90101-06278-00

$2.17

14

NUT, HEXAGON

95380-06600-00

Unavailable

15

RIM 2.15X18

(94421-18235-00)

Unavailable

16

SPOKE SET, REAR

3R4-25304-00-00

Unavailable

17

BS 510X18 MX M20

(94151-18553-00)

Unavailable

18

TUBE

(94251-18150-00)

Unavailable

19

BAND, RIM (2J4)

94340-18086-00

Unavailable

20

SPACER,BEAD

1T1-25394-01-00

Unavailable

21

SPROCKET, DRIVEN 46T

3R4-25446-01-XX

Unavailable

21

SPROCKET, DRIVEN 48T

3R4-25448-01-XX

Unavailable

21

SPROCKET, DRIVEN 50T

3R4-25450-01-XX

Unavailable

22

BOLT, HEX SKT HEAD

90110-08038-00

Unavailable

23

NUT, SELF-LOCKING (3Y2)

90185-08089-00

Unavailable

24

WASHER, PLAIN

92990-08200-00

Unavailable

25

COVER, HUB DUST

3R4-25367-00-00

Unavailable

26

COLLAR

90387-17650-00

Unavailable

27

COLLAR

(90387-17700-00)

Unavailable

28

COVER, PLATE

275-25327-00-00

Unavailable

29

O-RING

93210-31MJ5-00

Unavailable

30

COLLAR

90387-17777-00

Unavailable

31

BUSH, SOLID

90381-17027-00

Unavailable

32

PULLER, CHAIN 1

2K8-25388-00-00

Unavailable

33

BOLT

90101-08060-00

Unavailable

34

. NUT

95380-08700-00

Unavailable

35

AXLE, WHEEL (3R4-25381-00)

3R4-25381-01-00

Unavailable

36

WASHER(JN5)

92907-16100-00

Unavailable

37

NUT, HEXAGON

90170-16177-00

Unavailable

38

520 DS 106L

94585-20106-00

Unavailable

39

JOINT, CHAIN

94681-68001-00

Unavailable

40

BAR, TENSION

(3R4-25371-00-00)

Unavailable

41

BEARING, SPECIAL

93399-99906-00

Unavailable

42

COLLAR

90387-080A8-00

Unavailable

43

BOLT, WITH HOLE

90102-08034-00

Unavailable

44

NUT, U

95617-08100-00

Unavailable

45

PIN, COTTER

91490-20025-00

Unavailable

46

COLLAR

90387-08699-00

Unavailable
