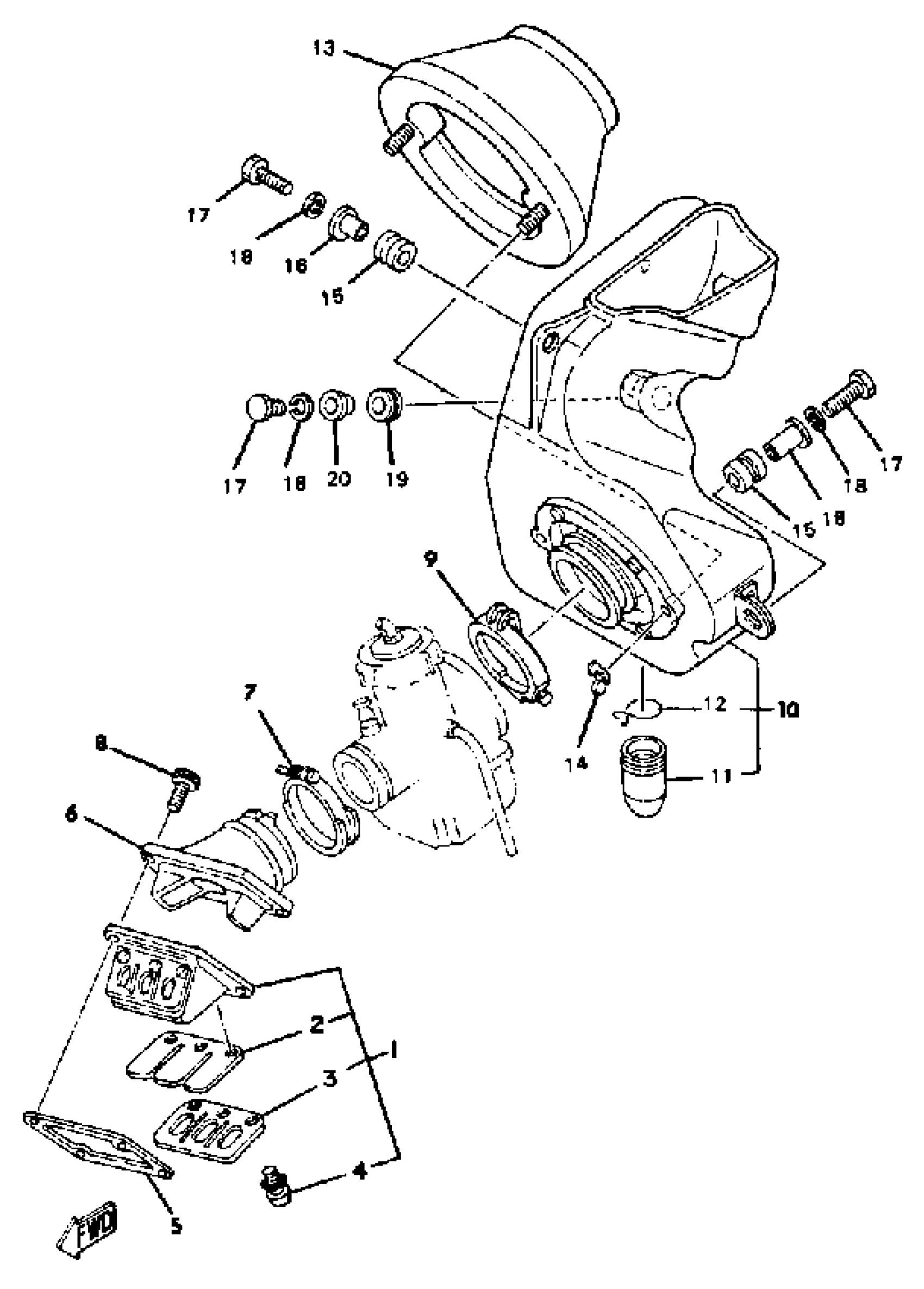

Yamaha YZ250G (YZ250G_H) 1980 INTAKE YZ250G Diagram

#

Description
Price

1

REED VALVE ASSEMBLY

2X5-13610-00-00

Unavailable

2

. REED, VALVE

2K7-13613-00-00

Unavailable

3

. STOPPER, REED VALVE

2X5-13616-00-00

Unavailable

4

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

5

GASKET, VALVE SEAT

80L-13621-01-00

$10.99

6

JOINT, CARBURETOR

3R4-13565-00-00

$183.99

7

CLAMP, HOSE

90460-51109-00

Unavailable

8

BOLT,SOCKET

91317-06020-00

Unavailable

9

CLAMP, HOSE

90460-68231-00

Unavailable

10

AIR CLNR CASE ASSEMBLY

3R4-14401-00-00

Unavailable

11

SEAL

1W4-14457-00-00

Unavailable

12

CLIP

90467-20M15-00

Unavailable

13

ELEMENT, AIR CLNR

3R4-W1442-01-00

Unavailable

14

NUT, WING (646)

90175-06008-00

$2.17

15

GROMMET 839774310000

90480-14023-00

$7.49

16

COLLAR 437216330000

90387-07391-00

Unavailable

17

BOLT, HEXAGON

97017-06025-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

GROMMET (1E6)

90480-15058-00

Unavailable

20

COLLAR

90387-07562-00

Unavailable
