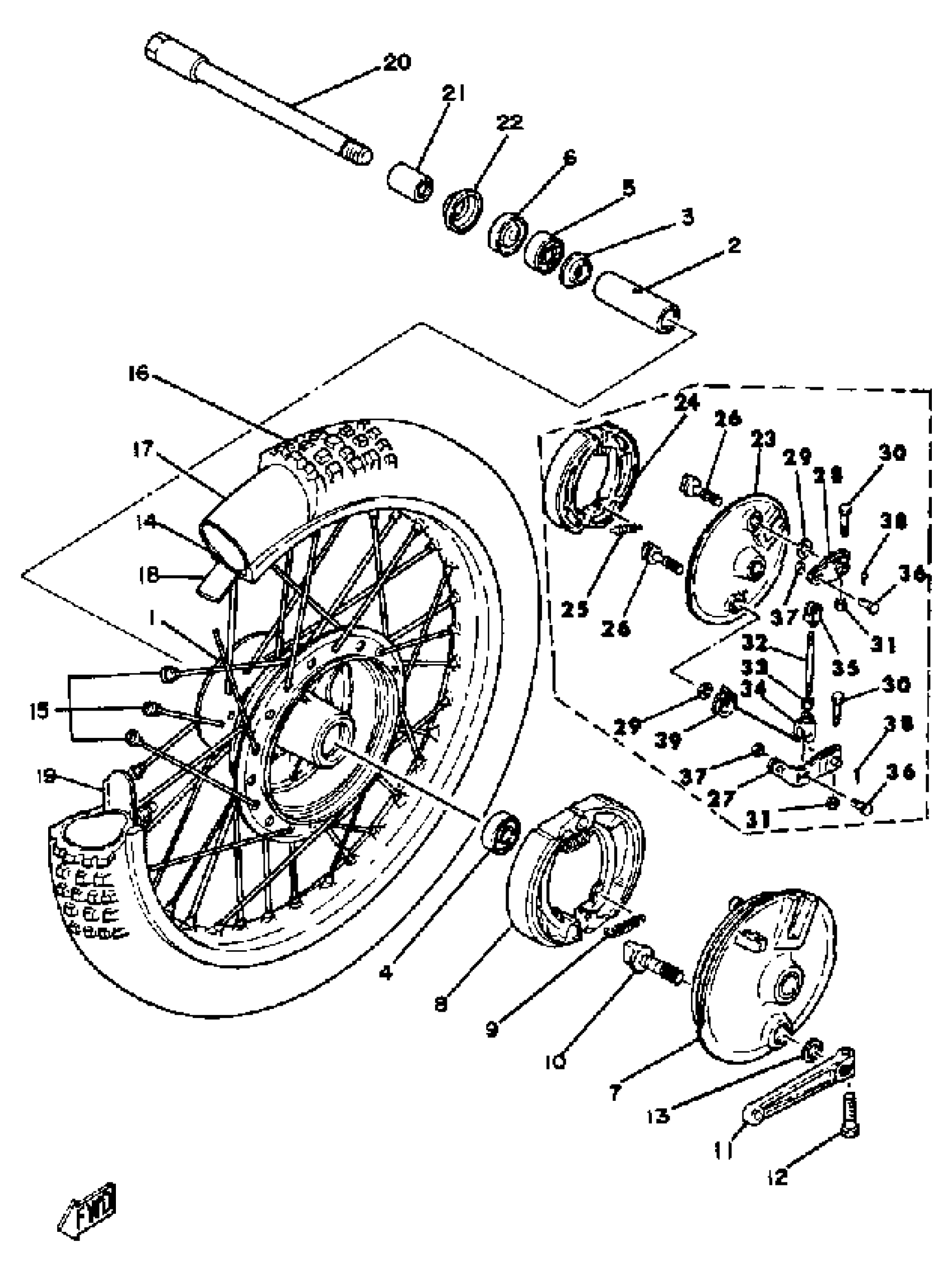

Yamaha YZ250G (YZ250G_H) 1980 FRONT WHEEL YZ250H Diagram

#

Description
Price

1

HUB, FRONT

1K7-25111-10-98

Unavailable

2

SPACER

90560-15116-00

Unavailable

3

FLANGE, SPACER

146-25116-00-00

$8.99

4

BEARING(3DL)

93306-20226-00

$38.99

5

BEARING

93306-20205-00

$38.99

6

OIL SEAL (20X35X7-136)

93102-20009-00

$10.49

7

BRAKE SHOE PLT ASSEMBLY (1W1-25121-02-98)

1W1-25016-11-98

Unavailable

8

BRAKE SHOE KIT

322-W253A-10-00

$29.99

9

SPRING (5T9)

90506-17328-00

Unavailable

10

CAMSHAFT

24X-25151-00-00

Unavailable

11

LEVER, CAMSHAFT 1

322-25155-00-00

Unavailable

12

BOLT, HEXAGON (462)

90101-06291-00

$8.49

13

SEAL, CAMSHAFT

137-25159-00-00

Unavailable

14

RIM 1.60X21

94416-21320-00

Unavailable

15

SPOKE SET, FRONT

2W6-25104-02-00

Unavailable

16

300-21 MARK 2 (TT)

(94130-21654-00)

Unavailable

17

TUBE

94230-21126-00

Unavailable

18

BAND, RIM

(94330-21088-00)

Unavailable

19

SPACER, BEAD

5X2-25394-00-00

Unavailable

20

AXLE, WHEEL

3R4-25181-01-00

Unavailable

21

COLLAR (34L)

90387-152J3-00

Unavailable

22

COVER, HUB DUST

322-25118-00-00

Unavailable

23

PLATE, BRAKE SHOE

3R5-25121-01-98

Unavailable

24

BRAKE SHOE KIT

4V4-W253A-00-00

Unavailable

25

SPRING (5T9)

90506-17328-00

Unavailable

26

CAMSHAFT

23X-25151-00-00

Unavailable

27

LEVER, CAMSHAFT 1

3R5-25155-00-00

Unavailable

28

LEVER, CAMSHAFT 2

3R5-25156-00-00

Unavailable

29

SEAL, CAMSHAFT

137-25159-00-00

Unavailable

30

BOLT, HEXAGON (538)

90101-06278-00

Unavailable

31

NUT, HEXAGON

95380-06600-00

Unavailable

32

ROD, CONNECTING

3R5-25161-00-00

Unavailable

33

NUT(650)

95380-06700-00

Unavailable

34

END, ROD 1

152-25163-00-00

Unavailable

35

END, ROD 1

152-25163-00-00

Unavailable

36

PIN, WITH HOLE (248-27228-00)

90240-06006-00

Unavailable

37

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

38

PIN, COTTER

91490-20025-00

Unavailable

39

SPRING, TORSION

90508-20425-00

Unavailable
