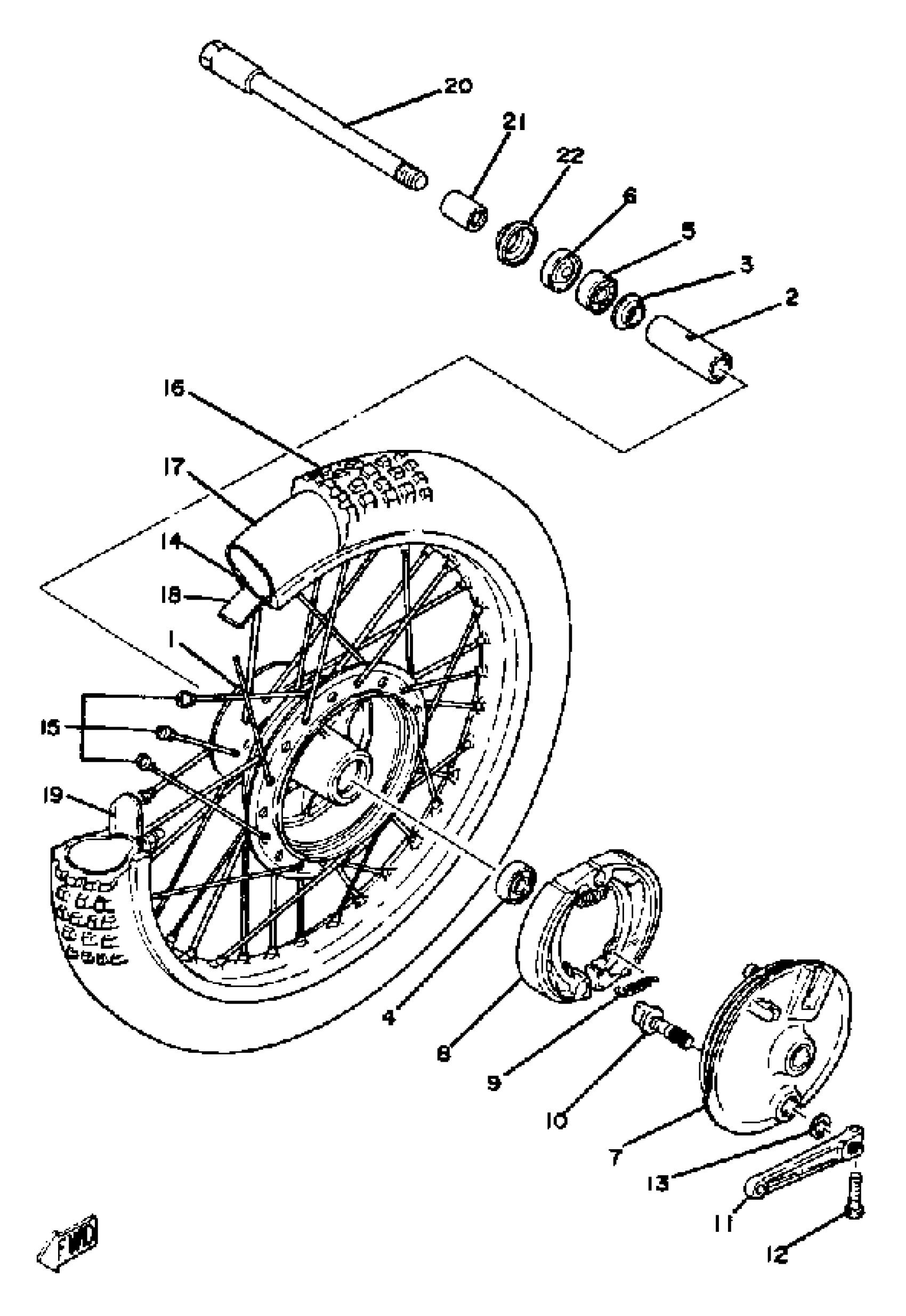

Yamaha YZ250G (YZ250G_H) 1980 FRONT WHEEL YZ250G Diagram

#

Description
Price

1

HUB, FRONT

1K7-25111-10-98

Unavailable

2

SPACER

90560-15116-00

Unavailable

3

FLANGE, SPACER

146-25116-00-00

$8.99

4

BEARING(3DL)

93306-20226-00

$38.99

5

BEARING

93306-20205-00

$38.99

6

OIL SEAL (20X35X7-136)

93102-20009-00

$10.49

7

BRAKE SHOE PLT ASSEMBLY (1W1-25121-02-98)

1W1-25016-11-98

Unavailable

8

BRAKE SHOE KIT

322-W253A-10-00

$29.99

9

SPRING (5T9)

90506-17328-00

Unavailable

10

CAMSHAFT

24X-25151-00-00

Unavailable

11

LEVER, CAMSHAFT 1

322-25155-00-00

Unavailable

12

BOLT, HEXAGON (462)

90101-06291-00

$8.49

13

SEAL, CAMSHAFT

137-25159-00-00

Unavailable

14

RIM 1.60X21

94416-21234-00

Unavailable

15

SPOKE SET, FRONT

2W6-25104-02-00

Unavailable

16

BS 300X21 M21

(94130-21554-00)

Unavailable

17

TUBE, FRONT (2A6)

94227-21123-00

Unavailable

18

BAND, RIM (2A6)

94330-21084-00

Unavailable

19

SPACER, BEAD

5X2-25394-00-00

Unavailable

20

AXLE, WHEEL

3R4-25181-01-00

Unavailable

21

COLLAR (34L)

90387-152J3-00

Unavailable

22

COVER, HUB DUST

322-25118-00-00

Unavailable
