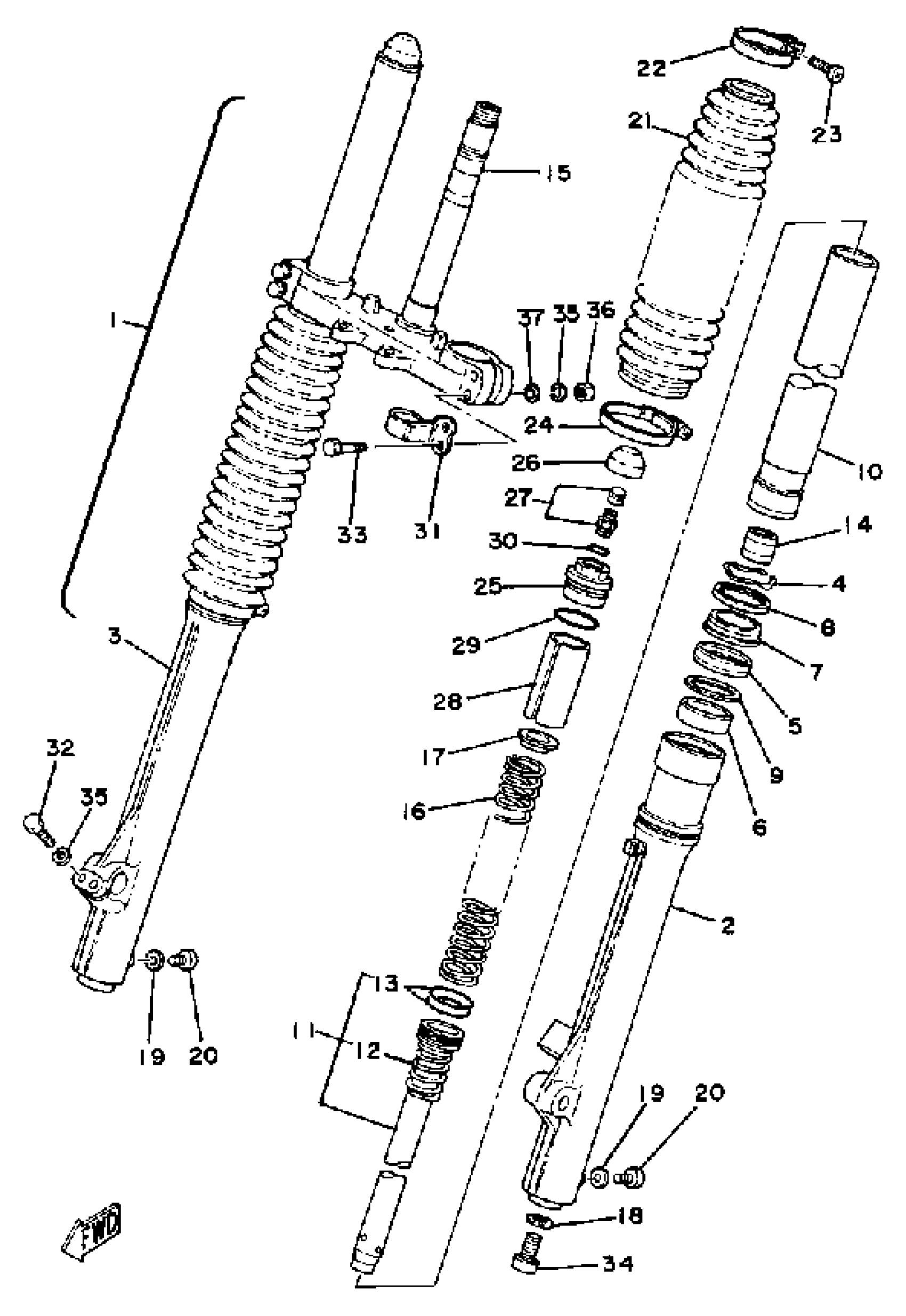

Yamaha YZ250G (YZ250G_H) 1980 FRONT FORK YZ250H Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY

(4V4-23101-L1-00)

Unavailable

2

TUBE, OUTER 1

(4V4-23126-L1-00)

Unavailable

3

TUBE, OUTER 2

(4V4-23136-L1-00)

Unavailable

4

RING, SNAP

4V4-23153-L0-00

$9.99

5

OIL SEAL

23X-23145-L0-00

$32.99

6

METAL, SLIDE 1

5EB-23125-00-00

$32.99

7

. SEAL, DUST

4V4-23144-L0-00

Unavailable

8

. COVER, DUST SEAL

4V4-23148-L0-00

Unavailable

9

WASHER

4V4-23146-L0-00

$6.99

10

. INNER TUBE 1

4V4-23110-L0-00

Unavailable

11

CYLINDER, FRTFRK

(4V4-23170-L0-00)

Unavailable

12

SPRING, SUB

(4V4-23152-L0-00)

Unavailable

13

.. RING, PISTON FRONT FORK

4V4-23157-L0-00

Unavailable

14

. SPINDLE, TAPER

4V4-23173-L0-00

Unavailable

15

UNDER BRACKET

(4V4-23340-L0-33)

Unavailable

16

SPRING, FRTFRK SOFT

(4V4-23141-10-00)

Unavailable

16

. SPRING, FRTFRK HARD (=031) (USE SPACER 4V4-23118-)

4V4-23141-20-00

Unavailable

16

SPRING, FRONT FORK

(4V4-23141-L0-00)

Unavailable

17

SEAT, SPRING UPPER

4V4-23142-L0-00

Unavailable

18

GASKET

4V4-23158-L0-00

Unavailable

19

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

20

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

21

. BOOT, FRONT FORK

4V4-23191-L0-00

Unavailable

22

. BAND

4V4-23192-L0-00

Unavailable

23

SCREW, PAN HEAD

98517-04025-00

Unavailable

24

. BAND

23X-23489-L0-00

Unavailable

25

. BOLT, CAP

4V4-23111-L0-00

Unavailable

26

. COVER, VALVE

1W1-23185-L0-00

Unavailable

27

AIR VALVE COMP.

4V4-23190-L0-00

Unavailable

28

. SPACER (L=80)

5X6-23118-10-00

Unavailable

28

. SPACER (L=80)

5X6-23118-10-00

Unavailable

28

. SPACER

5X6-23118-L0-00

Unavailable

29

O-RING

4V4-23188-L1-00

Unavailable

30

O-RING

3J2-23147-00-00

Unavailable

31

GUIDE, WIRE

3R4-23389-00-00

Unavailable

32

BOLT, AXLE HOLDER

(1W4-23128-L0-00)

Unavailable

33

BOLT (1E6)

90101-08340-00

Unavailable

34

BOLT

4V4-23181-L0-00

Unavailable

35

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

36

NUT(6L2)

95333-08600-00

Unavailable

37

.. WASHER, PLATE

92990-08600-00

Unavailable
