CRANKSHAFT PISTON YZ250G H

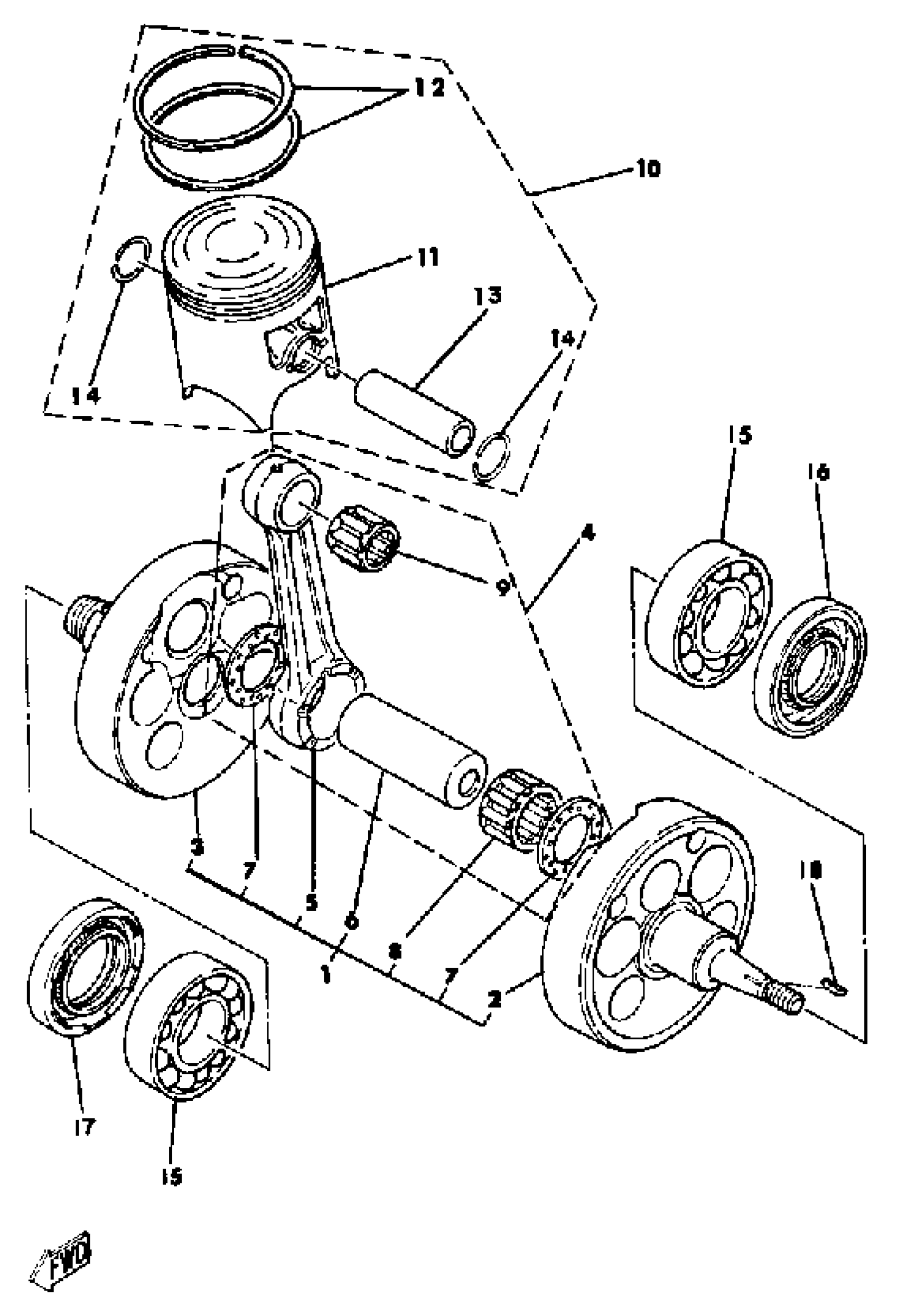

Yamaha YZ250G (YZ250G_H) 1980 CRANKSHAFT PISTON YZ250G H Diagram
#
1
CRANKSHAFT ASSEMBLY
(3R4-11400-00-00)
Unavailable
2
. CRANK 1
3R4-11412-00-00
Unavailable
3
. CRANK 2
3R4-11422-00-00
Unavailable
4
CONNECTING ROD ASSY
5X5-11650-00-00
Unavailable
5
.. ROD, CONNECTING
498-11651-00-00
Unavailable
8
BEARING, CYLINDRICAL(4JW)
93310-425P2-00
Unavailable
10
UNAVAILABLE IN PRICE BOOK (1ST O.S)
3R4-11620-10-00
Unavailable
10
PISTON KIT STD
(3R4-11630-00-00)
Unavailable
10
PISTON KIT 2ND (2ND O.S)
3R4-11630-20-00
Unavailable
10
PISTON KIT 3RD (3RD O.S)
3R4-11630-30-00
Unavailable
10
PISTON KIT 4TH (4TH O.S)
3R4-11630-40-00
Unavailable
11
. PISTON STD (STD)
3R4-11631-00-95
Unavailable
11
. PISTON 1 O/S 025 (1ST OS)
3R4-11635-00-00
Unavailable
11
. PISTON 2 O/S 050 (2ND OS)
3R4-11636-00-00
Unavailable
11
. PISTON 3 O/S 075 (3RD OS)
3R4-11637-00-00
Unavailable
11
. PISTON 4 O/S 100 (4TH OS)
3R4-11638-00-00
Unavailable
12
PISTON RINGSET STD (STD)
2X7-11601-00-00
Unavailable
12
PISTON RINGSET 1ST (1W5-11601-10) (1ST O.S.)
2X7-11601-10-00
Unavailable
12
PISTON RINGSET 2ND (2ND O.S.)
2X7-11601-20-00
Unavailable
12
PISTON RINGSET 3RD (3RD O.S.)
2X7-11601-30-00
Unavailable
12
PISTON RINGSET 4TH (4TH O.S.)
2X7-11601-40-00
Unavailable
13
PIN, PISTON
214-11633-00-00
Unavailable
14
CIRCLIP (2F1)
93450-19052-00
Unavailable
15
BEARING (5X5)
93306-20627-00
Unavailable
16
OIL SEAL(38V)
93103-30150-00
Unavailable
17
OIL SEAL (434)
93103-40091-00
Unavailable
18
KEY WOODRUFF 146115450000
90280-03017-00
Unavailable
