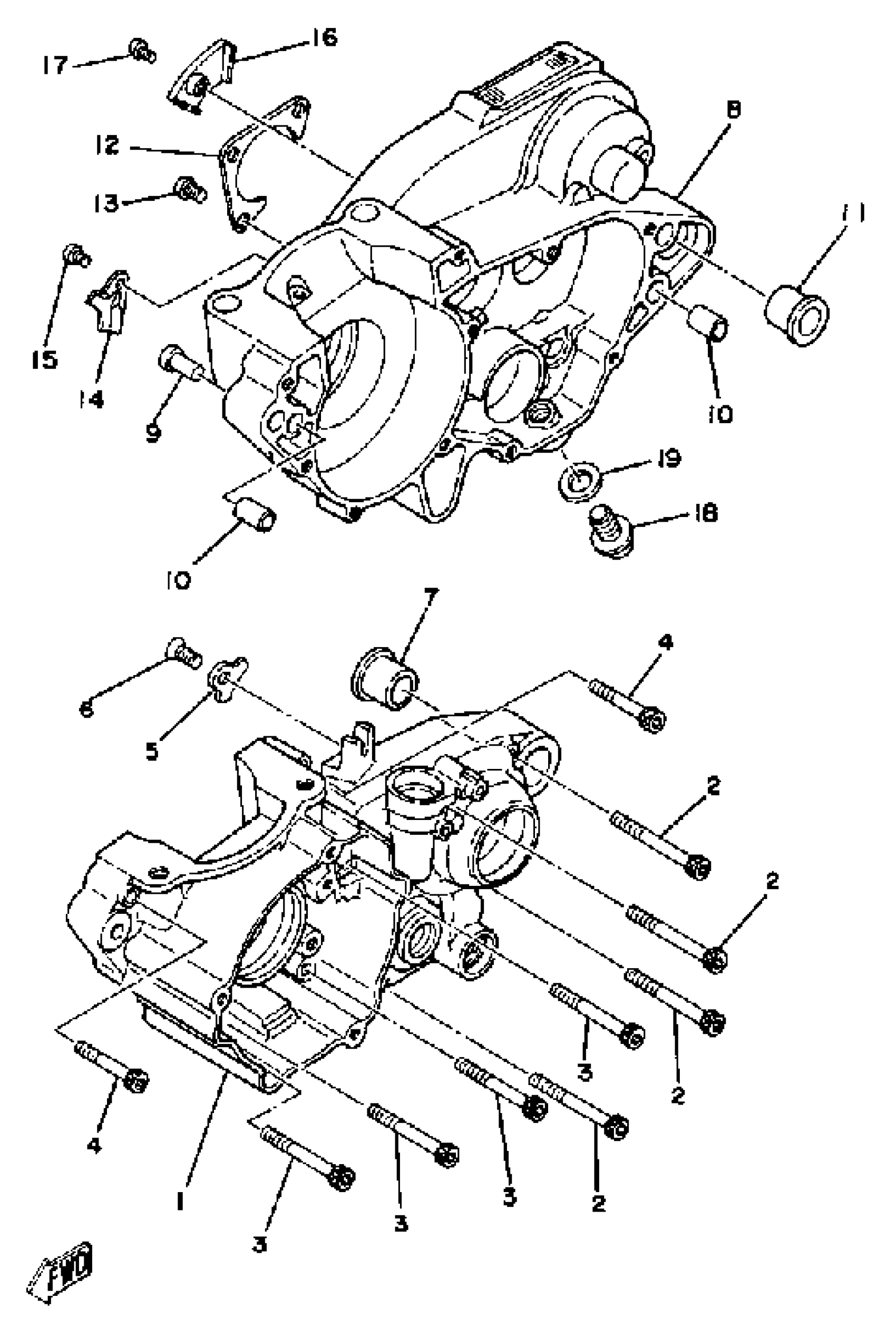

Yamaha YZ250G (YZ250G_H) 1980 CRANKCASE YZ250H Diagram

#

Description
Price

1

CRANKCASE 1

99999-01383-00

Unavailable

2

BOLT,SOCKET

91317-06060-00

$3.76

3

BOLT,SOCKET

91317-06055-00

$4.19

4

BOLT,SOCKET

91317-06040-00

$3.76

5

PLATE, BEARING COVER

3AK-15383-01-00

$8.99

6

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

Unavailable

7

COLLAR

90387-16776-00

Unavailable

8

CRANKCASE 2

3R4-15121-02-00

Unavailable

9

PLUG (17J)

90338-07124-00

$10.49

10

PIN, DOWEL

99530-12016-00

$4.89

11

COLLAR

90387-16776-00

Unavailable

12

PLATE, BEARING COVER

3R4-15381-00-00

$4.68

13

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

14

HOLDER

3R4-15118-00-00

Unavailable

15

SCREW, PAN

98507-08010-00

$8.49

16

PLATE

3R4-15113-00-00

Unavailable

17

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

18

PLUG, STRAIGHT SCREW (22F)

90340-12097-00

Unavailable

19

GASKET (3JD1)

90430-12207-00

Unavailable
