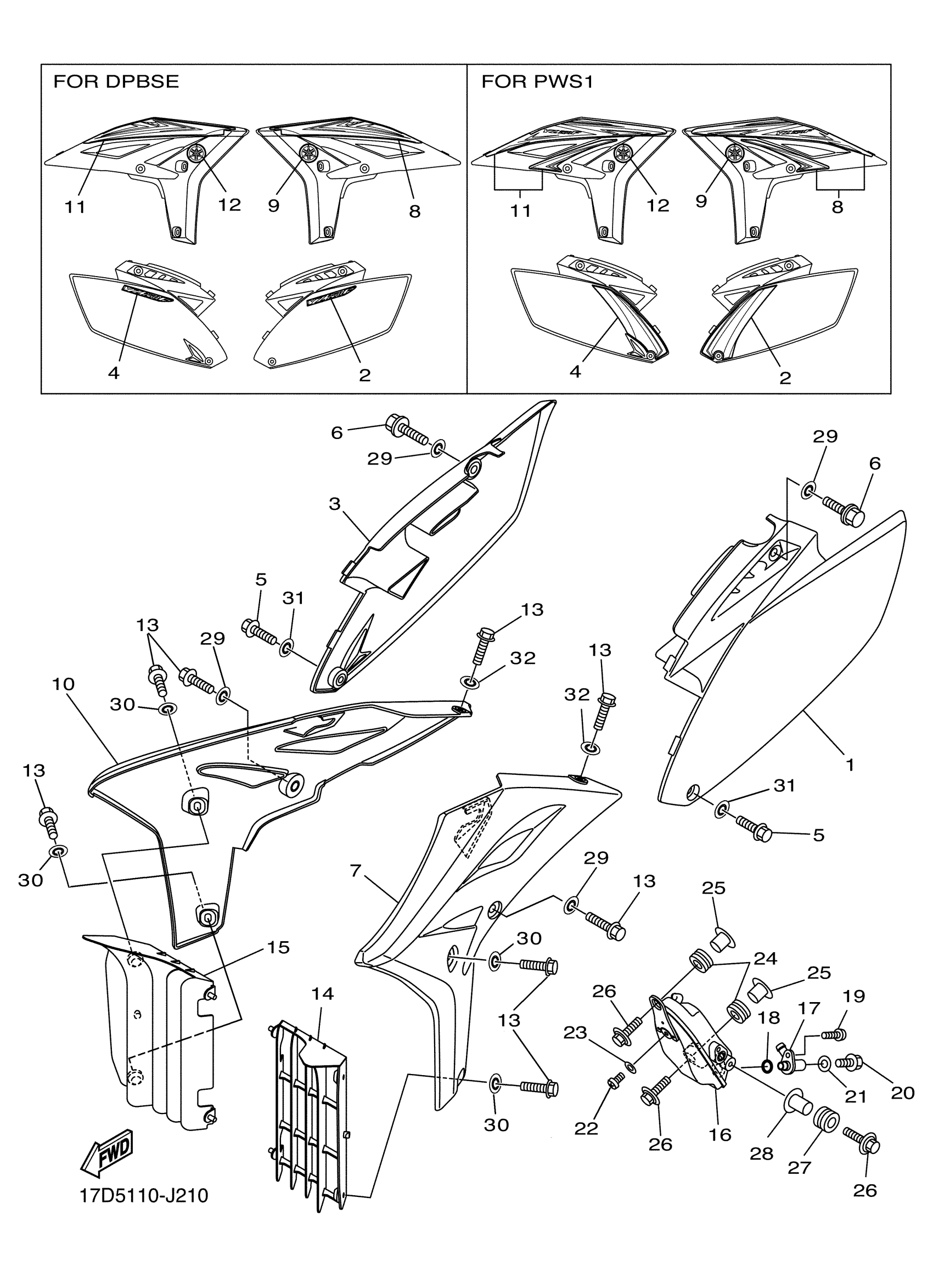

Yamaha YZ250FZW (YZ250F) 17D50 2010 SIDE COVER OIL TANK Diagram

#

Description
Price

1

SIDE COVER ASSY 1

17D-21710-00-00

Unavailable

2

EMBLEM 1

5XC-2163G-30-00

$7.99

3

SIDE COVER ASSY 2

17D-21720-00-00

Unavailable

4

EMBLEM 1

5XC-2163G-30-00

$7.99

5

BOLT, FLANGE

90105-06103-00

$4.88

6

BOLT, WITH WASHER

90119-08095-00

$8.49

7

SIDE COVER ASSY 3

17D-21730-00-00

$32.99

8

GRAPHIC, 3

17D-2174G-00-00

Unavailable

9

TUNING FORK MARK

5FK-2175C-01-00

$8.99

10

SIDE COVER ASSY 4

17D-21740-00-00

Unavailable

11

GRAPHIC, 4

17D-2174H-00-00

Unavailable

12

TUNING FORK MARK

5FK-2175C-01-00

$8.99

13

BOLT, FLANGE

90105-06064-00

Unavailable

14

PANEL 1

17D-2172A-00-00

Unavailable

15

PANEL 1

17D-2172A-10-00

Unavailable

16

TANK, OIL

17D-21751-00-00

Unavailable

17

PIPE, OIL 1

17D-13416-00-00

Unavailable

18

O-RING (2H9)

93210-14369-00

Unavailable

19

BOLT, BUTTON HEAD

92012-06016-00

Unavailable

20

BOLT, FLANGE

90105-08151-00

Unavailable

21

WASHER, PLATE (4L0)

90201-082A6-00

Unavailable

22

SCREW, BIND(J45)

98980-06012-00

Unavailable

23

WASHER, PLATE (1L9)

90201-06630-00

Unavailable

24

GROMMET (4N0)

90480-10289-00

Unavailable

25

COLLAR

90387-06150-00

Unavailable

26

BOLT, WITH WASHER

90119-06255-00

Unavailable

27

GROMMET(1JK)

90480-14433-00

Unavailable

28

COLLAR

90387-06161-00

Unavailable

29

COLLAR

5BE-21749-00-00

Unavailable

30

COLLAR

17D-21749-00-00

Unavailable

31

COLLAR

90387-08086-00

Unavailable

32

COLLAR

90387-06009-00

Unavailable
