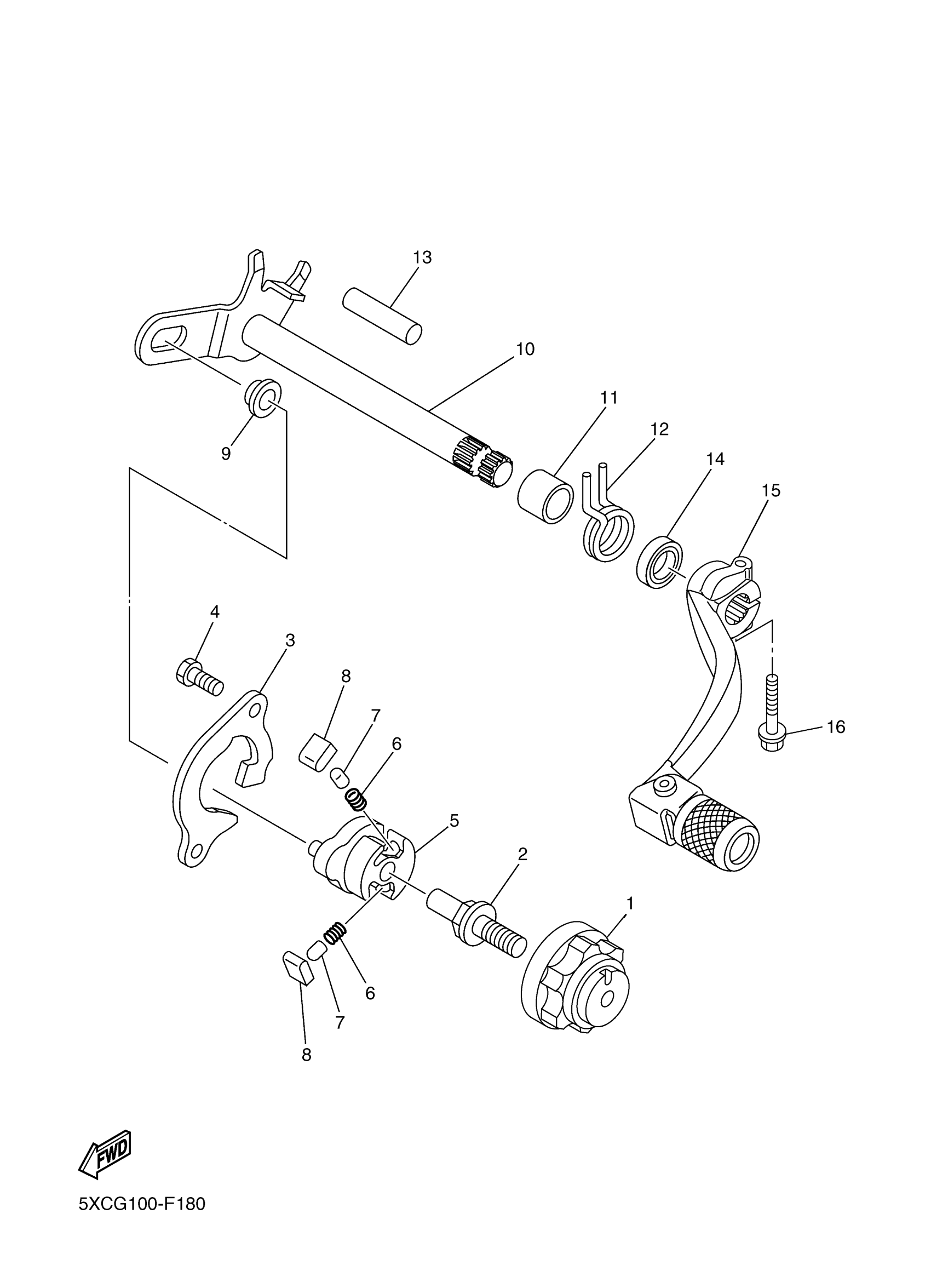

Yamaha YZ250FZW (YZ250F) 17D50 2010 SHIFT SHAFT Diagram

Description

Price

SEGMENT

2S2-18185-00-00

$65.99

PIN, SHIFT

3XJ-18173-10-00

$19.99

GUIDE, SHIFT

5BE-18172-00-00

$24.99

BOLT

90101-06042-00

$5.60

LEVER, SHIFT 2

5LP-18122-01-00

$85.99

SPRING, COMPRESSION(3XJ)

90501-052G5-00

$8.49

PIN, PAWL

3XJ-18184-00-00

$15.49

PAWL, SHIFTER

3XJ-18182-00-00

$15.49

ROLLER, SHIFT LEVER

3XJ-18178-00-00

$13.49

SHIFT SHAFT ASSY

5UL-18101-20-00

$108.99

COLLAR

90387-12033-00

$7.49

SPRING, TORSION(4DA)

90508-291A8-00

$9.49

PIN, DOWEL

93608-33002-00

$15.99

OIL SEAL (4G0)

93102-12224-00

$10.49

SHIFT PEDAL ASSY

5XC-18110-10-00

$110.99

BOLT, FLANGE

90105-06127-00

Unavailable
