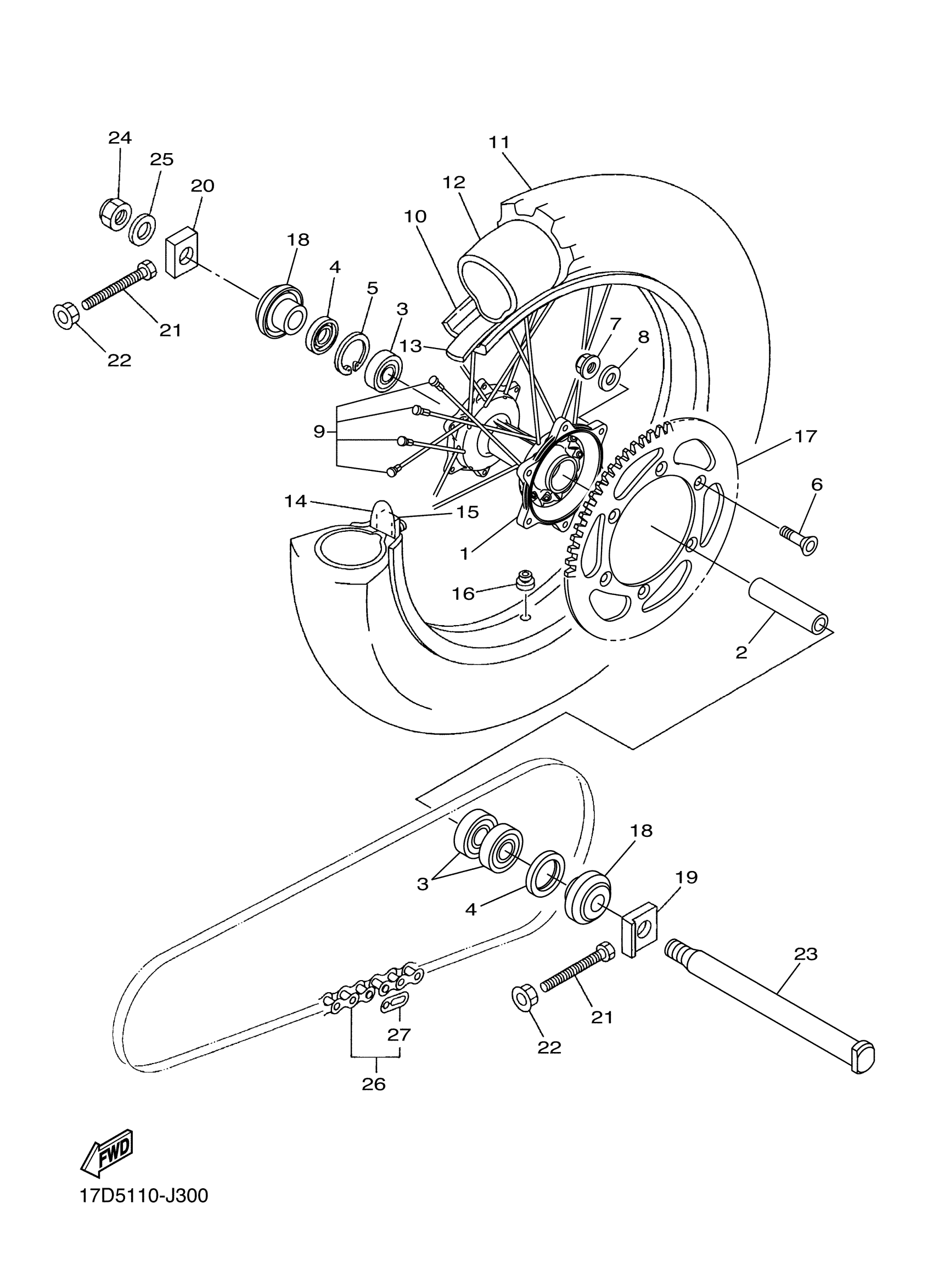

Yamaha YZ250FZW (YZ250F) 17D50 2010 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

17D-25311-00-00

$300.99

2

SPACER, BEARING

17D-25317-00-00

$44.99

3

BEARING

93306-90510-00

$45.99

4

OIL SEAL (697)

93102-32M07-00

$18.99

5

CIRCLIP

99009-42700-00

$7.49

6

BOLT

90109-08078-00

$5.60

7

NUT, SELF-LOCKING

90185-08008-00

$7.49

8

WASHER, PLATE

90201-08048-00

$5.60

9

SPOKE SET, REAR

34P-25304-00-00

$183.99

10

RIM (1.85-19)

94418-19026-00

Unavailable

11

TIRE (100/90-19 57M M404)

94110-19019-00

Unavailable

12

TUBE(42X)

94210-19222-00

$49.99

13

BAND, RIM

94327-19111-00

$14.99

14

SPACER, BEAD

4XM-25394-00-00

$46.99

15

DAMPER

4XM-25364-00-00

$7.99

16

GROMMET (397)

90480-10068-00

Unavailable

17

SPROCKET, DRIVEN (47T)

17D-25447-50-00

Unavailable

17

SPROCKET, DRIVEN (48T)

17D-25448-50-00

Unavailable

17

SPROCKET, DRIVEN (49T)

17D-25449-50-00

Unavailable

17

SPROCKET, DRIVEN (50T)

17D-25450-50-00

Unavailable

17

SPROCKET, DRIVEN (51T)

17D-25451-50-00

Unavailable

17

SPROCKET, DRIVEN (52T)

17D-25452-50-00

Unavailable

18

COLLAR ASSY

17D-2530S-01-00

Unavailable

19

PULLER, CHAIN 1

17D-25388-00-00

Unavailable

20

PULLER, CHAIN 2

17D-25389-00-00

Unavailable

21

BOLT

90101-08006-00

Unavailable

22

NUT

90179-08019-00

Unavailable

23

AXLE, WHEEL

17D-25381-00-00

Unavailable

24

NUT, SELF-LOCKING

90185-22011-00

Unavailable

25

WASHER, PLATE

90201-22022-00

Unavailable

26

CHAIN

9Y581-92111-00

Unavailable

27

JOINT, CHAIN

94681-68001-00

Unavailable
