Description

Price

1

BEARING(4EW)

93332-00078-00

$64.99

2

COVER, BALL RACE 2

4EW-23416-00-00

$34.99

3

NUT

90179-28013-00

$35.99

4

WASHER, PLATE(1YW)

90201-286K9-00

$7.49

5

CROWN, HANDLE

17D-23435-01-00

Unavailable

6

NUT

90170-24003-00

$25.99

7

WASHER, PLATE

90201-24016-00

$8.49

8

HOLDER, HANDLE UPPER

5XC-23441-90-00

$32.99

9

HOLDER, HANDLE LOWER

5UM-23442-E0-00

Unavailable

10

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

11

NUT, S/L FLANGE

95602-10200-00

$4.82

12

BOLT, FLANGE

90105-08154-00

$7.49

13

PLATE, NUMBER

1C3-23485-61-00

$27.99

14

BOLT, WITH WASHER

90119-06151-00

$4.72

15

GUIDE, CABLE

5XE-23389-00-00

$17.49

16

BOLT, FLANGE

90105-06107-00

Unavailable

17

COLLAR

90387-06104-00

Unavailable

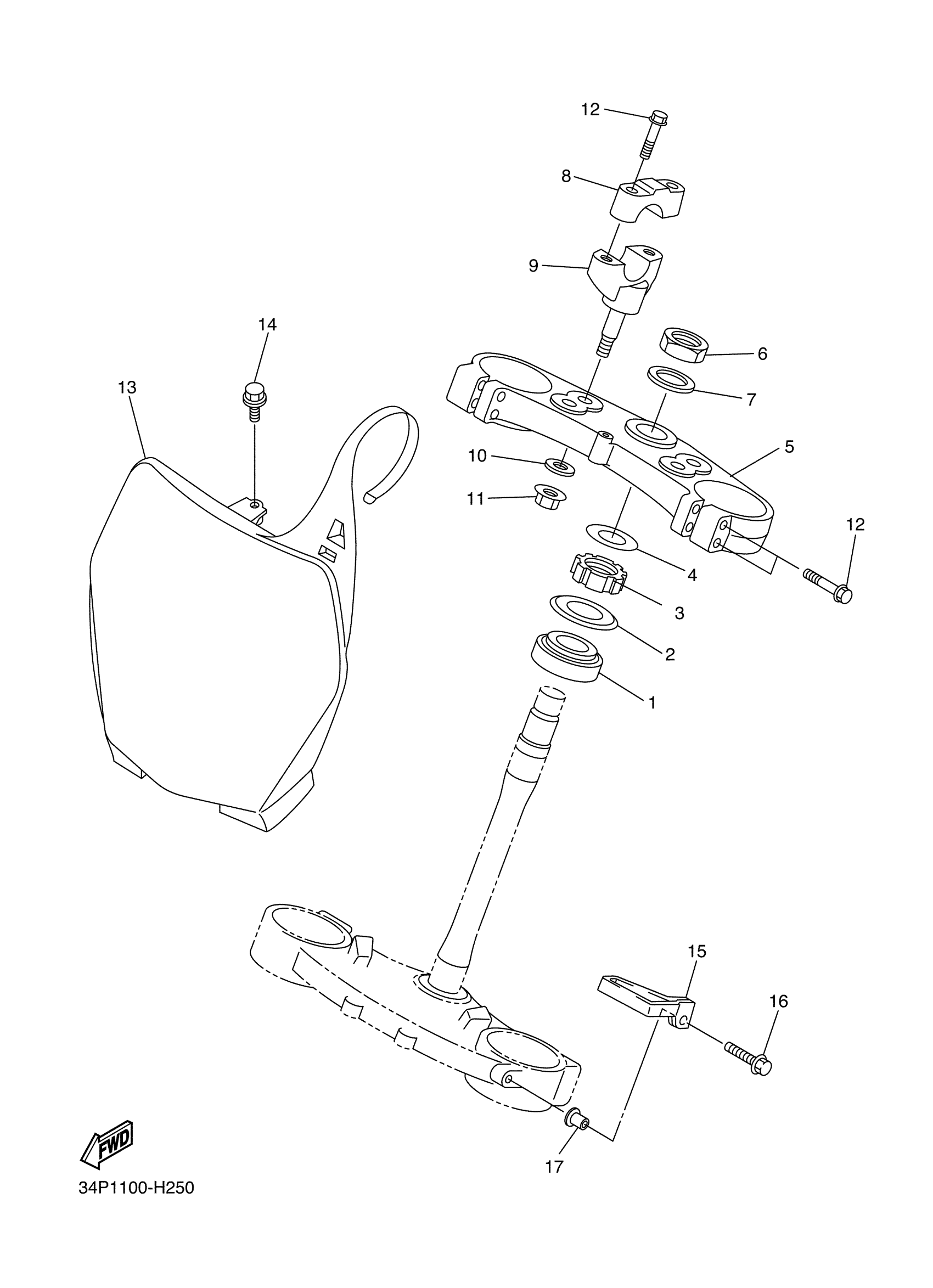

Yamaha YZ250FYW (YZ250F) 5XCR0 2009 STEERING Diagram

BEARING(4EW)

COVER, BALL RACE 2

NUT

WASHER, PLATE(1YW)

CROWN, HANDLE

NUT

WASHER, PLATE

HOLDER, HANDLE UPPER

HOLDER, HANDLE LOWER

958-69527-00 WASHER, PLAIN

NUT, S/L FLANGE

BOLT, FLANGE

PLATE, NUMBER

BOLT, WITH WASHER

GUIDE, CABLE

BOLT, FLANGE

COLLAR
