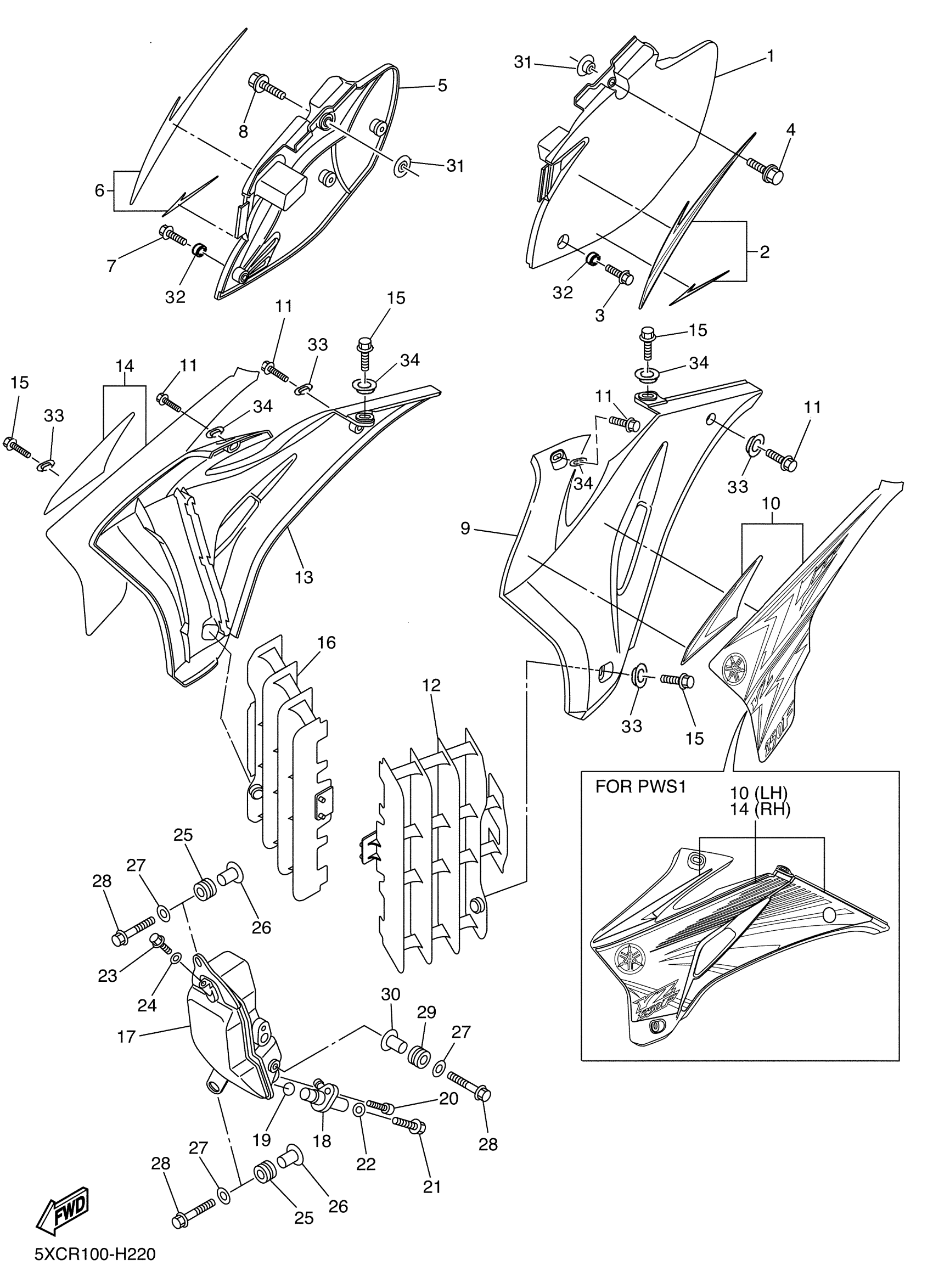

Yamaha YZ250FYW (YZ250F) 5XCR0 2009 SIDE COVER OIL TANK Diagram

#

Description
Price

1

SIDE COVER ASSY 1

5XC-21710-90-00

$29.99

2

GRAPHIC SET (DEEP PURPLISH BLUE SOLID E)

34P-2167A-00-00

Unavailable

3

BOLT, FLANGE

90105-06103-00

$4.88

4

BOLT, WITH WASHER

90119-08095-00

$8.49

5

SIDE COVER ASSY 2

5XC-21720-90-00

$33.99

6

GRAPHIC SET 2

34P-2167B-00-00

Unavailable

7

BOLT, FLANGE

90105-06103-00

$4.88

8

BOLT, WITH WASHER

90119-08095-00

$8.49

9

SIDE COVER ASSY 3

5XC-21730-90-00

$32.99

10

GRAPHIC SET 1

34P-2173L-19-00

Unavailable

11

BOLT, FLANGE

90105-06064-00

Unavailable

12

PANEL 1

2S2-2172A-70-00

$40.99

13

SIDE COVER ASSY 4

5XC-21740-90-00

$29.99

14

GRAPHIC SET 2

34P-2174L-10-00

$120.99

15

BOLT, FLANGE

90105-06064-00

Unavailable

16

PANEL 1

2S2-2172A-80-00

Unavailable

17

TANK, OIL

5XC-21751-G0-00

Unavailable

18

PIPE, OIL 1

5XC-13416-90-00

Unavailable

19

O-RING (2H9)

93210-14369-00

Unavailable

20

BOLT(3MA)

91312-06016-00

Unavailable

21

BOLT, FLANGE

90105-08151-00

Unavailable

22

WASHER, PLATE (4L0)

90201-082A6-00

Unavailable

23

BOLT, FLANGE

90105-06128-00

Unavailable

24

WASHER, PLATE (1L9)

90201-06630-00

Unavailable

25

GROMMET (4N0)

90480-10289-00

Unavailable

26

COLLAR

90387-06150-00

Unavailable

27

WASHER, PLATE (583 REAR FENDER

90201-06571-00

Unavailable

28

BOLT, FLANGE

90105-06112-00

Unavailable

29

GROMMET(1JK)

90480-14433-00

Unavailable

30

COLLAR

90387-06161-00

Unavailable

31

. COLLAR

5BE-27149-00-00

Unavailable

32

COLLAR

90387-06009-00

Unavailable

33

COLLAR

5TA-21749-00-00

Unavailable

34

COLLAR

5XC-21749-90-00

Unavailable
