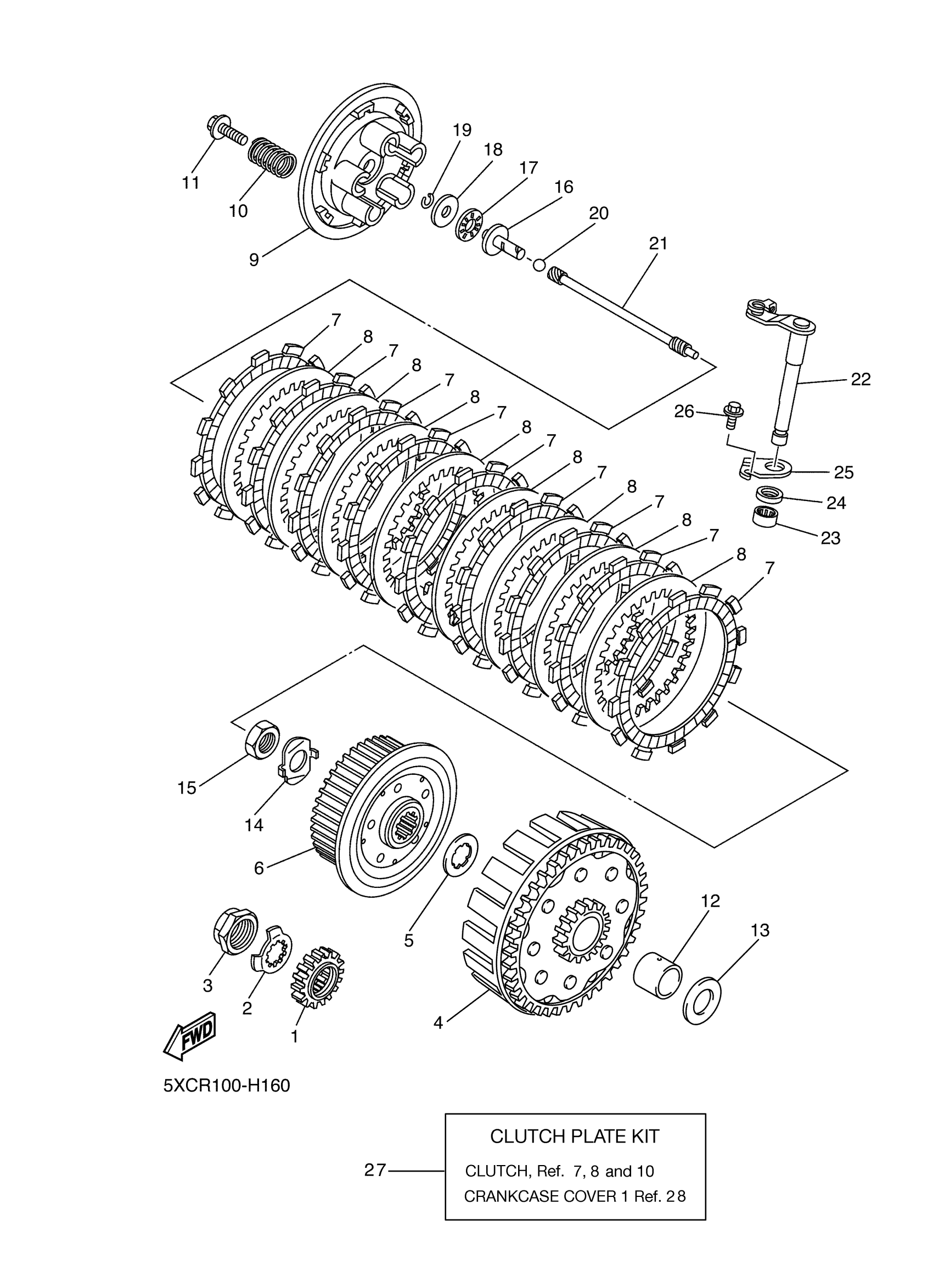

Yamaha YZ250FYW (YZ250F) 5XCR0 2009 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE

5NL-16111-01-00

Unavailable

2

WASHER, LOCK

90215-20003-00

$8.49

3

NUT

90179-18001-00

$17.99

4

PRIMARY DRIVEN GEAR COMP.

5XC-16150-10-00

Unavailable

5

PLATE, THRUST 1

5XC-16154-00-00

Unavailable

6

BOSS, CLUTCH

5NL-16371-31-00

Unavailable

7

PLATE, FRICTION

5XC-16321-00-00

$29.99

8

PLATE, CLUTCH 2

5NL-16325-20-00

$7.99

9

PLATE, PRESSURE 1

5HD-16351-00-00

$53.99

10

SPRING, COMPRESSION

90501-230A2-00

$7.49

11

SCREW, WITH WASHER

90159-06049-00

$8.49

12

SPACER 1

5XC-16181-00-00

Unavailable

13

WASHER, PLATE

90201-22013-00

$8.49

14

WASHER, LOCK(4KB)

90215-16289-00

$9.49

15

NUT, HEXAGON (30X)

90170-16326-00

$13.49

16

ROD, PUSH 1

1SM-16356-00-00

Unavailable

17

BEARING, THRUST(3AY)

93340-21008-00

Unavailable

18

WASHER, PLATE (24Y)

90201-080H1-00

Unavailable

19

CIRCLIP

93440-07182-00

Unavailable

20

BALL (498)

93511-32027-00

Unavailable

21

ROD, PUSH 2

5NL-16357-11-00

Unavailable

22

PUSH LEVER COMP.

5XC-16381-00-00

Unavailable

23

BEARING

93317-11287-00

Unavailable

24

OIL SEAL (4G0)

93102-12224-00

Unavailable

25

PLATE, SEAT

4JT-16384-00-00

Unavailable

26

BOLT, FLANGE

95022-06010-00

Unavailable

27

CLUTCH PLATE KIT

5XC-W001G-20-00

Unavailable
