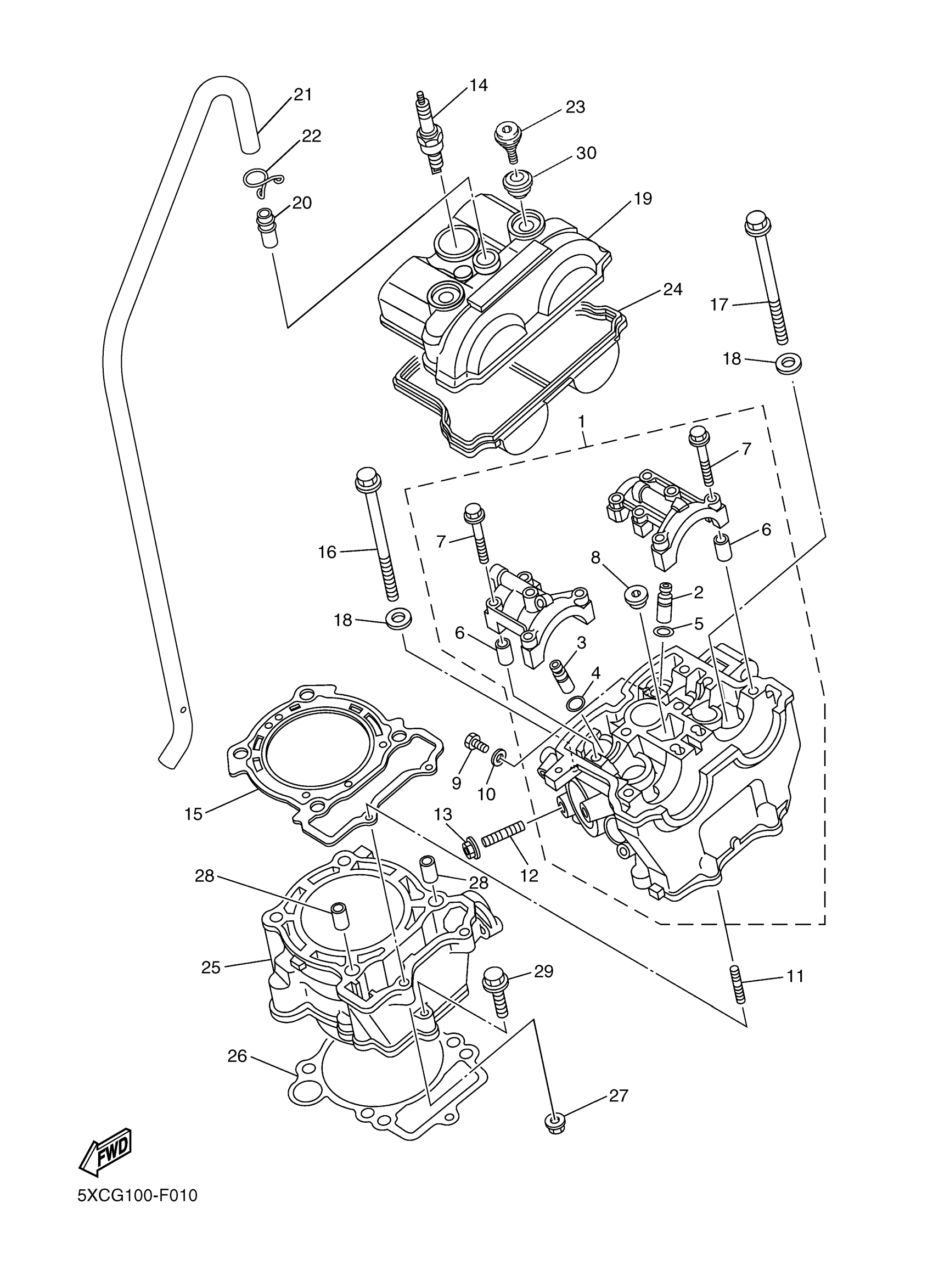

Yamaha YZ250FXW (YZ250F) 5XCL0 2008 CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

5XC-11102-21-00

$915.13

2

GUIDE, INTAKE VALVE

5NL-11133-10-00

$53.86

3

GUIDE, EXHAUST VALVE

5NL-11134-10-00

$71.87

4

CIRCLIP(1WG)

93440-10153-00

$1.95

5

CIRCLIP(1HX)

93440-07149-00

$6.23

6

PIN, DOWEL(3XW)

91808-16023-00

$5.26

7

BOLT, WASHER BASED

90105-06027-00

$5.80

8

PLUG, STRAIGHT SCREW

90340-12007-00

$5.81

9

BOLT, FLANGE

95022-06010-00

$5.08

10

GASKET 256113960000

90430-06014-00

Unavailable

11

BOLT, STUD

90116-06038-00

$2.37

12

BOLT, STUD

95612-08620-00

$5.81

13

NUT,FLANGE(J10)

95702-08500-00

$0.79

14

CR8E NGK SPLUG 4PK

CR8-E0000-00-00

$8.42

14

CR9E NGK SPLUG 4PK

CR9-E0000-00-00

$8.42

15

GASKET, CYLINDER HEAD 1

5NL-11181-00-00

Unavailable

16

BOLT, FLANGE

90105-09004-00

Unavailable

17

BOLT, WASHER BASED

90105-09002-00

Unavailable

18

WASHER, PLATE(1AA)

90201-096J9-00

Unavailable

19

COVER, CYLINDER HEAD 1

5NL-11191-30-00

Unavailable

20

PIPE, BREATHER 2

371-11167-01-00

Unavailable

21

PIPE, BREATHER 1

5XC-11166-00-00

Unavailable

22

CLIP

90467-140A4-00

Unavailable

23

BOLT, COVER HEAD

5UM-1119E-00-00

Unavailable

24

GASKET, HEAD COVER 1

5NL-11193-00-00

Unavailable

25

CYLINDER 1

5XC-11311-20-00

Unavailable

26

GASKET, CYLINDER

5NL-11351-00-00

Unavailable

27

NUT, FLANGE

95702-06500-00

Unavailable

28

PIN, DOWEL(4XL)

93612-16254-00

Unavailable

29

BOLT, FLANGE

95022-06035-00

Unavailable

30

RUBBER, MOUNT 1

5VY-1111G-00-00

Unavailable
