Description

Price

1

GEAR, PRIMARY DRIVE

5NL-16111-01-00

Unavailable

2

WASHER, LOCK

90215-20003-00

$8.49

3

NUT

90179-18001-00

$17.99

4

PRIMARY DRIVEN GEAR COMP.

5XC-16150-00-00

Unavailable

5

PLATE, THRUST 1

5NL-16154-00-00

$17.49

6

BOSS, CLUTCH

5NL-16371-31-00

Unavailable

7

PLATE, FRICTION

5XC-16321-00-00

$29.99

8

PLATE, CLUTCH 2

5NL-16325-20-00

$7.99

9

PLATE, PRESSURE 1

5HD-16351-00-00

$53.99

10

SPRING, COMPRESSION

90501-230A2-00

$7.49

11

SCREW, WITH WASHER(33M)

90159-06092-00

$9.49

12

PLATE, SEAT

5NL-16384-00-00

$18.49

13

SPRING, CLUTCH BOSS

5NL-16383-10-00

$86.99

14

PLATE, CLUTCH 2

5NL-16325-30-00

Unavailable

15

WASHER, LOCK(4KB)

90215-16289-00

$9.49

16

NUT, HEXAGON (30X)

90170-16326-00

Unavailable

17

ROD, PUSH 1

1SM-16356-00-00

Unavailable

18

BEARING, THRUST(3AY)

93340-21008-00

Unavailable

19

WASHER, PLATE (24Y)

90201-080H1-00

Unavailable

20

CIRCLIP

93440-07182-00

Unavailable

21

BALL (498)

93511-32027-00

Unavailable

22

ROD, PUSH 2

5NL-16357-11-00

Unavailable

23

PUSH LEVER COMP.

5JG-16381-10-00

Unavailable

24

BEARING

93317-11287-00

Unavailable

25

OIL SEAL (4G0)

93102-12224-00

Unavailable

26

PLATE, SEAT

4JT-16384-00-00

Unavailable

27

BOLT, FLANGE

95022-06010-00

Unavailable

28

CLUTCH PARTS KIT

5XC-W001G-10-00

Unavailable

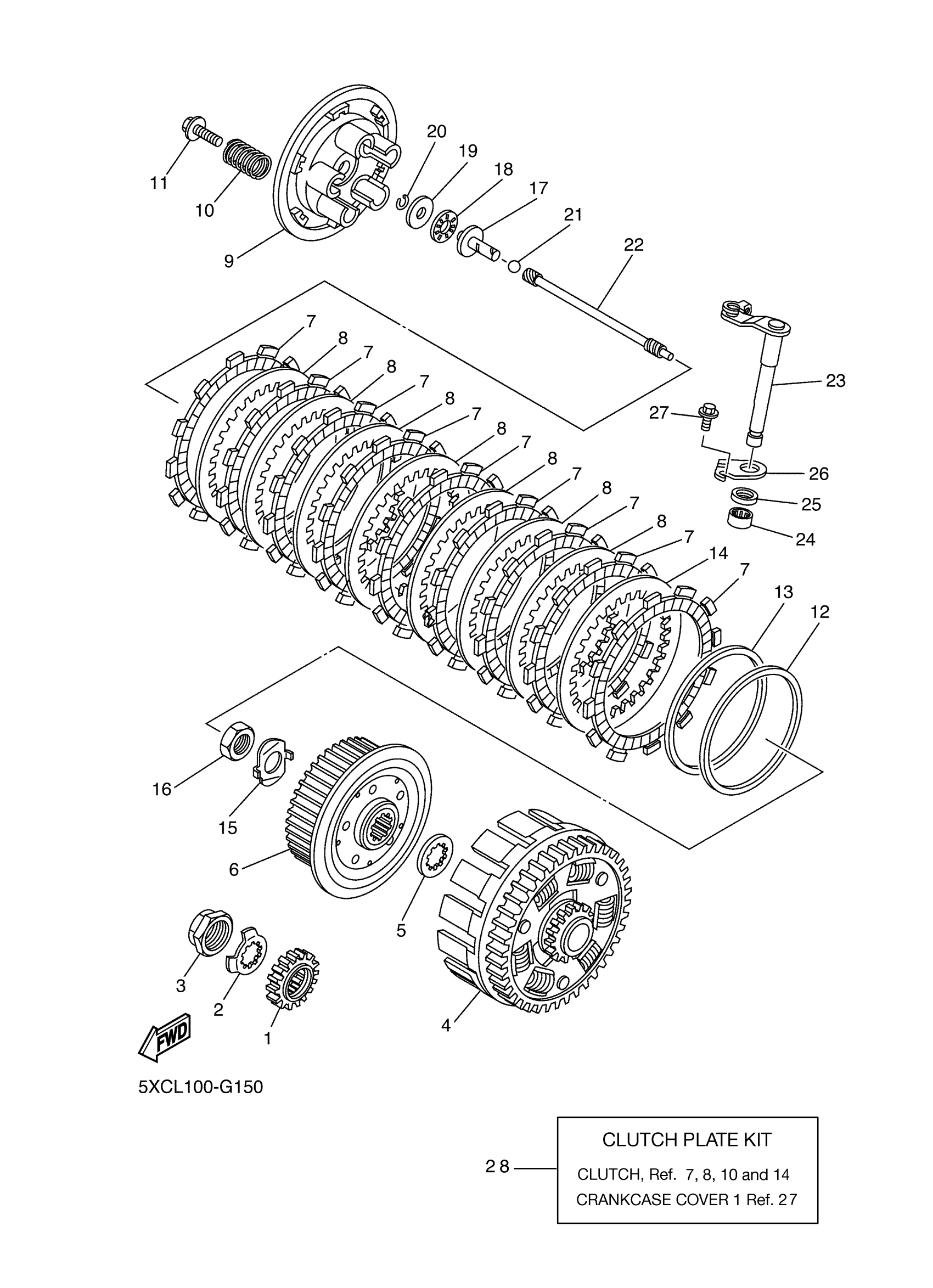

Yamaha YZ250FXW (YZ250F) 5XCL0 2008 CLUTCH Diagram

GEAR, PRIMARY DRIVE

WASHER, LOCK

NUT

PRIMARY DRIVEN GEAR COMP.

PLATE, THRUST 1

BOSS, CLUTCH

PLATE, FRICTION

PLATE, CLUTCH 2

PLATE, PRESSURE 1

SPRING, COMPRESSION

SCREW, WITH WASHER(33M)

PLATE, SEAT

SPRING, CLUTCH BOSS

PLATE, CLUTCH 2

WASHER, LOCK(4KB)

NUT, HEXAGON (30X)

ROD, PUSH 1

BEARING, THRUST(3AY)

WASHER, PLATE (24Y)

CIRCLIP

BALL (498)

ROD, PUSH 2

PUSH LEVER COMP.

BEARING

OIL SEAL (4G0)

PLATE, SEAT

BOLT, FLANGE

CLUTCH PARTS KIT
