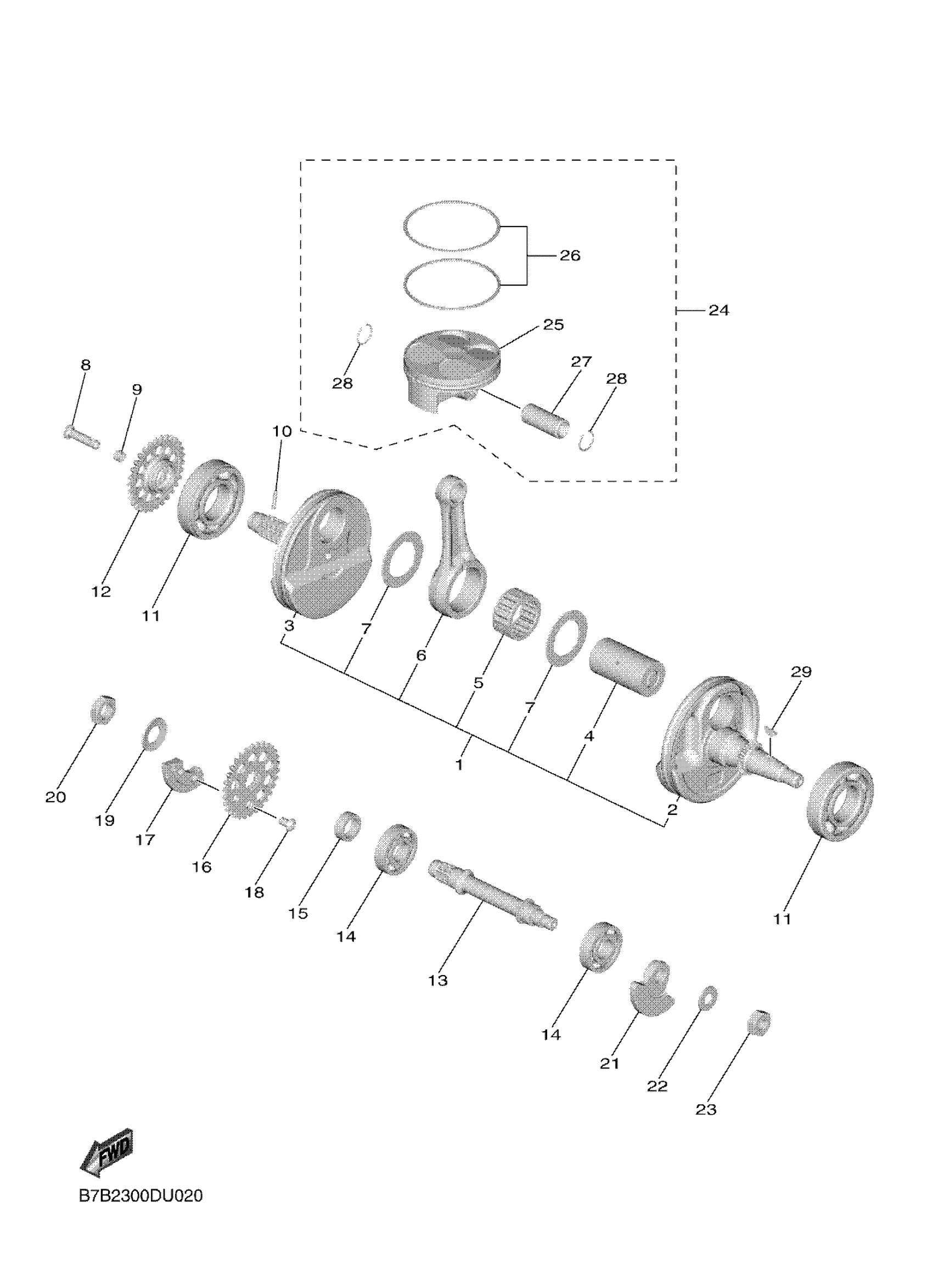

Yamaha YZ250FXT (YZ250FX) DP31 2026 CRANKSHAFT & PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

BMF-11400-00-00

$609.99

2

CRANK 1

BMF-11412-00-00

Unavailable

3

CRANK 2

B7B-11422-02-00

Unavailable

4

PIN, CRANK 1

1SM-11681-00-00

$66.99

5

BEARING

93310-63097-00

$103.99

6

ROD, CONNECTING

1SM-11651-20-00

$144.99

7

WASHER

90209-30011-00

$36.99

8

PIN, CLEVIS(30X)

90240-07105-00

$16.99

9

SPRING, COMPRESSION

90501-070A2-00

$2.17

10

PIN, DOWEL (5H0)

93602-13177-00

$3.76

11

BEARING

93306-20648-00

$91.99

12

GEAR, DRIVE

1SM-11536-00-00

$110.99

13

SHAFT 1

1SM-11455-10-00

Unavailable

14

BEARING

93306-20351-00

$38.99

15

COLLAR

90387-175R2-00

Unavailable

16

GEAR, BALANCE WEIGHT

1SM-11531-00-00

Unavailable

17

WEIGHT 1

1SM-11454-00-00

Unavailable

18

SCREW

90149-06084-00

Unavailable

19

WASHER, CONICAL SPRING

90208-14033-00

Unavailable

20

NUT, HEXAGON

90170-14171-00

Unavailable

21

WEIGHT 2

1SM-11464-00-00

Unavailable

22

WASHER, CONICAL SPRING

90208-10001-00

Unavailable

23

NUT

90170-10012-00

Unavailable

24

PISTON ASSY

B7B-116A0-20-00

Unavailable

25

PISTON (STD)

B7B-11631-00-00

Unavailable

26

PISTON RING SET (STD)

1SM-11603-01-00

Unavailable

27

PIN, PISTON

1SM-11633-30-00

Unavailable

28

CIRCLIP(1AR)

93450-17129-00

Unavailable

29

KEY, WOODRUFF

90280-03006-00

Unavailable
