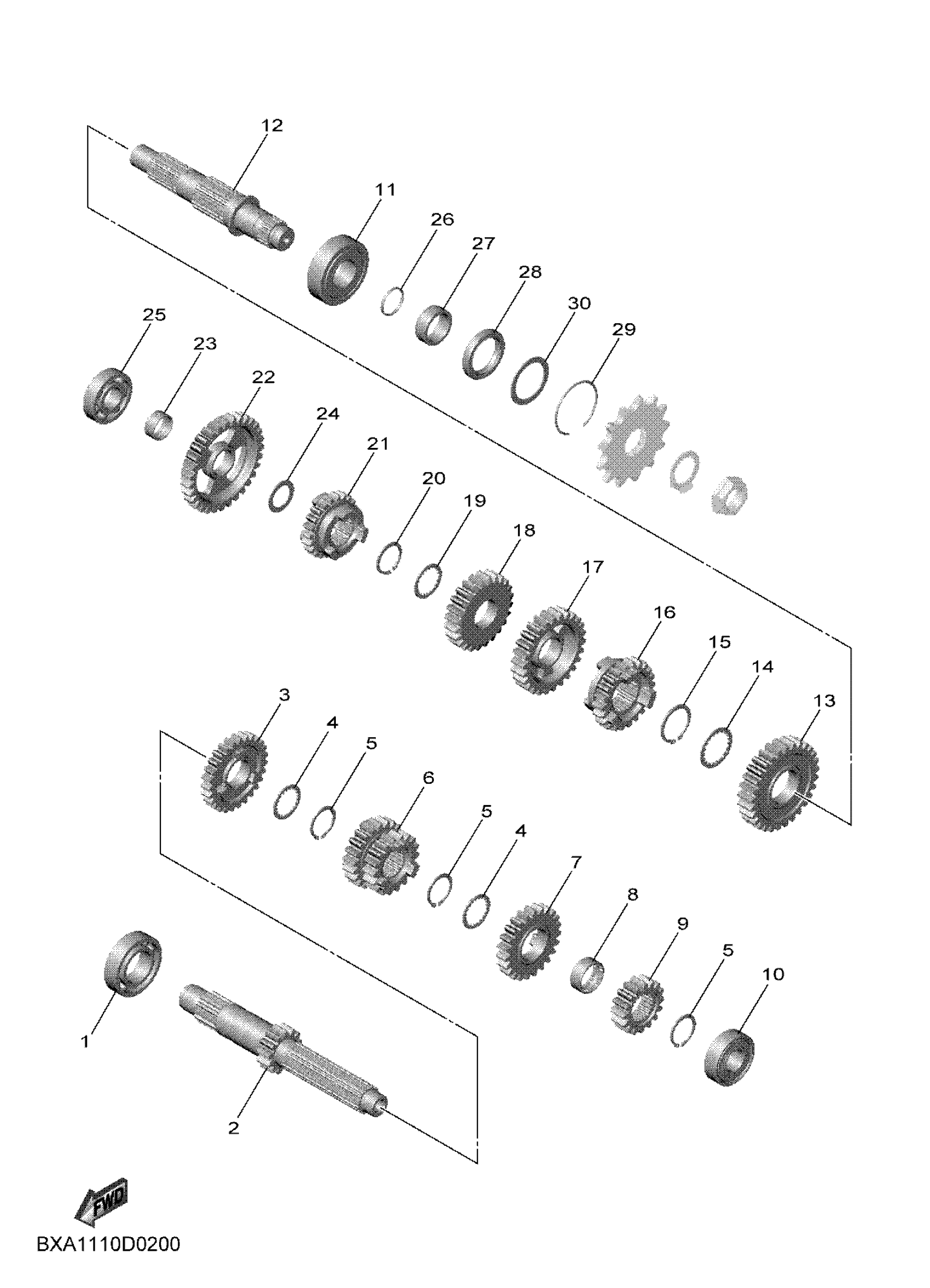

Yamaha YZ250FXS (YZ250FX) BXA1 2025 TRANSMISSION Diagram

#

Description
Price

1

BEARING

93306-00525-00

$23.99

2

AXLE, MAIN

BAJ-17411-00-00

Unavailable

3

GEAR, 6TH PINION

BAJ-17161-10-00

$96.99

4

WASHER

90209-20008-00

$11.49

5

CIRCLIP (537)

93410-22039-00

$8.49

6

GEAR, 3RD PINION

BAJ-17131-10-00

$242.99

7

GEAR, 5TH PINION

BAJ-17151-10-00

Unavailable

8

COLLAR

90387-20006-00

$31.99

9

GEAR, 2ND PINION

BAJ-17121-00-00

Unavailable

10

BEARING(50M)

93306-20336-00

$32.99

11

BEARING

93306-27209-00

$76.99

12

DRIVE AXLE ASSY.,2

BAJ-1742A-00-00

Unavailable

13

GEAR, 2ND WHEEL

BAJ-17221-00-00

$121.99

14

WASHER

90209-23012-00

$5.60

15

CIRCLIP (30X)

93410-26067-00

$8.49

16

GEAR, 5TH WHEEL

BAJ-17251-10-00

Unavailable

17

GEAR, 3RD WHEEL

BAJ-17231-00-00

Unavailable

18

GEAR, 4TH WHEEL

BAJ-17241-00-00

Unavailable

19

WASHER

90209-20008-00

$11.49

20

CIRCLIP (537)

93410-22039-00

$8.49

21

GEAR, 6TH WHEEL

BAJ-17261-10-00

Unavailable

22

GEAR, 1ST WHEEL

BAJ-17211-00-00

Unavailable

23

COLLAR

90387-17012-00

Unavailable

24

WASHER, PLATE (30X)

90201-177G4-00

Unavailable

25

BEARING

93306-20351-00

Unavailable

26

O-RING

93210-196A4-00

Unavailable

27

COLLAR

90387-22036-00

Unavailable

28

OIL SEAL

93102-28012-00

Unavailable

29

CIRCLIP

93450-40N50-00

Unavailable

30

WASHER, PLATE

90201-29M00-00

Unavailable
