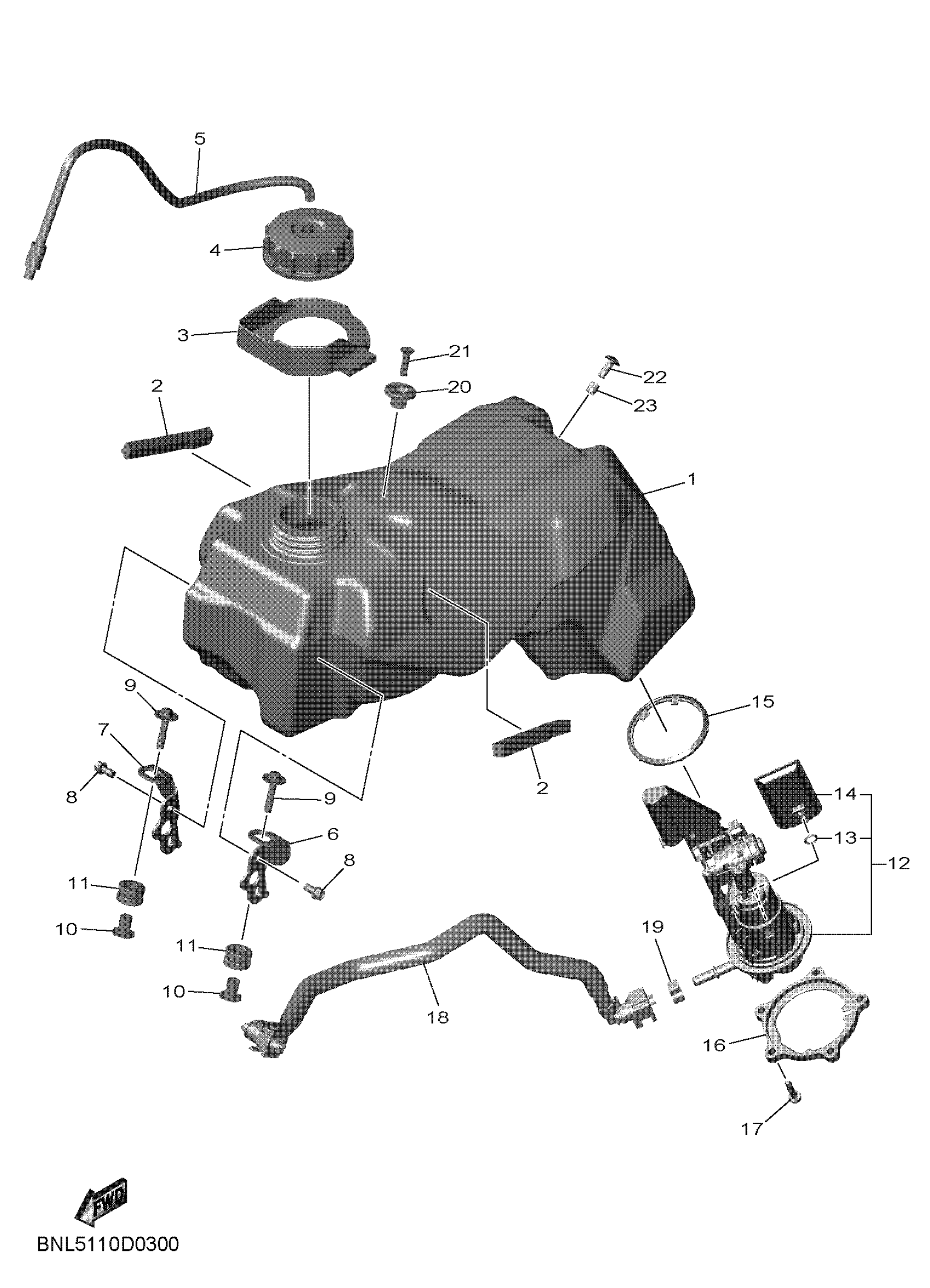

Yamaha YZ250FXS (YZ250FX) BXA1 2025 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

BNL-24110-00-00

$652.99

2

DAMPER, PLATE

90520-10045-00

Unavailable

3

MOLD, FUEL TANK

BNK-24188-00-00

$48.77

4

CAP ASSY

BR9-24610-00-00

$61.59

5

HOSE

90445-08050-00

$7.08

6

STAY, FUEL TANK 1

BNK-24115-00-00

$14.05

7

STAY, FUEL TANK 2

BNK-24116-00-00

$14.52

8

BOLT, FLANGE DEEP RECESS

95E32-06012-00

$0.86

9

BOLT, WITH WASHER

90119-06262-00

$5.86

10

COLLAR

90387-06136-00

$5.30

11

GROMMET

90480-14038-00

$13.41

12

FUEL PUMP COMP.

BNK-13907-00-00

$562.99

13

GASKET

3C1-24512-00-00

$23.00

14

FILTER

B3J-13915-00-00

$24.20

15

SEAL

B3J-2414G-00-00

$14.85

16

BRACKET, FUEL PUMP

B3J-24491-00-00

Unavailable

17

BOLT, HEXAGON SOCKET HEAD

90110-05058-00

Unavailable

18

PIPE, FUEL 1

BNK-13971-00-00

Unavailable

19

CLAMP 1

33D-24135-00-00

Unavailable

20

BRACKET, SEAT

4EW-2412F-00-00

Unavailable

21

SCREW, CROSSRECESS (8G6)

90151-06005-00

Unavailable

22

SCREW

90149-06021-00

Unavailable

23

COLLAR

90387-06284-00

Unavailable
