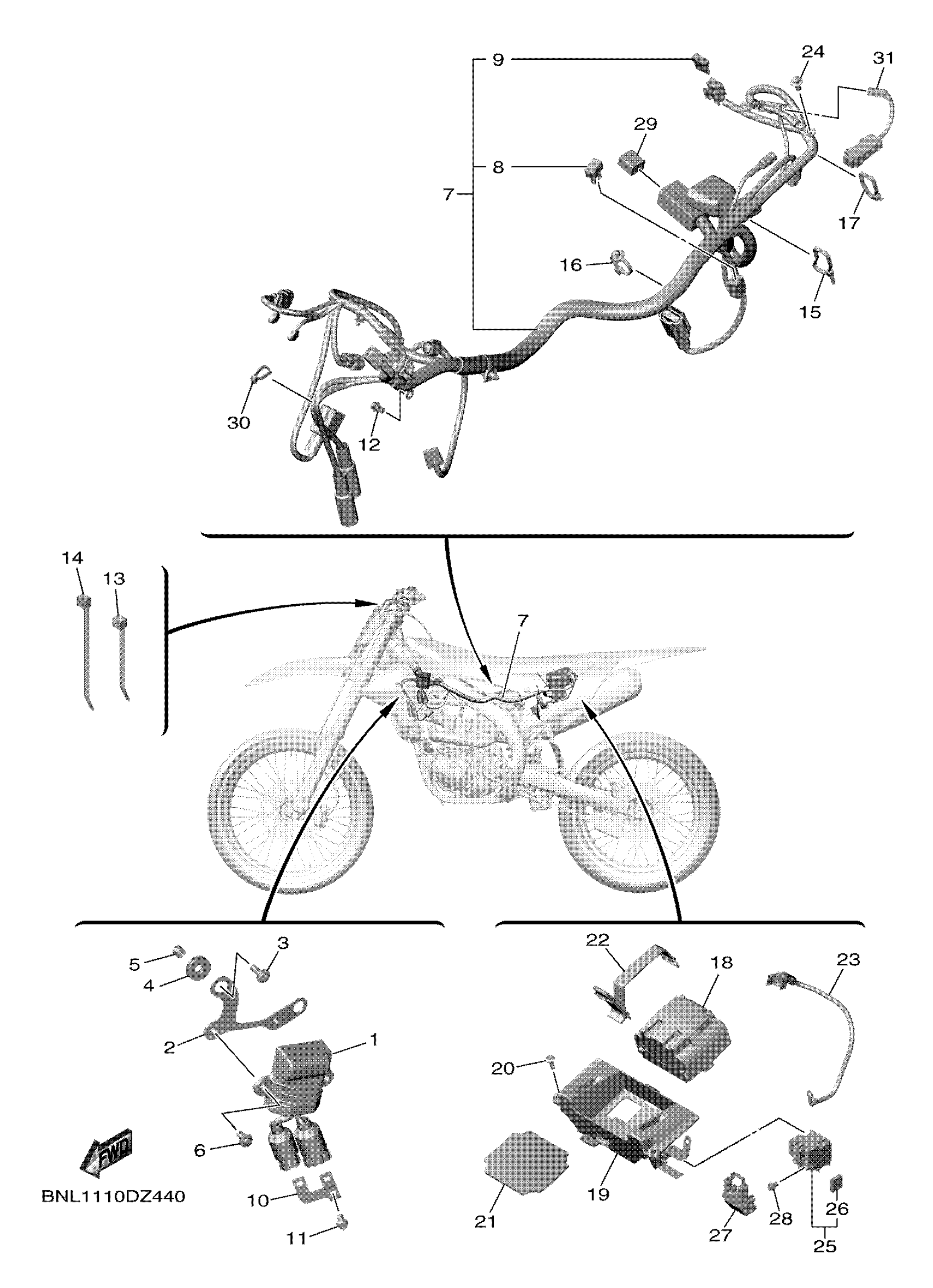

Yamaha YZ250FXS (YZ250FX) BXA1 2025 ELECTRICAL 2 Diagram

#

Description
Price

1

RECTIFIER & REGULATOR ASSY

B7B-81960-00-00

$156.99

2

BRACKET, REGULATOR

BHR-21287-00-00

$26.99

3

BOLT, FLANGE

90105-06219-00

$2.12

4

GROMMET (4L0)

90480-19283-00

$8.49

5

COLLAR (8H6)

90387-07573-00

$9.49

6

BOLT, FLANGE

90105-06064-00

Unavailable

7

WIRE HARNESS ASSY

BXA-82590-00-00

$333.99

8

DIODE ASSY

4WA-81980-00-00

$29.99

9

FUSE (5A-LP BL)

1CB-82151-00-00

$2.65

10

PLATE

1SL-82388-00-00

$4.06

11

BOLT, FLANGE

90105-06110-00

$8.49

12

BOLT, FLANGE DEEP RECESS

95E32-06010-00

$0.91

13

CLAMP

90464-13077-00

$8.49

14

CLAMP(4FM)

90464-15195-00

$4.41

15

CLAMP

90465-13M18-00

Unavailable

16

CLAMP

90464-31002-00

Unavailable

17

BAND

1UA-82591-00-00

Unavailable

18

BATTERY ASSY (TPTAQ 4S1P)

BR9-82100-A9-00

Unavailable

19

BRACKET, BATTERY

BNK-82128-00-00

Unavailable

20

BOLT, FLANGE

90105-06203-00

Unavailable

21

DAMPER

BR9-82176-00-00

Unavailable

22

BAND, BATTERY

BHR-82131-00-00

Unavailable

23

WIRE, PLUS LEAD

BHR-82115-00-00

Unavailable

24

BOLT, FLANGE

90105-06064-00

Unavailable

25

STARTER RELAY ASSY

2GB-81940-00-00

Unavailable

26

FUSE (12V 15A)

36Y-82151-00-00

Unavailable

27

COVER, LEAD WIRE

5SL-82119-10-00

Unavailable

28

BOLT, FLANGE

95022-06008-00

Unavailable

29

RELAY ASSY (5UM-E0)

5UM-81950-E0-00

Unavailable

30

CLAMP

90465-10098-00

Unavailable

31

RESISTOR ASSY

1DX-82718-00-00

Unavailable
