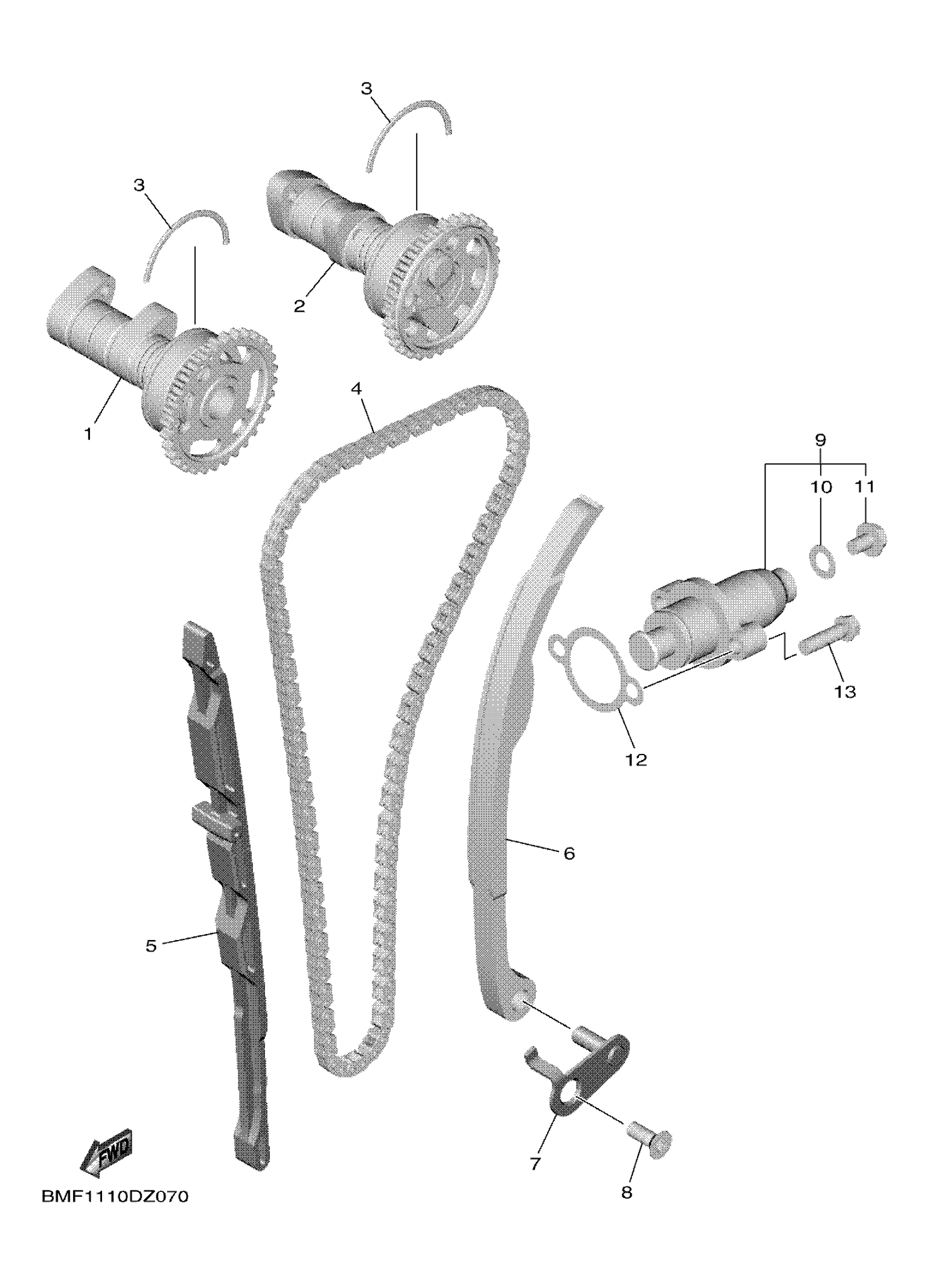

Yamaha YZ250FXS (YZ250FX) BXA1 2025 CAMSHAFT & CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

BMF-12170-00-00

$334.78

2

CAMSHAFT ASSY 2

BMF-12180-00-00

$347.29

3

CIRCLIP

93440-41178-00

$4.30

4

CHAIN

94591-80114-00

$44.07

5

DAMPER, CHAIN 1

BMF-12251-00-00

$20.09

6

DAMPER, CHAIN 2

BMF-12252-00-00

$135.34

7

PLATE, GUIDE STOPPER 1

BMF-12233-00-00

$23.44

8

SCREW, COUNTERSUNK

90151-06023-00

$6.09

9

TENSIONER ASSY, CAM CHAIN

B7B-12210-21-00

$116.66

10

GASKET

5SL-12214-00-00

$5.96

11

BOLT

5EL-12228-00-00

$2.52

12

GASKET, TENSIONER CASE

4FM-12213-00-00

$7.24

13

BOLT, FLANGE DEEP RECESS

95E32-06025-00

$0.46
